A loose keypad can feel correct and still bind after the housing screws are tightened. The relevant design unit is therefore the installed stack—not the molded rubber part by itself. Teams specifying silicone keypad assemblies should release the housing, bezel, keypad, PCB, support, hard stops, and retention features against one datum scheme. This article shows how to make those decisions and where testing must replace handbook assumptions.

---

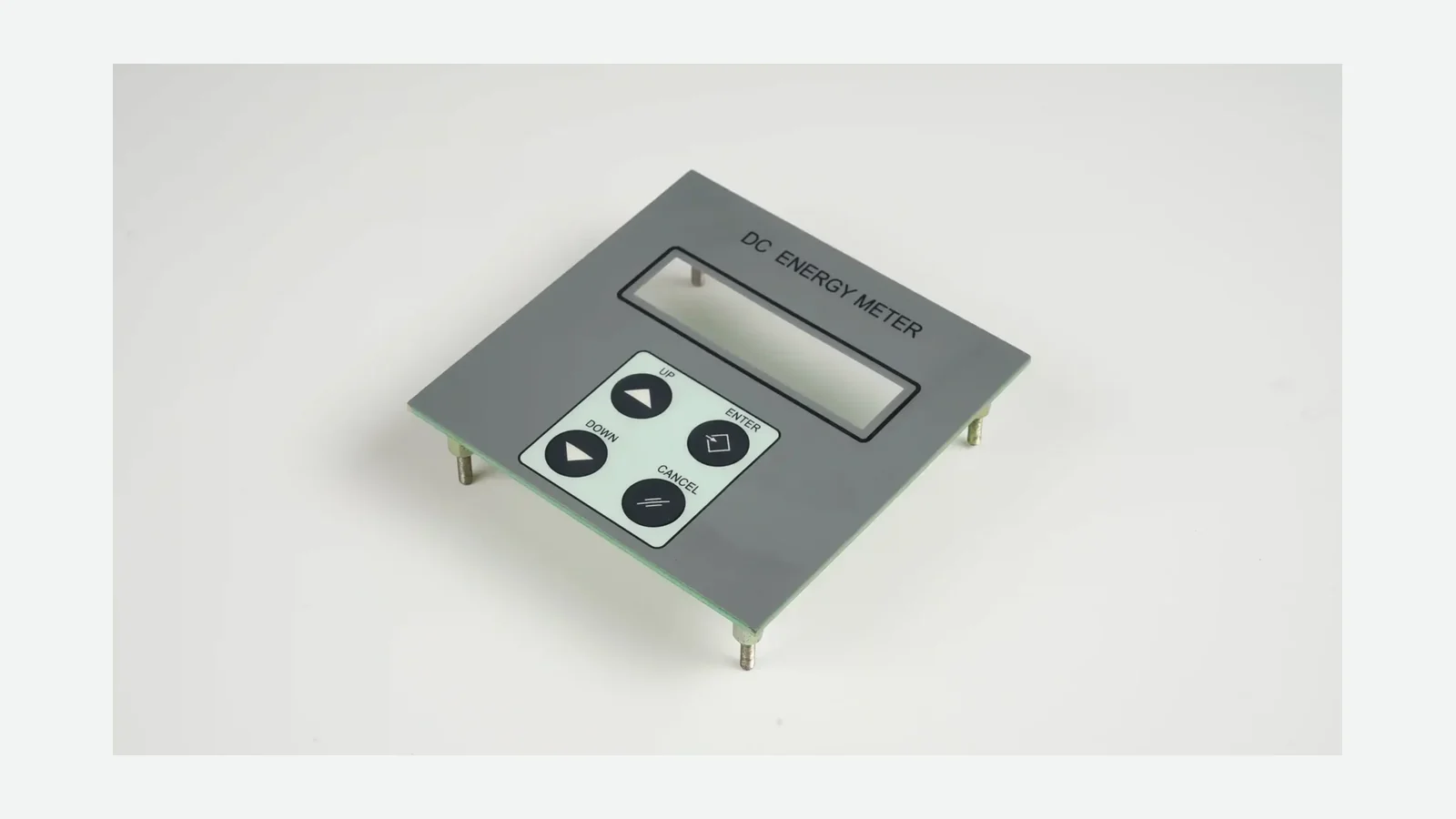

Define the installed stack before assigning dimensions

A silicone keypad assembly is a constrained mechanical system in which a molded elastomer transfers finger force to a contact or actuator while the enclosure locates, supports, and retains the parts. The assembly may include a conductive pill over PCB electrodes, a silicone actuator over a metal dome, or a molded key over another switch. In every case, the installed geometry controls the result.

The bezel is not merely cosmetic trim. J.W. Electronic Components defines it as the faceplate or cover that secures the keypad to the PCB, aligns it during final assembly, and protects the keypad base. The bezel opening, lower land, housing fasteners, and PCB support can therefore alter key clearance, flange squeeze, contact gap, and return behavior at the same time.

Installed stack diagram

USER SIDE

       key-to-bezel clearance, checked at X/Y tolerance extremes
                <------->
      ┌────────── BEZEL / FRONT HOUSING ──────────┐
      │  opening      keytop       opening         │
      │     ┌──────────┴──────────┐                │
      └─────┤ controlled land / stop ├────────────┘
            │  perimeter flange or rib │  ← compression zone
      ──────┴──────── silicone base ────┴─────────
               \        key web        /
                \____ conductive pill_/
                         ↑
                  contact travel / gap
      ═════════ PCB electrodes and support ═══════
              bosses / pull-throughs / adhesive
      ───────── carrier or rear housing ──────────
                screws, clips, or hard stops

ENCLOSURE SIDE

The drawing needs at least three different gaps:

Combining these into a single “key height” dimension hides the mechanisms that produce binding, pre-contact, weak tactile response, or loss of sealing load.

The same rule applies to an integrated silicone keypad HMI assembly: the supplied module boundary may change, but the installed datum path still has to reach the mating enclosure.

---

Why nominally correct parts fail after installation

Most assembly faults begin with a local tolerance condition, not an obviously defective part. A keypad may pass visual inspection, a PCB may meet thickness tolerance, and the enclosure may close. Yet the stack can fail because the high flange meets the low cavity near one screw, the PCB bows below a long key, or a locating boss drags the mat sideways as it enters a hole.

N&H Technology distinguishes actuation force F1, contact force F2, return force F3, and over-stroke force F4. A higher snap ratio can reduce restoring force and contribute to jamming. That relationship explains why “sharper click” and “more compression” are not independent improvements. Installation can move the force curve even when the molded web has not changed.

A late tooling correction may touch both rubber and enclosure tools. The lower-cost action is to expose the stack conflict before keypad tooling is frozen: use one section drawing, one tolerance worksheet, and one installed acceptance fixture.

---

Nine decisions in silicone keypad assembly design

A useful release review asks nine questions. Each question has a positive engineering signal and a failure warning; none can be closed by a material name alone.

1. Which features own the installed datum path?

Start with functional datums rather than the visible outline. Datum A normally establishes the seating plane. Datums B and C control in-plane position and rotation. The exact features differ by project, but housing, bezel, keypad, PCB, and carrier must refer back to a compatible scheme.

Silicone edges are poor precision locators when they are long, soft, or affected by molding shrink. SiTech reports approximately 2–3% shrink as a process expectation in its liquid silicone guide and references ISO 3302-style tolerances. ISO 3302-1:2014 supplies dimensional-tolerance classes for solid-rubber products, but it does not make the complete housing-to-PCB stack self-aligning.

Good signal: The assembly drawing identifies A/B/C datums, shows which part establishes each datum, and specifies clearance for non-locating rubber edges.

Red flag: The keypad is “centered in opening,” the PCB is “centered in housing,” and no positional tolerance connects those two instructions.

2. Where is rubber keypad compression allowed?

Rubber keypad compression belongs in a deliberate perimeter flange, rib, or sealing land. It should not be created accidentally through a key web, conductive pill, LED window, or unsupported base. A controlled hard stop limits cavity closure; the elastomer should not be the only feature preventing further screw or clip travel.

SiTech describes a perimeter rib that compresses against the front bezel. Mekoprint distinguishes a compressed sealing lip from molded-gasket and adhesive approaches. Compression is a controlled geometry, not merely a percentage. Rib width, flange thickness, surface finish, corner radii, local support, and material behavior all affect the load distribution.

Good signal: The drawing names the compression zone, nominal squeeze, minimum and maximum installed squeeze, opposing support, hard-stop height, and required validation condition.

Red flag: The instruction says “compress for seal,” “tight fit,” or “clamp firmly,” with no closed cavity, material condition, or tolerance calculation.

3. What must the keypad bezel design support—and clear?

Keypad bezel design has two jobs that must not collide: support the base at intended lands and clear moving key features across tolerance. A narrow land may print into soft rubber. A broad land may overlap a web. A flexible bezel may bow between fasteners and produce higher compression near screws than at mid-span.

SiTech and Jin Weitai each publish at least 0.012 in (0.305 mm) between a key and bezel as a supplier starting point. That number is useful for concept review, not an automatic drawing value. The final clearance must include molded key position, bezel-opening position, assembly datum shift, key tilt, coating or paint build, thermal movement, and any intended lateral motion.

Mekoprint suggests approximately 1 mm silicone support walls where small keypad regions are not supported by the housing or PCB. Such walls can improve stability, but their height and location need review because an unintended tall wall can become a compression stop.

Good signal: CAD interference checks cover maximum-material key and minimum opening, with tilted/pressed positions and coating build included.

Red flag: Nominal CAD shows a visible gap, but no worst-case calculation checks a shifted boss pattern or bowed bezel.

4. What establishes the PCB contact gap and over-travel?

The contact gap is the unpressed vertical distance between the conductive pill or silicone actuator and its target. J.W. defines stroke as the distance from the rubber contact surface to the PCB electrode. Epec publishes 0.8–1.5 mm as a general travel range, while N&H shows much wider ranges across different web types. These values describe supplier design envelopes, not a reason to choose a gap without a force/travel target.

PCB thickness alone should not establish the gap. Board bow, solder-mask or finish, dome height, carrier thickness, adhesive/spacer thickness, support-rib height, and enclosure closure can all move the target. A key also needs enough controlled over-travel to close reliably without forcing the PCB or web beyond its approved state.

Good signal: The released section controls pill/actuator height, PCB target plane, S2 contact stroke, S4 electrical over-travel, local PCB support, and hard-stop relationship.

Red flag: Contact is verified on a loose PCB, while the enclosure uses the PCB itself as a spring or pulls it toward the keypad with screws.

For the electrode side of this interface, keep detailed land geometry on the PCB contact pattern design for conductive rubber keypads route rather than duplicating it here.

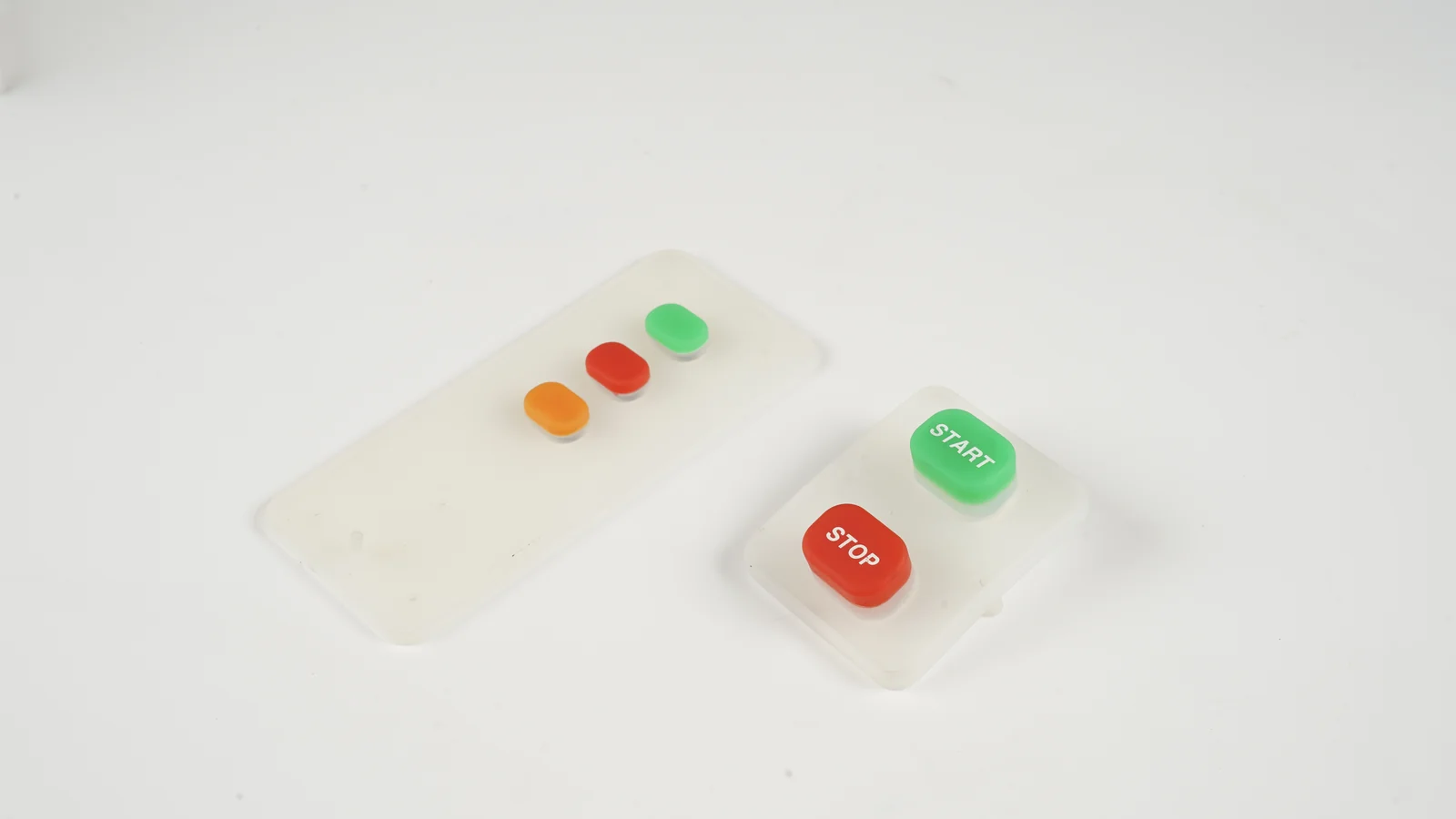

5. Which silicone keypad retention method matches the load and service plan?

Silicone keypad retention can use bezel capture, molded bosses, pull-throughs, snap features, wrap-around lips, adhesive, a rigid carrier, or a combination. Selection depends on the force direction, required registration, installation access, sealing boundary, replaceability, and acceptable hole/edge use on the PCB.

N&H illustrates wrap-around, pull-through, pull-snap, push-through, and push-snap forms. J.W. gives boss examples with 0.2–0.3 mm interference for press styles, and snap examples whose neck may be 0.2 mm smaller than the PCB hole with a retaining head 0.8–1.0 mm larger. These dimensions cannot be mixed across boss styles. Release angle, tear risk, PCB-hole tolerance, insertion force, molding access, and removal method decide the detail.

Good signal: Each feature has one named primary function—locate, retain, compress, stop, or seal—and installation/removal is demonstrated on the real board.

Red flag: A small silicone boss is expected to position the keypad, clamp the flange, seal its hole, and survive repeated service without separate evidence.

6. Has the team calculated the full tolerance and material-behavior window?

A closed stack requires rigid-part tolerances, molded-rubber tolerances, flatness, local deflection, thermal movement, and long-duration elastomer behavior. Nominal arithmetic gives only the center of the problem. The release question is whether the minimum and maximum installed states both function.

ASTM D395-18(2025) defines compression-set methods A, B, and C; Method B is the default unless a detailed specification says otherwise. ISO 815-1:2019 provides another compression-set framework at ambient or elevated temperatures. A compression-set percentage is not service life. Method, temperature, duration, deflection/strain, specimen condition, post-cure, and recovery time must match before two values can be compared.

Good signal: The tolerance worksheet carries source, class, and condition for every input, while an installed test checks the calculated extremes.

Red flag: A catalog value such as “20% compression set” appears without ASTM/ISO method, hours, temperature, strain, post-cure, or specimen geometry.

Detailed material selection belongs on the silicone keypad hardness and compression-set guide; this article uses those values only to protect the assembly stack.

7. Where does displaced air go?

Every collapsing rubber key displaces air. J.W. recommends venting on at least two sides, while SiTech defines air channels as bottom-side paths that let air escape during actuation. A blocked vent changes force, slows return, and can let neighboring keys interact through a trapped cavity.

Venting and enclosure sealing are separate boundaries. A channel under the keypad may be necessary for key motion yet unacceptable as an uncontrolled path into electronics. The design can route key cavities into a protected internal volume, use defined partitions, or adopt another project-specific approach. IEC 60529 classifies protection provided by complete enclosures; it does not grant an IP code to a molded lip or keypad by itself.

Good signal: The section drawing shows every vent path, adhesive-free channel, cavity connection, and protected termination.

Red flag: Adhesive or a bezel land crosses a vent, or a team assumes that removing all vents improves ingress protection without testing key return.

The full enclosure boundary should be resolved on the silicone keypad enclosure sealing route.

8. Can the keypad be installed and serviced without changing its geometry?

Assembly sequence is part of the design. A pull-through needs grip access and a defined pull direction. A snap head needs an insertion method that does not tear the neck. Adhesive needs clean surfaces, a liner-removal sequence, and a way to prevent trapped stretch. A wrap-around lip needs access to the PCB edge. Fasteners need a seating pattern that does not walk the mat sideways.

Service changes the acceptance problem. If replacement requires destroying adhesive or pulling retention features through the PCB again, the team must decide whether the keypad is a replaceable service item, part of a larger module, or not field-serviceable. That choice should be visible in the BOM, work instruction, and service document.

Good signal: A technician can follow a documented sequence, confirm datum seating, apply the controlled fastener order, and inspect the result after one replacement cycle.

Red flag: The prototype was hand-fitted by its designer, while production access, gloves, tools, cable routing, and replacement were never represented.

9. Which installed tests authorize release?

Installed evidence must match the shipped and used state. A molded-pad force curve is useful for process control, but the complete enclosure can move F1, F2, F3, S2, and S4. N&H recommends specifying F1 with tolerance, snap ratio with ±10% tolerance, minimum F3, and S2 with ±0.1 mm tolerance as drawing inputs. Those are supplier practices; the project still sets its own acceptance limits.

The minimum useful evidence set normally includes fit, visual condition, key-to-bezel clearance, installed force/travel, return, electrical operation, PCB support, fastener or clip seating, and reassembly behavior. Environmental testing is then selected from the product requirement rather than copied from another keypad.

Good signal: Assembly testing uses the actual enclosure or a dimensionally equivalent fixture, with acceptance criteria linked to released revisions.

Red flag: The supplier reports a loose-keypad life or force result, while the OEM approves the installed unit by subjective feel alone.

---

Calculate rubber keypad compression as a tolerance range

Rubber keypad compression should be released as a minimum-to-maximum window. Let T be the free flange or rib height and C the closed cavity height measured between the opposing hard surfaces. Installed squeeze is:

Squeeze = (T − C) / T × 100%

ASTM D395-18(2025) and ISO 815-1:2019 describe material compression-set tests; neither standard supplies a finished-keypad squeeze percentage. ISO 3302-1:2014 covers molded-rubber dimensional tolerances, while ASTM D2240-15(2021) identifies the hardness test method. These four entities belong in the input record because squeeze, recovery, molded dimension, and Shore A hardness describe different properties.

For a worst-case check:

• Minimum squeeze uses the minimum flange height and maximum cavity height.
• Maximum squeeze uses the maximum flange height and minimum cavity height.
• If the result is negative, the stack has clearance rather than compression.

Worked compression example for sample planning

Use a 2.00 mm nominal flange and 20% nominal squeeze for the first controlled stack comparison. The nominal closed cavity is 1.60 mm. This calculation creates a concrete sample condition; it is not a universal keypad rule. Release the final squeeze window only after the actual compound, flange or rib geometry, hard stops, surface finish, tolerances, and enclosure have passed installed testing.

Published supplier screening data include 20% compression set after 22 h at 175 degrees C for one silicone example and a broader 5-25% range for other formulations under the stated condition. Keep the method, time, temperature, strain, cure, specimen, and recovery state with every result. Compression set does not equal loss of seal, service interval, or expected life.

The example becomes useful only when tolerances are added. If Tmin is less than Cmax, one corner may lose contact. If Tmax and Cmin create excessive local squeeze, a bezel land can preload the web or bow the PCB. The acceptable window comes from installed performance, not from choosing a neat nominal percentage.

---

Choose retention without assigning one feature four jobs

Retention keeps the keypad in place during handling, assembly, operation, shock/vibration, and service. It does not automatically provide precise alignment, controlled compression, a hard stop, or an enclosure seal.

J.W.'s 0.2–0.3 mm boss-interference examples and 0.8–1.0 mm snap-head increments are geometry-specific. N&H's five retention forms likewise show alternatives, not interchangeable dimensions. The molder should review release angle, minimum neck section, tear risk, hole tolerance, and tool pull direction before the PCB is released.

A rigid carrier becomes valuable when the PCB cannot act as the load-bearing datum. It can carry screws, supports, hard stops, cable strain relief, and service features while the keypad handles actuation and sealing. The tradeoff is another tolerance loop. The carrier must still align to the enclosure and PCB rather than float as a separately centered part.

---

Release the stack in six engineering steps

Step 1 — Freeze functional inputs before cosmetic edges

Collect the enclosure section, bezel openings, PCB model, switch/contact type, key centers, force/travel targets, lighting, sealing boundary, cable path, and service expectation. Mark fixed features and negotiable ones. If the industrial-design surface is frozen, identify that constraint rather than silently spending all clearance around it.

Step 2 — Assign A/B/C datums and constraint directions

Create a datum table for each part. Decide which feature controls Z seating, which two features control X/Y and rotation, and where clearance absorbs variation. Avoid locating a large rubber mat from every hole or edge; redundant constraints can stretch or buckle it. N&H's stretching-joint concept may help large mats accommodate assembly variation, but it still needs a controlled datum path.

Step 3 — Separate the functional zones

Color-code the section drawing:

• Blue: moving key/web and contact-travel zone
• Green: compression/sealing land
• Orange: X/Y location and retention
• Red: rigid stop/support and fastener load path
• Gray: vent and contamination path

No feature should cross zones without an explicit reason. A boss inside a sealing land, for example, needs evidence for both retention strain and the local seal path.

Step 4 — Run worst-case sections at critical locations

Do not calculate one average stack. Run at least the four corners, the area beside each fastener or clip, the longest unsupported span, the largest key, any navigation rocker, the connector exit, and any opening or display edge. Include molded flange height, housing land height, PCB/carrier thickness, flatness, coating build, and local deflection.

Step 5 — Review manufacturability and production assembly

The keypad molder should review web, boss, undercut, vent, release angle, tear-plug, and molding direction. The PCB team should review holes, keepouts, support locations, electrodes, LEDs, and low components under the mat. The enclosure team should review land width, stops, clips/screws, tool access, and surface finish. Release the shared section only after all three views agree.

Step 6 — Approve an installed first article and controlled reassembly

Measure key position and clearance before actuation. Record installed force/travel and electrical function. Inspect local compression, PCB support, vent continuity, lighting if present, and fastener seating. Then remove and reinstall the designated service part once using the proposed instruction. Compare the same measurements; a reassembled unit is a separate state, not a visual footnote.

---

Validate the installed assembly against its real risks

A test plan should connect each mechanism to an observable acceptance criterion. Standards provide methods; the project requirement supplies severity, duration, sample count, operating state, and pass/fail limits.

Temperature and humidity can change more than rubber dimensions. Housing and PCB materials move too, coatings can affect clearance, and condensation control changes the test interpretation. IEC 60068-2-78:2025 covers high humidity at constant temperature without condensation; it is not interchangeable with every cyclic humidity exposure.

A production control plan may use fewer measurements than engineering validation, but the correlation must be demonstrated. For example, a molded-pad force check can control web molding only after installed force/travel has been shown to track it within the approved stack window.

---

When this assembly construction is not the best choice

A molded silicone keypad clamped over a PCB is not the default answer for every HMI. Choose another construction when its failure boundaries better match the product:

• Use a membrane switch when very low profile, sealed printed graphics, and a flat adhesive-mounted interface matter more than molded key travel.
• Use discrete mechanical switches with separate caps when each switch needs independent replacement, unusually high structural load, or a catalog-rated switching mechanism.
• Use a capacitive touch panel when a continuous wipe-clean surface and programmable interface outweigh operation with thick gloves, wet conditions, or the need for mechanical travel.
• Use a rigid keypad carrier or preassembled HMI module when the OEM enclosure cannot hold PCB gap, compression, and alignment reliably.
• Avoid a field-replaceable adhesive-retained mat when removal destroys the locating condition or risks PCB contamination.

The decision is especially important when the enclosure itself cannot provide a stable load path. More rubber compression will not correct a flexible bezel, missing PCB supports, or conflicting datums.

---

Drawing and project-input checklist

Send one package that lets mechanical, electrical, molding, and quality teams inspect the same installed condition.

The next practical step is to send the enclosure, PCB, and keypad stack together. Early models can be incomplete; uncertainty should be marked in the model or drawing instead of being converted into an unreviewed tolerance.

For the next approval phase, use the silicone keypad sample approval checklist. Detailed force-curve development belongs in the silicone keypad force, travel, and web-ratio guide.

---

Frequently asked questions

How much should a silicone keypad flange be compressed?

There is no universal percentage. Calculate minimum and maximum squeeze from the free flange/rib height and closed cavity at tolerance extremes, then validate the selected compound and geometry in the installed enclosure. Use the 20% worked condition only to organize the first controlled comparison; release the final squeeze window from installed testing.

Is 20% compression set acceptable for a rubber keypad?

Not enough information is present to decide. A published 20% supplier result after 22 h at 175 degrees C can screen one compound only when the complete method and project function match. ASTM D395 or ISO 815-1 method, strain, specimen, cure/conditioning, recovery time, and project function must match before the value can screen a compound; it does not predict service life.

What is the minimum clearance between a silicone key and its bezel?

SiTech and Jin Weitai each publish 0.012 in (0.305 mm) as a supplier starting point. The released clearance may need to be larger because molded key position, bezel-opening tolerance, datum shift, key tilt, coating build, and thermal movement add together. Check minimum clearance in the pressed and unpressed installed states.

Should the bezel clamp the entire silicone keypad base?

Not automatically. The bezel should load defined perimeter or support lands while clearing moving webs, contacts, light windows, and vent paths. Continuous full-area pressure can preload keys or trap air. A sectioned drawing should distinguish compression lands from moving regions and rigid hard stops.

Are molded bosses enough for silicone keypad retention?

Bosses can locate or retain a keypad, but they should not automatically be assigned sealing, compression control, and hard-stop functions too. Press, pull-through, snap, and wrap-around geometries have different PCB-hole, strain, tooling, and service requirements. The final boss needs molder review and installation testing on the actual PCB.

How is the keypad-to-PCB gap controlled?

Control it from a shared datum path through the keypad contact or actuator, PCB target plane, PCB support, carrier, and enclosure stops. Do not infer the gap from nominal key height. Record contact stroke, over-travel, board deflection, adhesive/spacer thickness where present, and installed force/travel.

Do silicone keypad retention bosses seal PCB holes?

Do not assume they do. A retention boss may reduce movement or fill a hole, but an enclosure protection claim requires a defined sealing boundary and a test of the complete configuration. IEC 60529 applies IP codes to enclosures, including every relevant seam, vent, connector path, and fastener condition.

Why does a keypad feel different after enclosure assembly?

The housing can compress the base, rub a key flank, bow the PCB, block a vent, shift the keypad on its bosses, or change the contact gap. Compare force/travel curves before and after installation, then inspect bezel lands, stops, support points, fastener sequence, and local tolerance extremes.

What files should be sent for a silicone keypad assembly review?

Send the enclosure and bezel models, PCB files, keypad concept, contact or actuator geometry, force/travel targets, environmental requirements, assembly/service sequence, and intended acceptance evidence. Include material, coating, flatness, hole, support, fastener, and tolerance information where known. Mark unknowns instead of filling them with assumed values.

Send the Installed Stack for Review

A reliable silicone keypad assembly design starts with one installed section and one datum path. The engineering team can then calculate compression extremes, assign retention, protect the PCB gap, and approve the real enclosure state.

Send the enclosure model, PCB, keypad stack, and operating conditions through the engineering review route.
