Capture the interface
Document users, gloves, cleaning, environment, key or sensing zones, display and LED windows, enclosure, mounting surface, electronics, connector, quantities, and regulatory constraints.
Engineering decisions before tooling
Custom Membrane Switch Design and DFM Support
A membrane switch drawing must connect the operator experience to a manufacturable stack. JASPER reviews key geometry, circuit routing, tail and connector, graphic overlay, tactile response, windows, lighting, adhesive, sealing, enclosure fit, materials, and inspection references before a sample is released.
- System contextThe switch is reviewed with the bezel, PCB, display, connector, and mounting surface
- Layer definitionOverlay, spacer, circuit, dome, backer, adhesive, and protection are identified
- Circuit and tailPinout, routing, tail exit, bend, stiffener, and connector boundaries are reviewed
- Release controlOpen assumptions are converted into drawing notes, samples, and approval records
Direct answer
A good membrane switch design removes ambiguity before it becomes tooling or scrap.
JASPER can support design-for-manufacturing review from a dimensioned concept, existing switch, artwork, circuit, or customer CAD package. The review does not replace the OEM's system engineering. It makes the component boundary explicit: what the switch must do, how it mates to the enclosure and electronics, which characteristics are critical, and which evidence will approve the first production-intent sample.
- Define the active area, key centers, windows, indicators, tail exit, connector, and keep-out zones from the enclosure datum.
- Separate subjective targets such as feel or appearance from measurable drawing requirements and approved physical references.
- Review sealing as an assembled edge, window, tail, adhesive, and enclosure problem rather than a film-only claim.
- Freeze artwork, circuit, materials, stack, revision, and sample purpose together before production release.
Four design gates from product intent to released component
The order matters because late changes to key position, connector, window, or enclosure can invalidate artwork, circuit routing, tooling, and inspection fixtures.
Build the stack and circuit
Propose materials, thicknesses, tactile or non-tactile construction, printed circuit, dome support, tail, stiffener, connector, adhesive pattern, vents, and protection.
Close DFM risks
Review trace spacing, registration, embossing, windows, dead-front graphics, light blocking, bend zones, adhesive lands, edge sealing, tolerances, and inspection access.
Release a sample baseline
Issue controlled drawings and artwork, identify representative materials and tooling, define approval questions, and record which sample and comments govern repeat production.
Design decisions that should not remain hidden in an email thread
The drawing package should state the controlling reference and the condition in which each decision is approved.
| Design area | Define before sampling | Common consequence if left open |
|---|---|---|
| Mechanical interface | Datums, outline, key and window positions, tail exit, bend radius, connector, adhesive land, enclosure support | Poor fit, pinched tail, edge lift, dome damage, window clipping, or assembly rework |
| Operator response | Tactile or non-tactile behavior, force reference, embossing, key size, support, gloves, audible or visual feedback | Inconsistent feel, accidental actuation, fatigue, inaccessible controls, or subjective rejection |
| Graphics and optics | Artwork layers, color reference, finish, opacity, dead-front state, display window, LED source, viewing condition | Color dispute, light leakage, ghost icons, unreadable display, or registration rejection |
| Circuit and environment | Schematic, pinout, trace load, ESD boundary, tail, connector, moisture path, cleaners, UV, temperature, target life | Open or short circuit, unstable contact, corrosion path, connector mismatch, or unsupported durability claim |
Design inputs
Send the files that define both the component and its surroundings
Mark unknown values instead of copying assumptions from another part. A useful review can begin with partial data when the open decisions are visible.
- 01Dimensioned drawing or sketch and available enclosure CAD
- 02Artwork, icon, color, finish, window, indicator, and dead-front requirements
- 03Circuit schematic, matrix, pinout, tail direction, connector, and mating electronics
- 04Target key behavior, tactile reference, lighting, display, or sensor interaction
- 05Mounting surface, adhesive area, environment, cleaners, moisture, UV, and temperature
- 06Prototype quantity, annual volume, schedule, compliance inputs, and approval owner
Membrane switch design questions
Can JASPER design from a sketch or an old sample?
Yes. A sketch, photographs, an existing part, enclosure dimensions, or partial CAD can start feasibility review. Final tooling still needs a controlled dimensional, artwork, circuit, connector, material, and approval package.
What is checked during membrane switch DFM review?
Typical checks cover layer stack, key geometry, trace routing, contacts, tail and connector, windows, lighting, graphics, embossing, adhesive, sealing paths, registration, tolerances, converting, assembly, inspection, and packaging.
Can key feel be specified only by a force number?
Force is one input, but key area, dome type, spacer, overlay, embossing, backing support, travel, enclosure, test method, and subjective reference can change the perceived response. Approve feel in the intended assembly.
When is the design ready for production tooling?
Release tooling after open dimensions, artwork, circuit, stack, connector, materials, sample purpose, critical characteristics, and approval responsibilities are recorded. Unresolved assumptions should be named, not hidden.

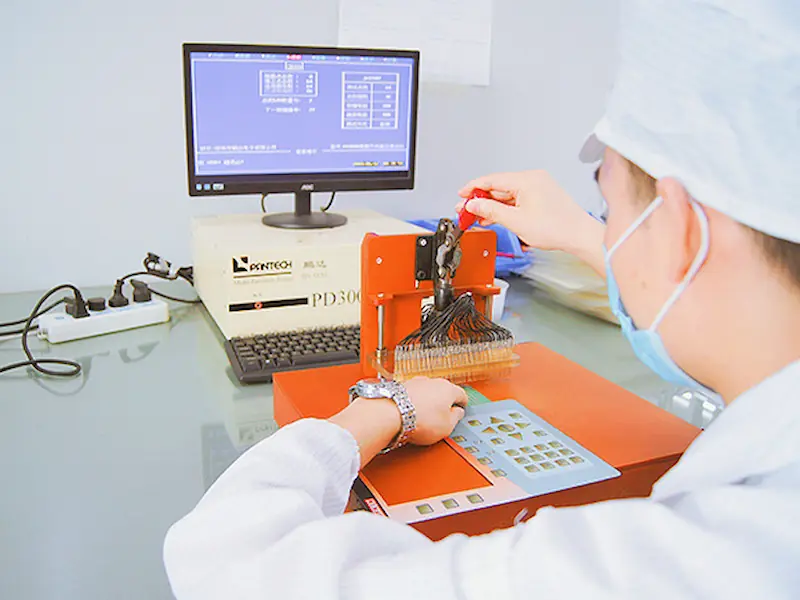

Resolve the expensive decisions while they are still drawing comments.
Send the current drawing, enclosure, artwork, circuit, quantities, and unresolved risks for a component-level DFM review before tooling.
