A custom HMI panel assembly combines the released operator front with the input device, display or window, PCB or FPC, internal interconnect, connector, carrier, gasket, mounting features, and agreed checks that your project assigns to one supplier. The scope ends at a written customer handoff, not at an assumed complete machine.
Choose the route by the input technology, display ownership, electronics boundary, mounting state, and evidence your team wants one supplier to release.

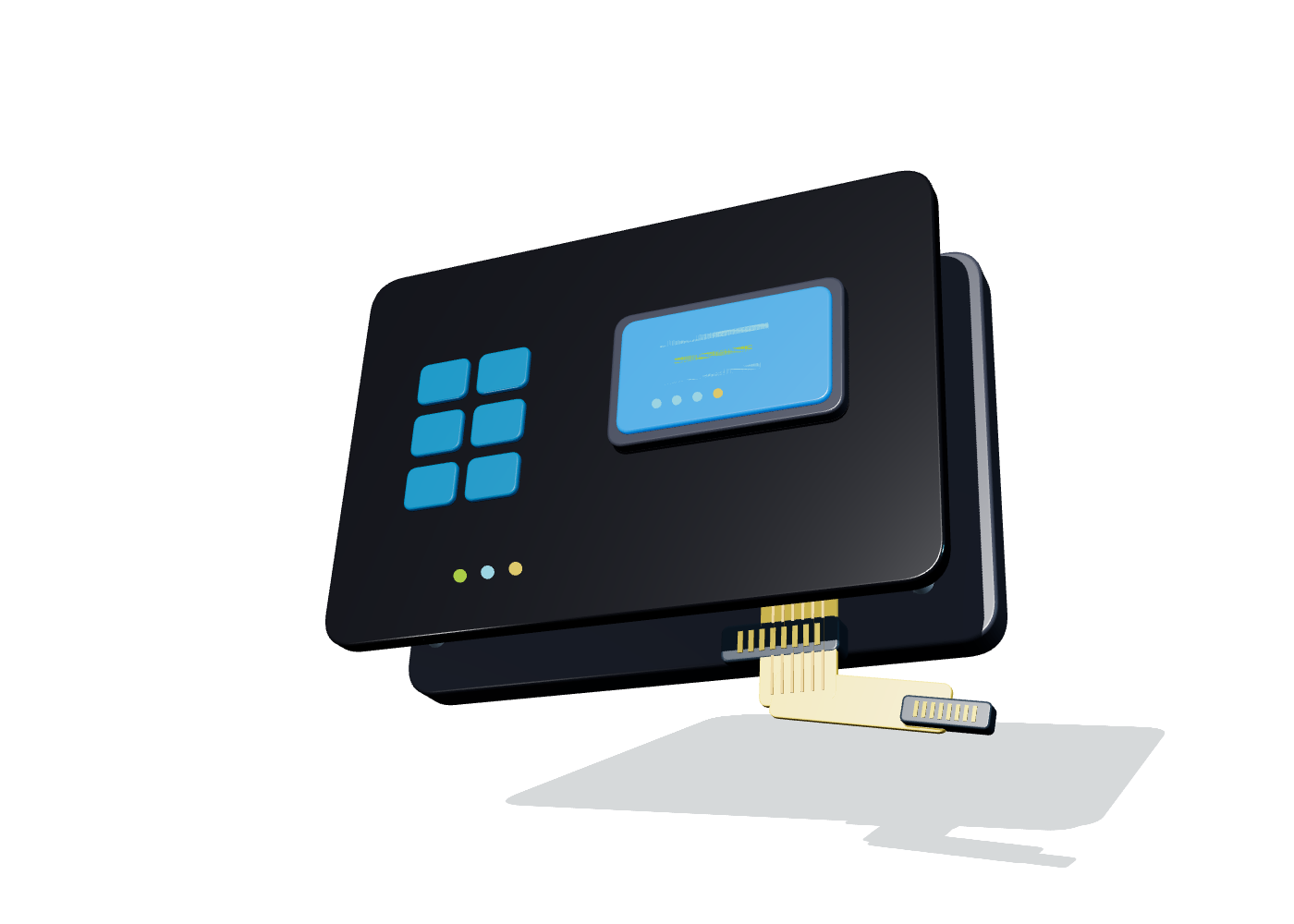

A laminated membrane control front assembled with the released circuit, indicators or display area, rear support, interconnect, and connector.
Choose it when: Choose it when a sealed low-profile input must arrive as a mounted operator module rather than a loose membrane switch.
View Membrane Switch HMI Assemblies

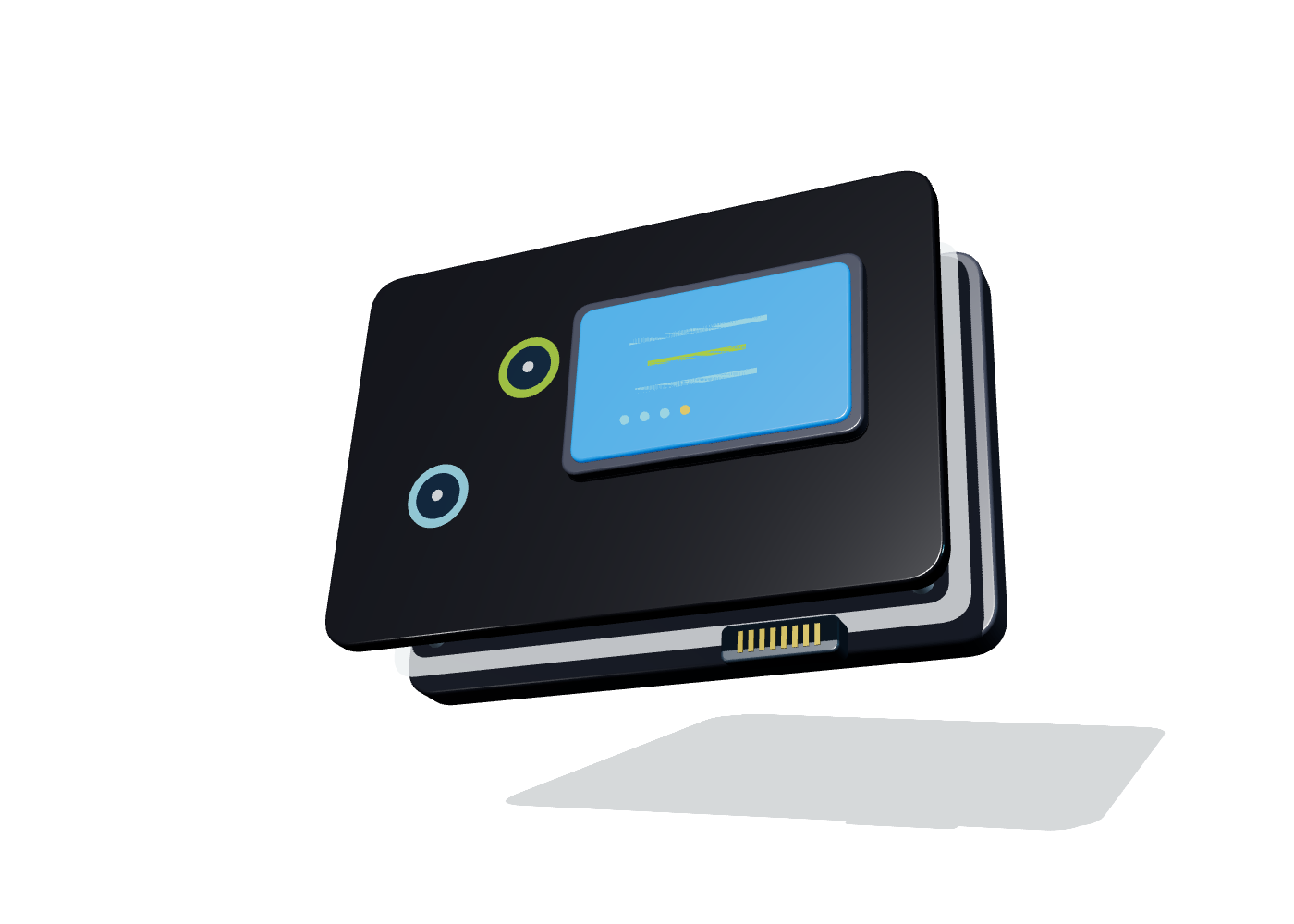

A capacitive operator front integrated with the named display, interface electronics, carrier, interconnect, connector, and assembly checks.
Choose it when: Choose it when the supply boundary must extend beyond the touch sensor and decorative front surface.
View Capacitive Touch HMI Assemblies
A raised-key operator interface combining molded silicone, PCB contacts, lighting or indicators, display area, carrier, and enclosure handoff.
Choose it when: Choose it when tactile key travel and the wider front-panel module must be released together.
View Silicone Keypad HMI Assemblies
A front-panel assembly in which the display module, window geometry, mounting, interconnect, cleanliness, and agreed visual checks share one build.
Choose it when: Choose it when the display itself is supplied and controlled, not merely a clear aperture in the front panel.
View Display-Integrated HMI Assemblies

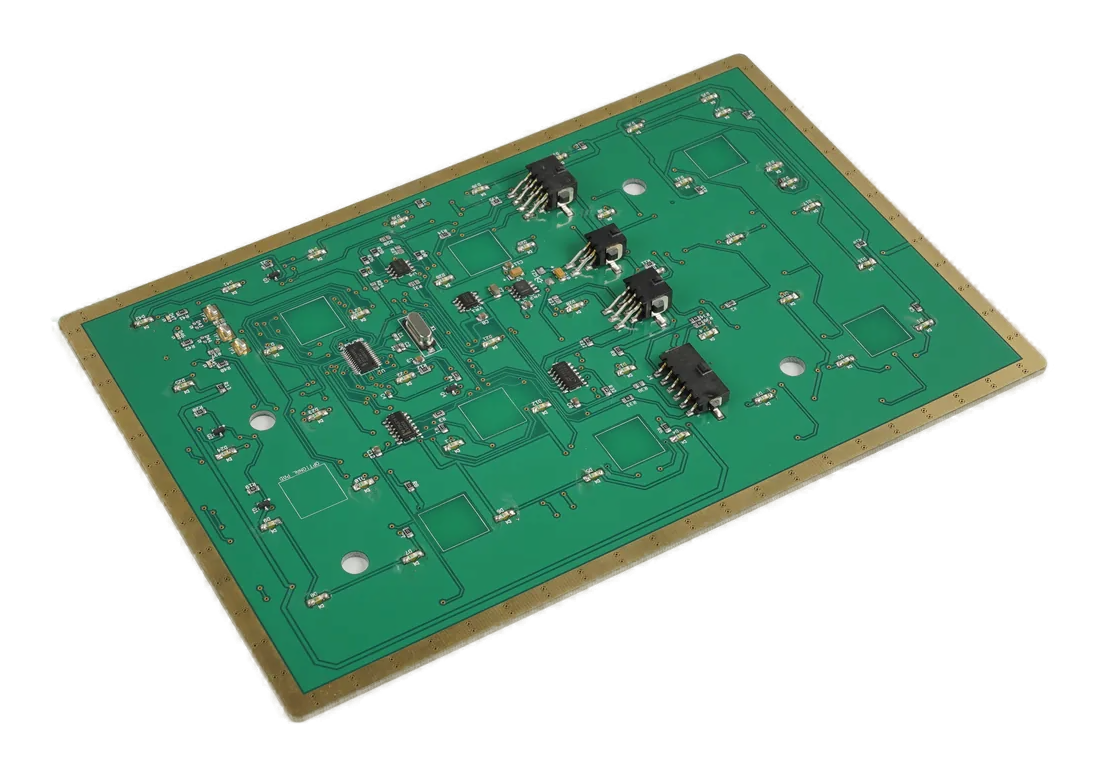

An electronics-led control assembly coordinating front inputs, rigid and flexible circuits, components, connectors, test access, and mounting.
Choose it when: Choose it when board and flex integration defines the customer handoff more than one input technology.
View PCB and FPC HMI Assemblies
An enclosure-mounted operator panel with released bezel or carrier, controls, display or indicators, gasket, fasteners, rear assembly, and cable exit.
Choose it when: Choose it when the customer wants one fitted front module while retaining cabinet, PLC, software, and machine responsibility.

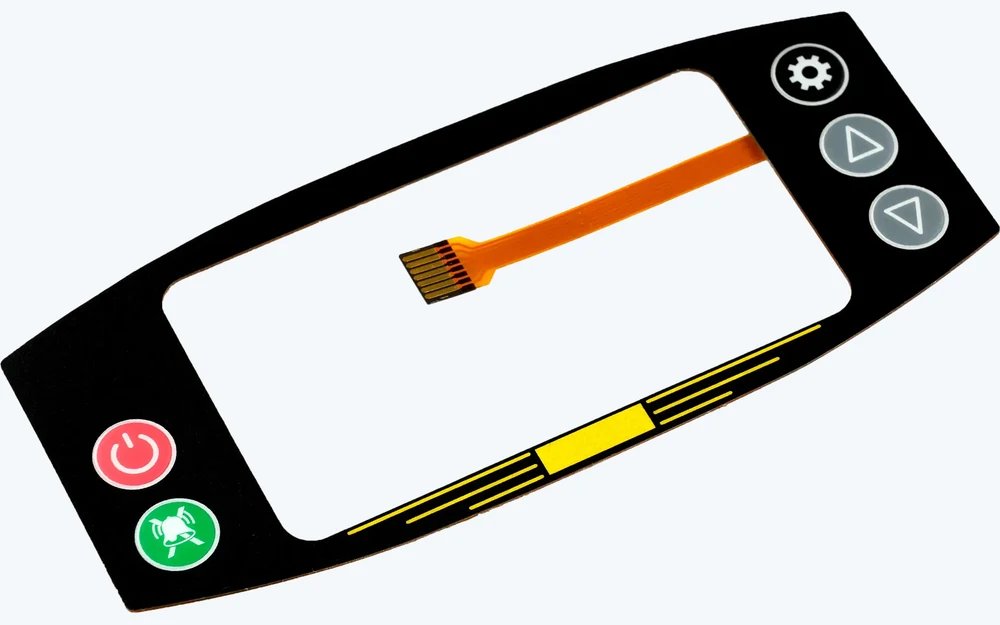

View Front Panel HMI AssembliesThe practical product is the state in which the assembly reaches the integrator. That state may include a protected cosmetic face, installed input layers, a display or display relationship, internal circuits, a rear carrier, a keyed connector, mounting hardware, labels, and production records.
Projects fail when the drawing shows a complete-looking panel but the quotation never says who supplies the display, controller board, firmware file, gasket, harness, fasteners, test fixture, or protective packaging. The bill of material and responsibility matrix must carry the same boundary.
JASPER can own an agreed physical and electrical assembly. PLC programming, SCADA development, branded terminal replacement, machine wiring, cabinet certification, safety logic, and complete-equipment validation remain outside scope unless the released project names them individually.
The front may combine several technologies. Start with the route that owns the unresolved handoff, then list every included and excluded item in the assembly drawing.
| Assembly Route | Primary Ownership | Evidence to Release |
|---|---|---|
| Membrane switch HMI | Laminated front input, circuit, display or indicator area, rear support, connector, and mounted handoff | Assembly stack, tail and connector, mounting datums, continuity and input checks, installed sample |
| Capacitive touch HMI | Capacitive front plus named display, interface electronics, carrier, interconnect, and assembly behavior | Touch map, display and ground relationship, controller boundary, host interface, installed state review |
| Silicone keypad HMI | Molded keymat, PCB contacts, lighting, display area, carrier, connector, and enclosure fit | Key force and travel targets, PCB map, optical state, mechanical support, assembled sample |
| Display-integrated HMI | Supplied display module, front window, bracket, bonding or retention, cable, and visual acceptance | Display model, viewing and active areas, mounting, power and data handoff, cleanliness standard |
| PCB and FPC HMI | Rigid and flexible electronics, front controls, components, connectors, test access, and mechanical support | Schematics and files, BOM, interface control, programming boundary, fixture and output records |
| Front panel HMI | Enclosure-mounted bezel or carrier, controls, display or indicators, sealing, fasteners, rear assembly, and cable exit | Panel cutout, datums, compression plan, rear clearance, connector state, fit and function fixture |

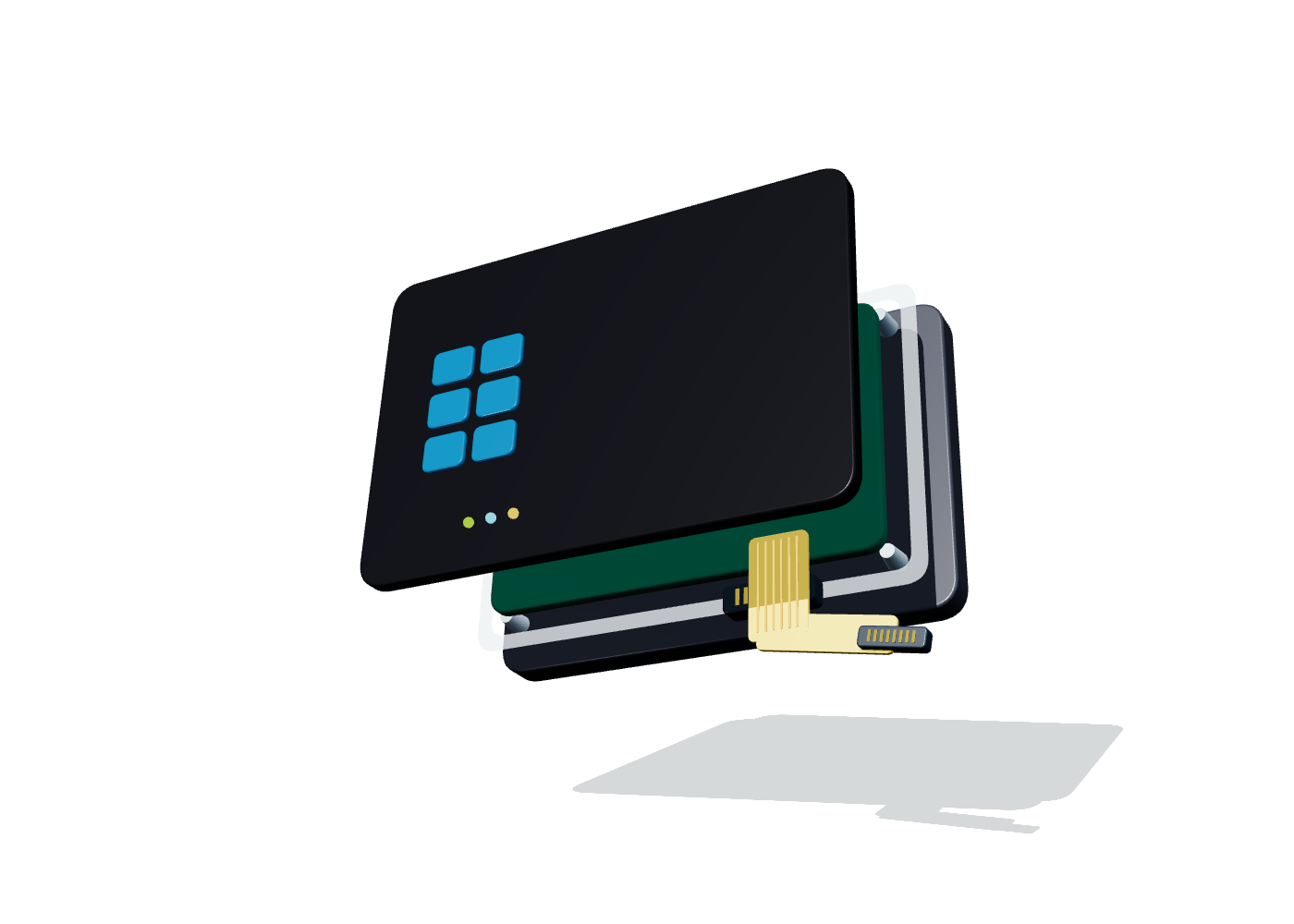

Overlay edges, key openings, display position, adhesive thickness, gasket compression, PCB supports, studs, fasteners, and enclosure datums accumulate across the assembly. A clean exploded view is useful only when the same relationships are dimensioned from customer-usable references.

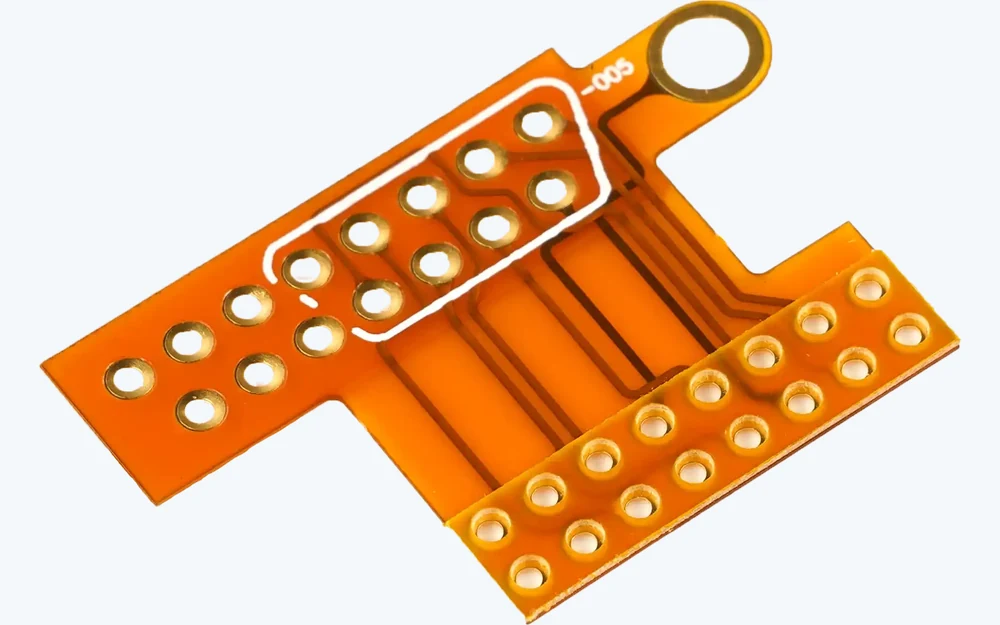

A connector that physically mates can still carry the wrong pinout, voltage, ground reference, communication state, controller file, display interface, or diagnostic access. The handoff drawing should name the electrical state and the owner of every configuration-dependent decision.
Visual, dimensional, continuity, key, touch, lighting, display, communication, and fixture checks can be assigned to the HMI assembly. Machine behavior, safety logic, complete EMC performance, field wiring, and regulatory approval still require the customer's finished system.
Mark supplied, customer-supplied, installed, excluded, and optional items on one assembly-level bill of material.
Align front artwork, input zones, display, carrier, gasket, fasteners, enclosure datums, clearances, and service direction.
Release circuits, boards, interconnects, connectors, pinout, grounding, controller or display configuration, and test access.

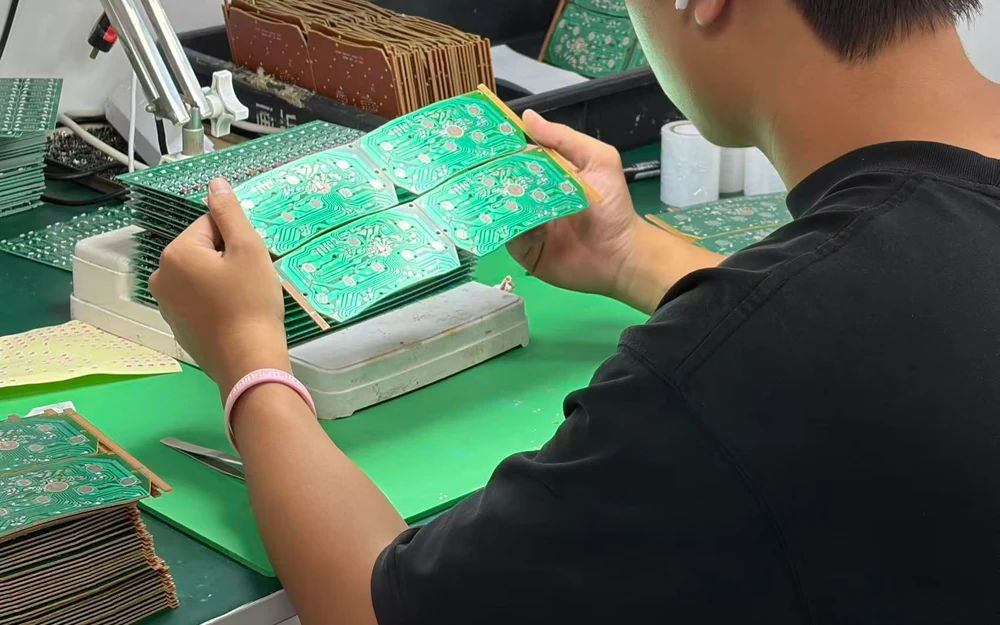

Review appearance, dimensions, input response, lighting, display, electrical output, fit fixture, labels, and packaging.
Lock revisions, approved sources, work instructions, fixtures, records, substitutions, notifications, and requalification triggers.
The common need is not a particular button technology. It is a controlled operator module that reduces integration work without hiding the remaining system responsibilities.
Operator fronts with controls, display, indicators, rear electronics, mounting, and one defined equipment handoff.
Cleanable interface modules with deliberate visual, input, display, connector, assembly, and validation boundaries.
Dense control fronts combining fixed functions, display areas, channel selection, electronics, and revision-controlled labels.
Mounted operator panels coordinated with vibration support, gloves, lighting, sealing, cable routing, and host electronics.
Wall or enclosure-mounted interfaces with input, status, display, carrier, connector, and service requirements.
Production modules combining durable graphics, keys or touch, indicators, display, wiring, and repeatable enclosure fit.
Early files do not need to be perfect, but they should make the intended customer handoff visible enough to identify missing ownership before tooling.
Only the items listed in the released quotation, bill of material, and assembly drawing are included. Typical projects may combine the operator front, input device, display or window, PCB or FPC, interconnect, connector, carrier, gasket, mounting hardware, labels, packaging, and agreed checks.
A named display module, interface PCB, controller, or programmed device can be included when its source, configuration, test state, lifecycle, and customer handoff are explicitly released. They are not assumed from the appearance of the front panel.
Not by default. PLC logic, SCADA development, application software, machine wiring, safety functions, and complete-equipment validation remain customer or system-integrator responsibilities unless separately contracted.
Choose the route that owns the hardest unresolved integration boundary: membrane input, capacitive input, raised silicone keys, supplied display, PCB or FPC electronics, or enclosure-mounted front-panel delivery.
Approve the supplied boundary, appearance, dimensions, input behavior, display and lighting states, connector output, mounting fit, test evidence, packaging, traceability, and the changes that require renewed approval.
Compare low-profile input constructions before assigning the wider HMI assembly boundary.
Review Route
Separate the sensing-front decision from display, electronics, carrier, and full assembly responsibility.
Review Route
Review raised-key construction before integrating the keypad into a complete operator module.
Review RouteJASPER can review the front surface, input device, display, electronics, carrier, connector, gasket, mounting, inspection, packaging, and change-control boundary as one custom HMI panel assembly.
Share the project basics. JASPER will review the stack, materials, connector, quantity, and production risks.
