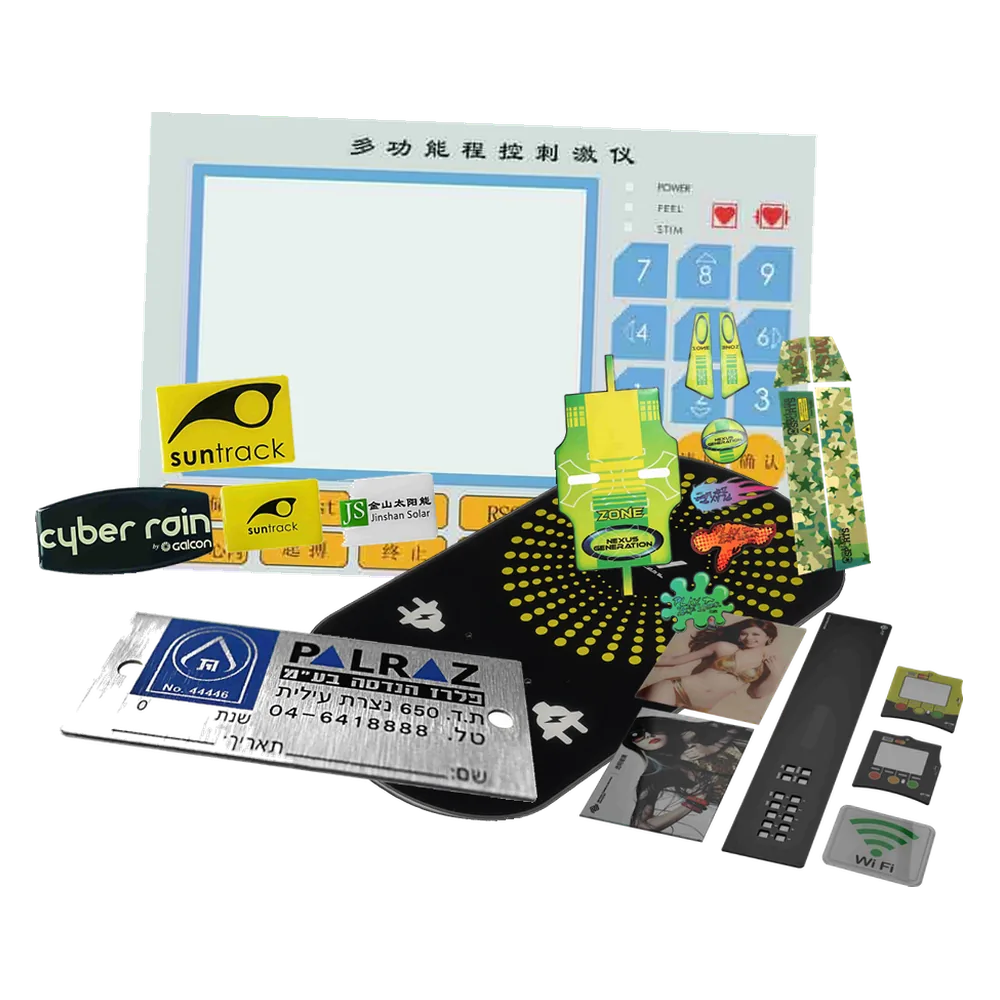

Compare flexible printed overlays, rigid panels, labels, domed badges, and metal nameplates by environment, appearance, mounting method, and operating life.
Compare all six approved routes before deciding which front-surface construction belongs on the drawing.

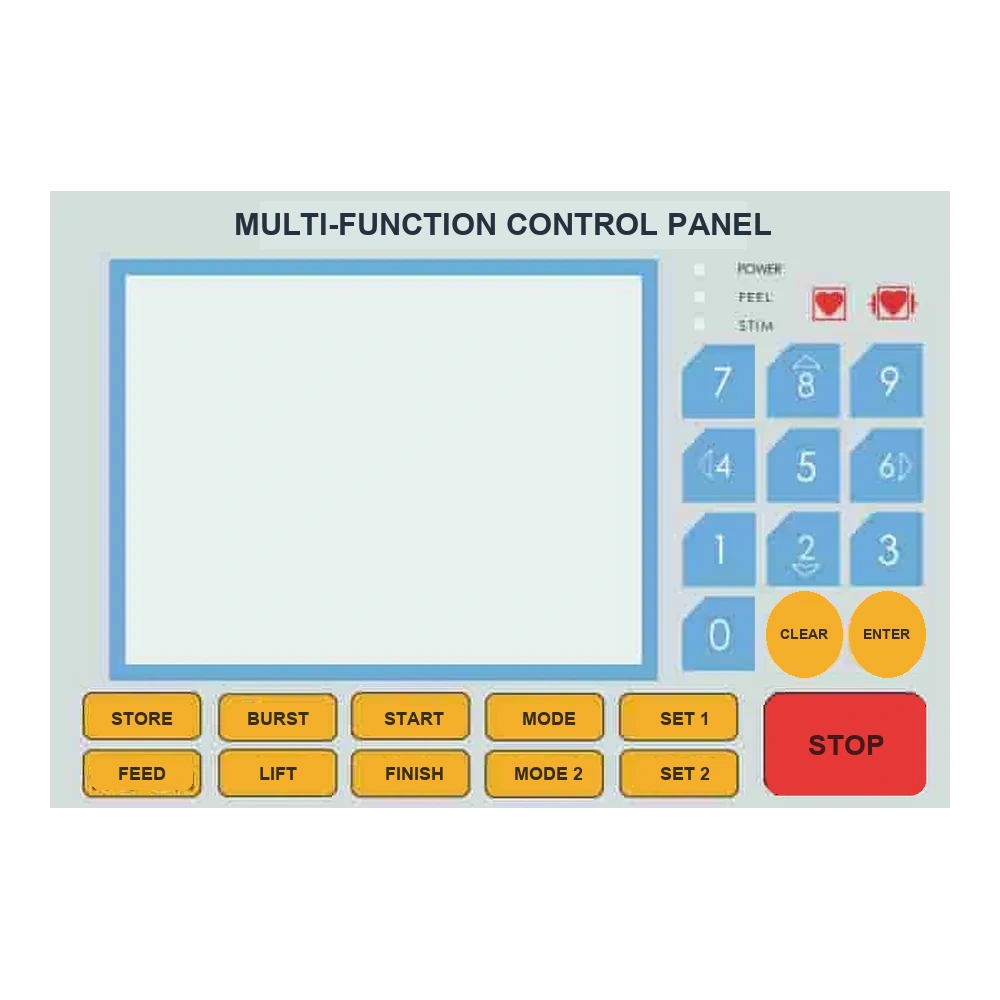

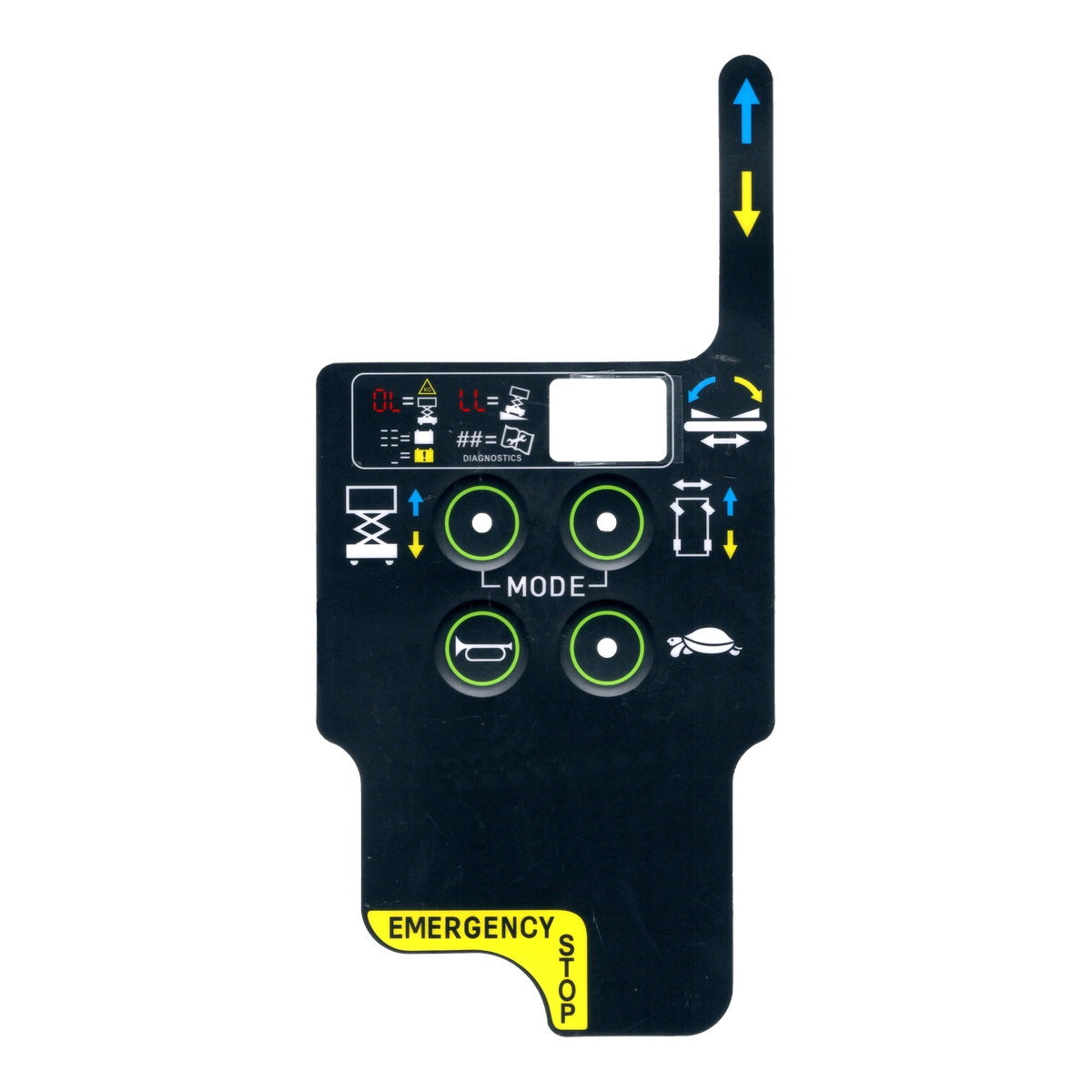

Flexible printed PET or polycarbonate faces with windows, key features, cutouts, hard coats, and rear adhesive.
Choose it when: Choose this route when the front surface must flex, follow a panel outline, or become the face of a membrane switch.
View Custom Graphic Overlays

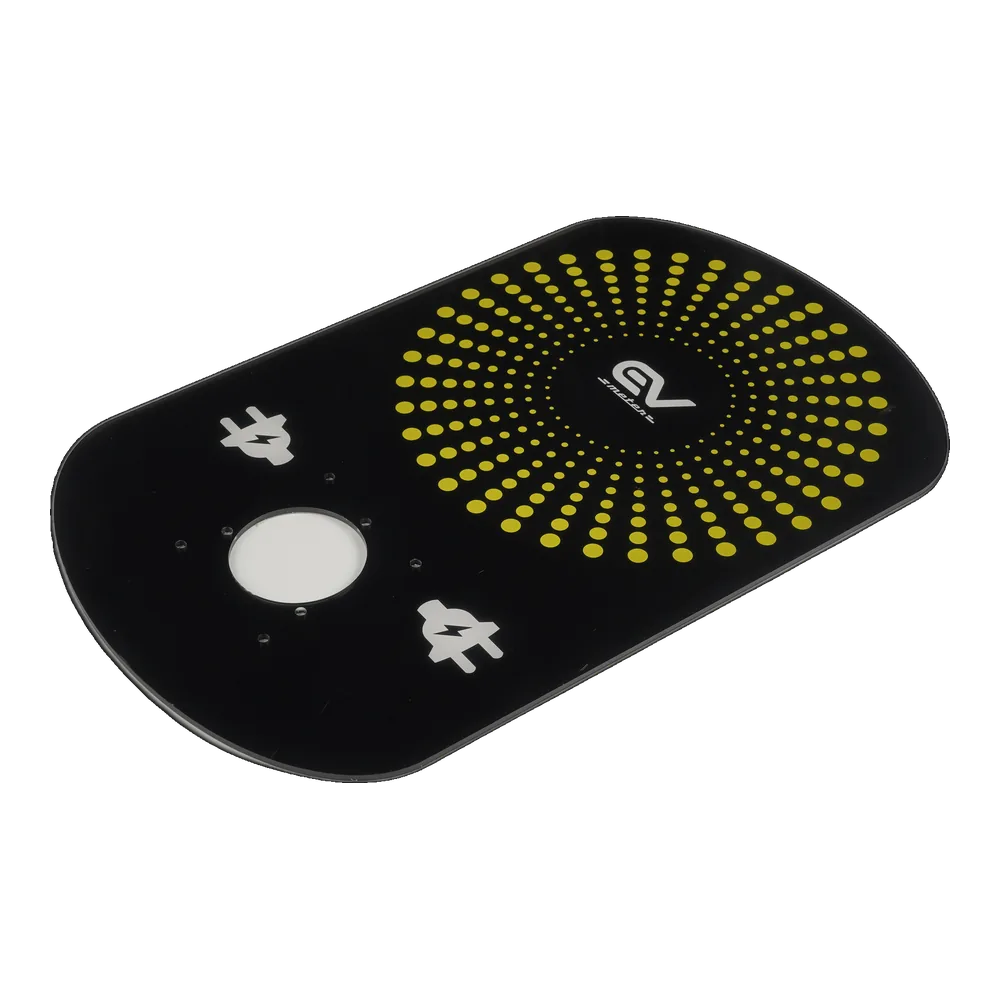

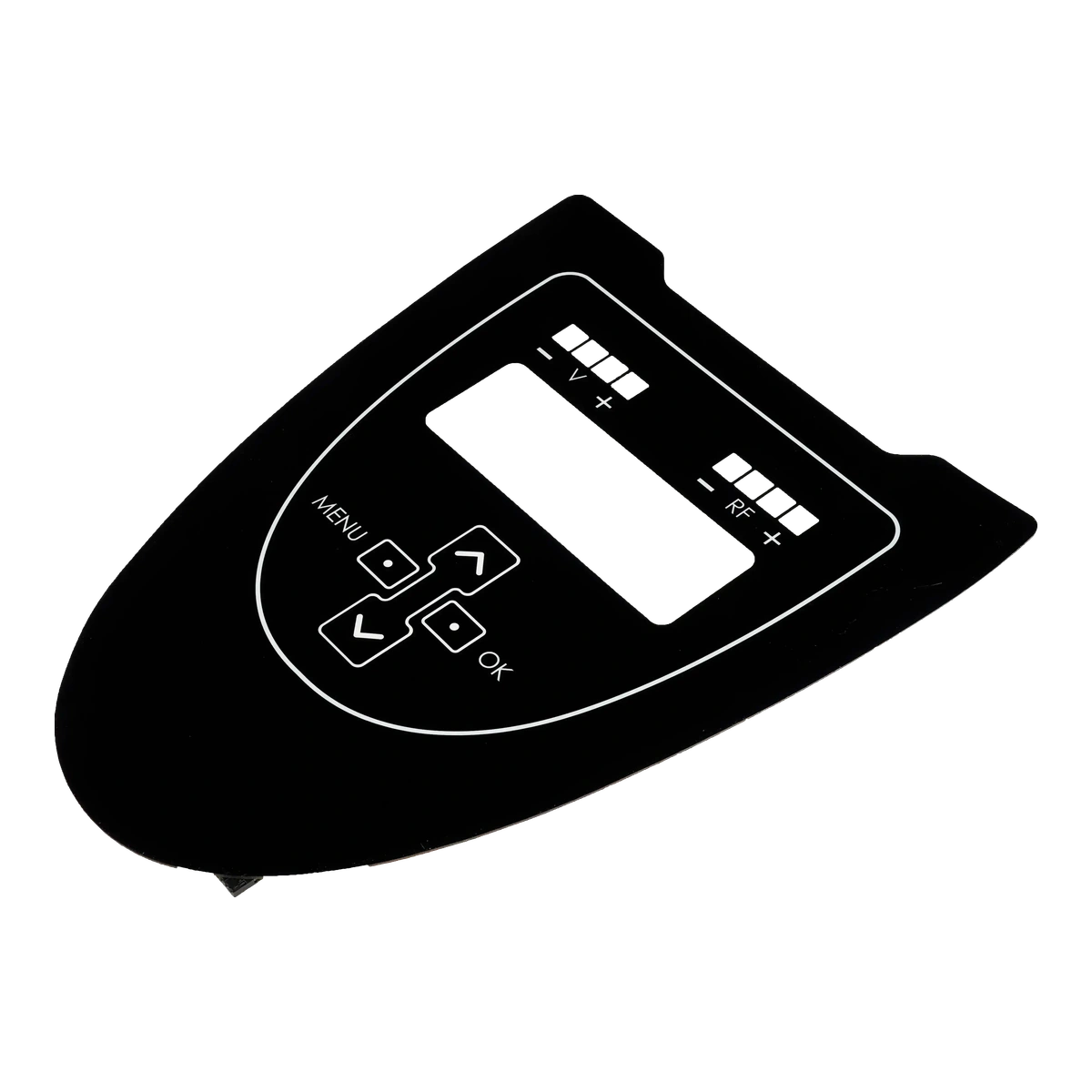

Rigid PMMA front panels and cover lenses with printed graphics, display openings, shaped edges, and adhesive or hardware mounting.
Choose it when: Useful when a rigid clear panel is needed without the weight or edge behavior of glass.
View Acrylic Panels and Nameplates

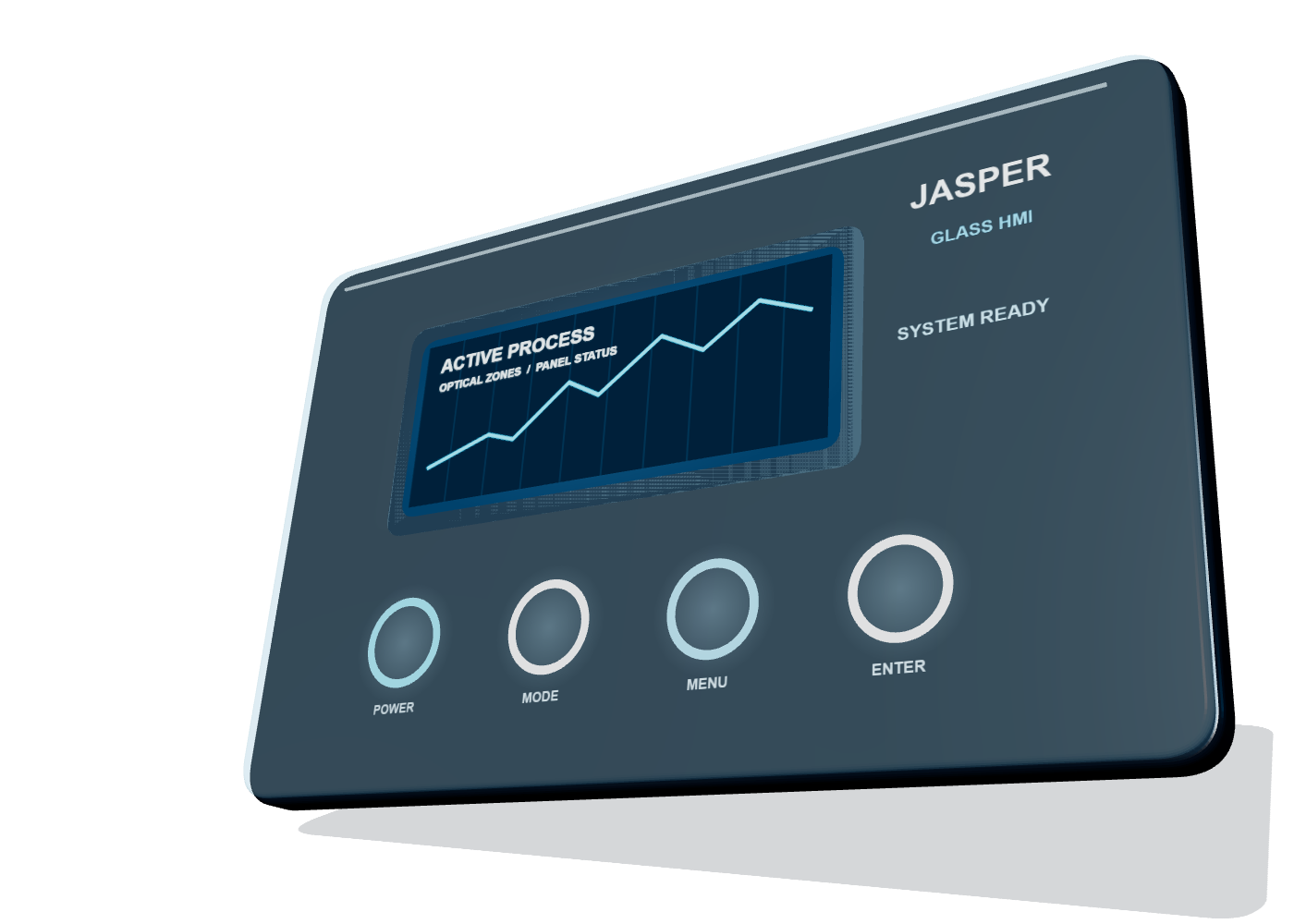

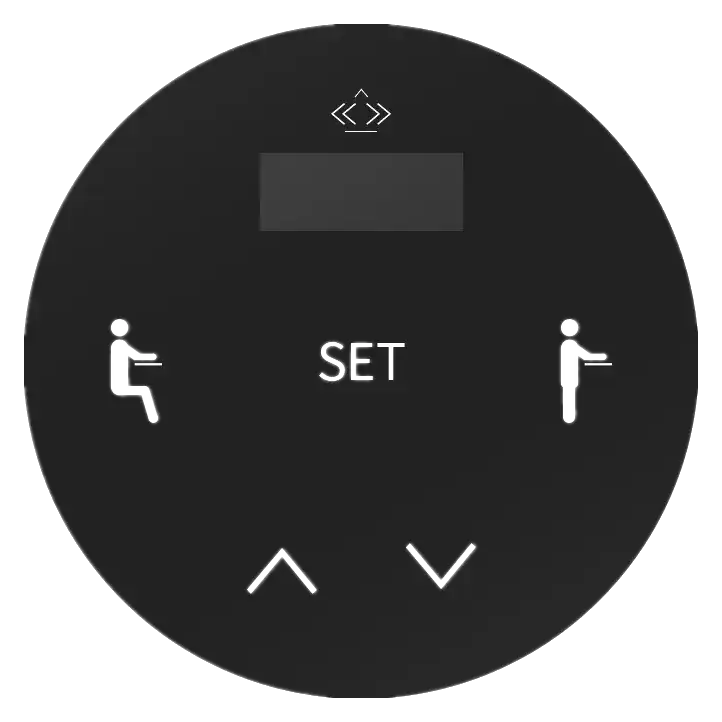

Printed glass front surfaces for premium controls, display windows, dead-front graphics, and high scratch exposure.
Choose it when: Review thickness, edge finish, impact risk, printing surface, and mounting method together.
View Glass Nameplates

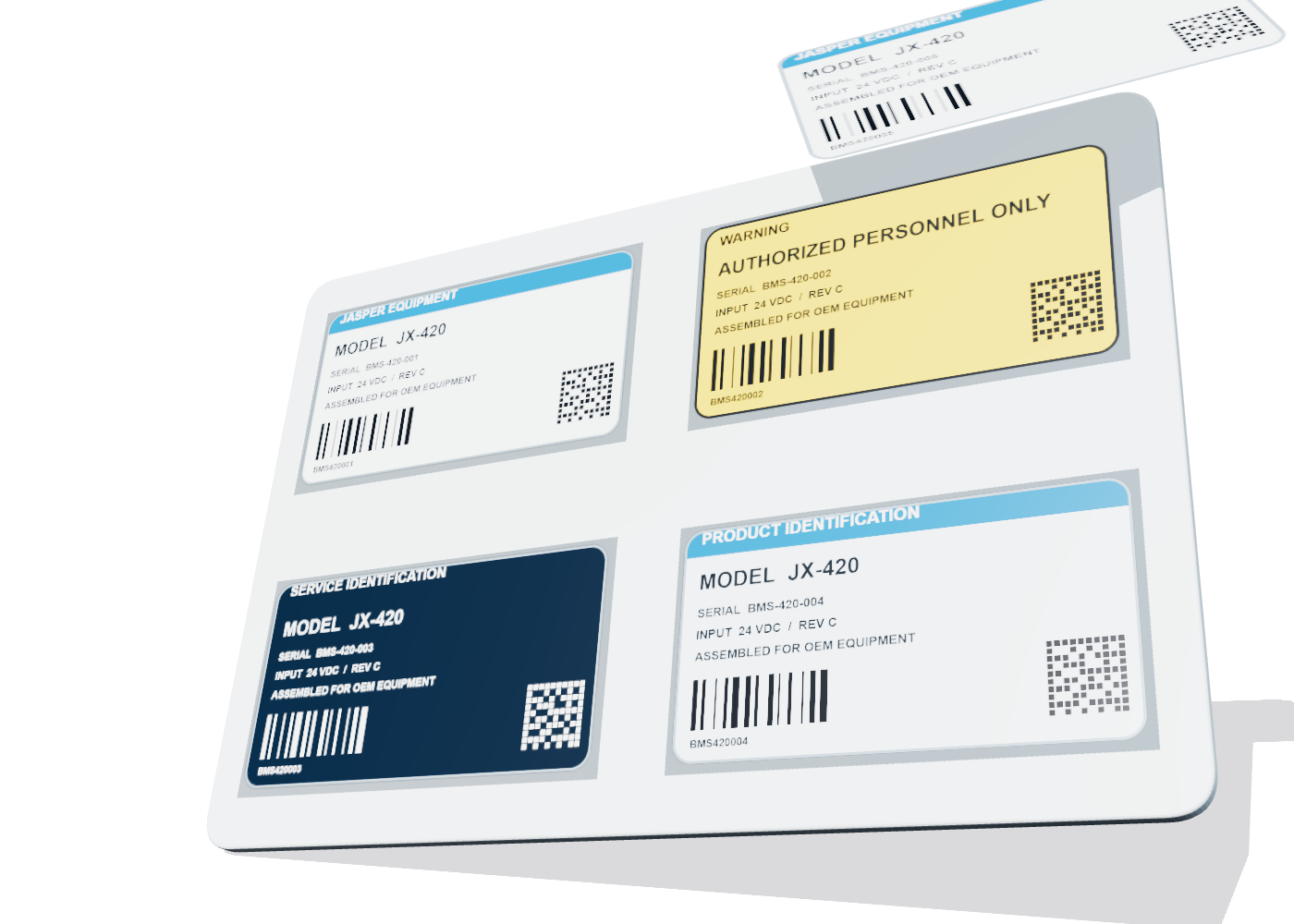

Printed identification labels for ratings, warnings, serial information, barcodes, branding, and equipment instructions.
Choose it when: Best when the part communicates or identifies rather than acting as a complete operator panel.
View Label Nameplates

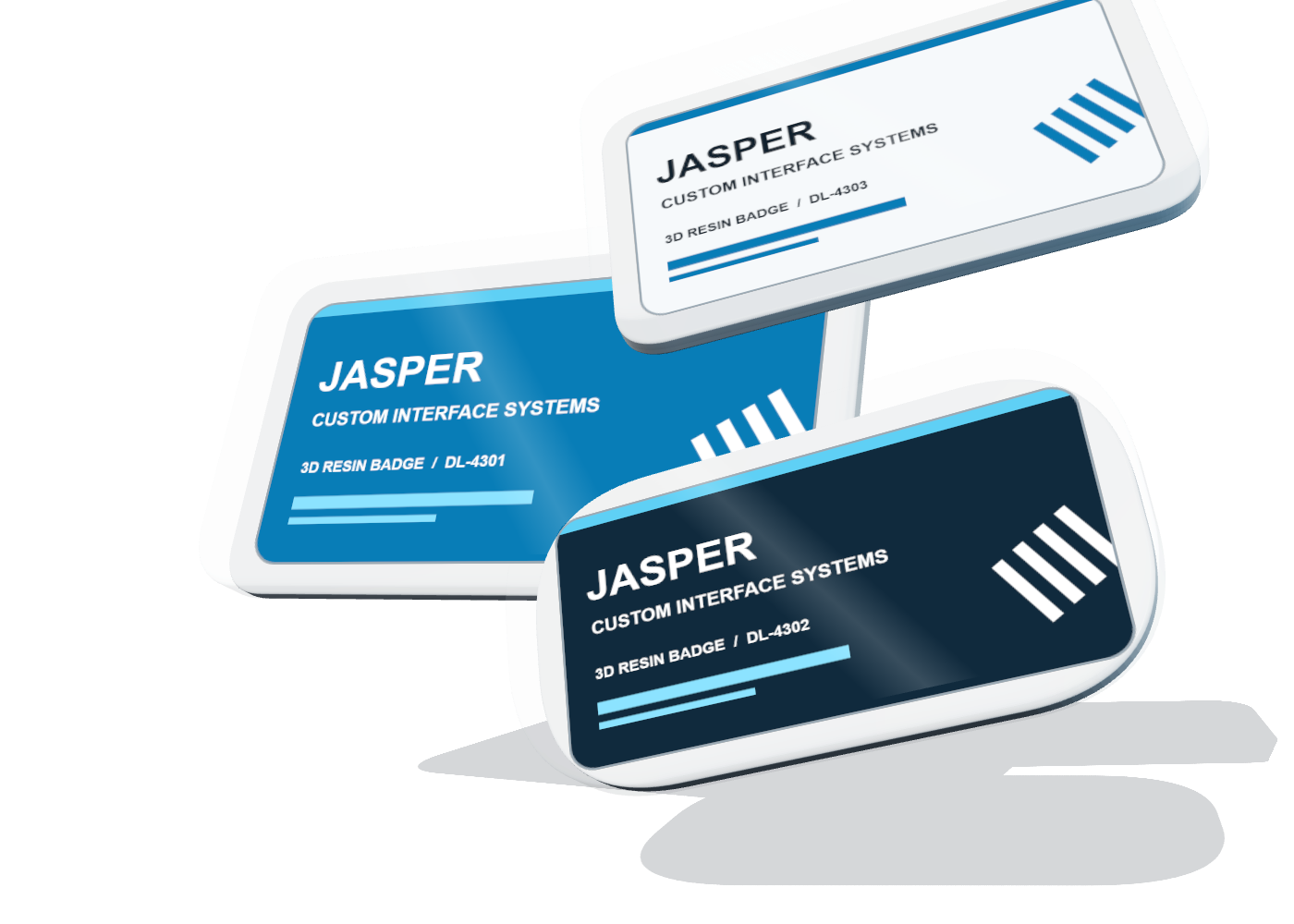

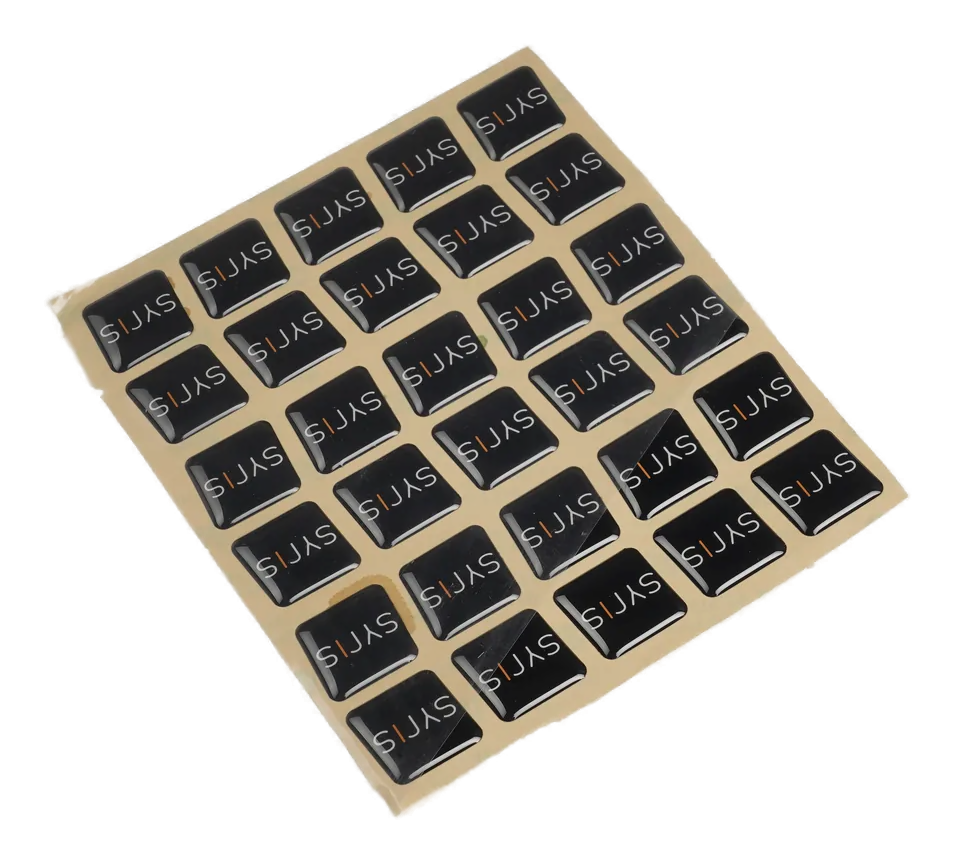

Printed labels protected by a clear raised resin dome for badges, logos, product marks, and durable visual emphasis.
Choose it when: Use when the brand element needs depth and gloss, then validate edge shape and adhesive support.
View Doming Label Nameplates

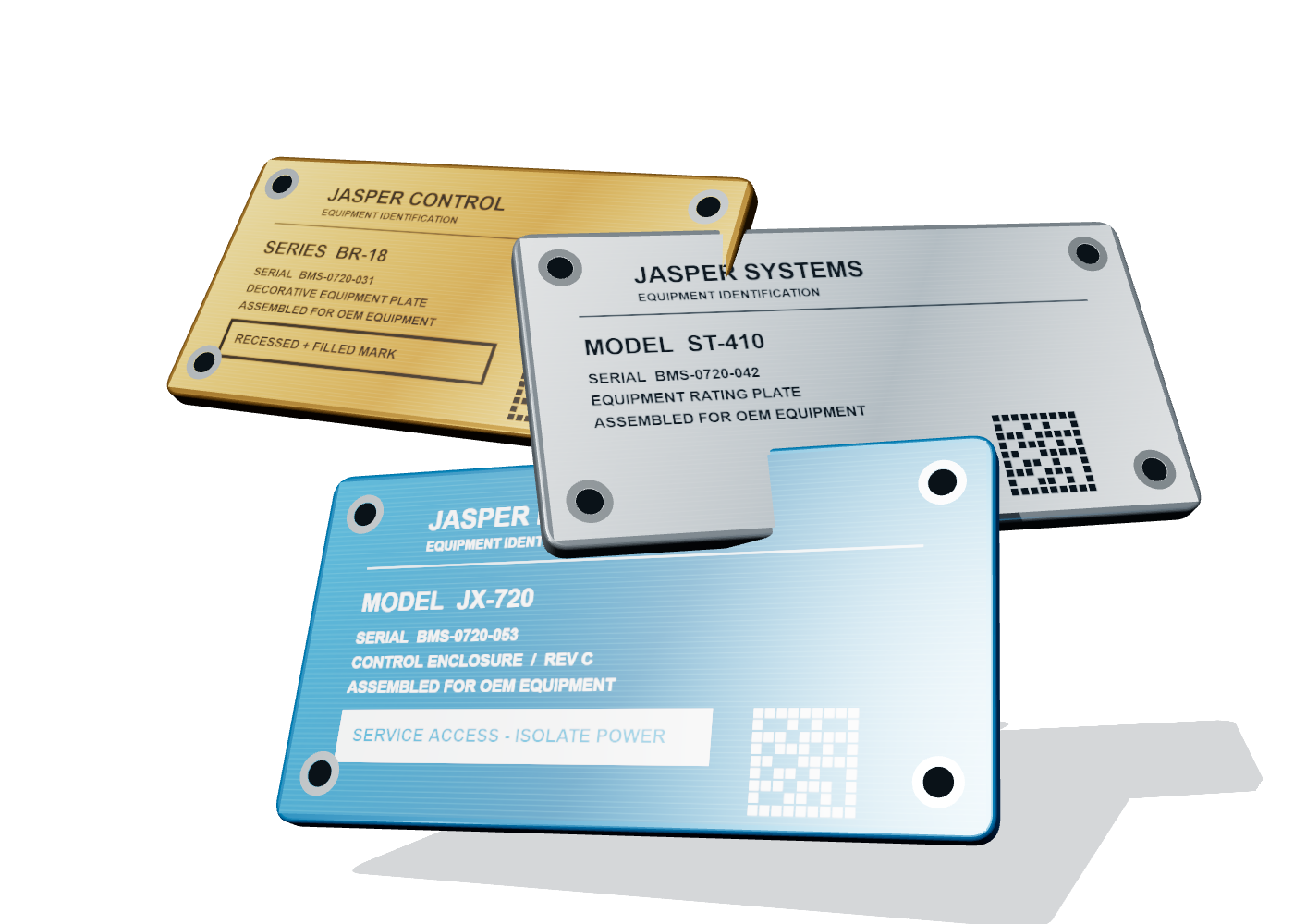

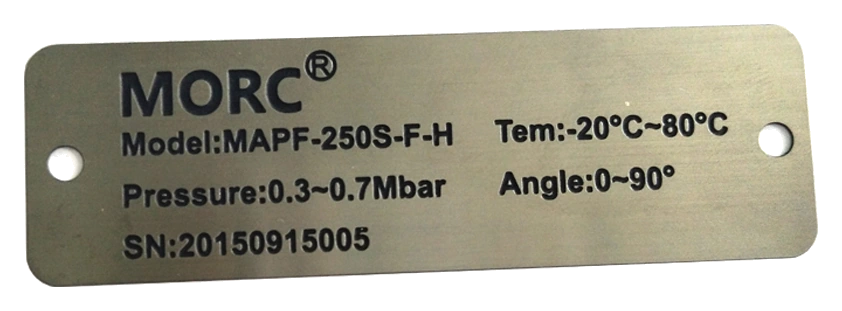

Aluminum, stainless, or other metal identification plates with printed, etched, or marked information.
Choose it when: Choose metal when heat, abrasion, solvents, or permanent equipment identification dominates the decision.
View Metal NameplatesThe visible artwork may be similar, but the correct construction changes with stiffness, exposure, display needs, mounting, and how the operator touches the product.
| Product Route | Best Starting Point | Decisions to Confirm |
|---|---|---|
| Flexible graphic overlay | Control surface, membrane switch face, shaped fascia | PET or PC, finish, windows, embossing, adhesive |
| Acrylic panel | Rigid clear cover or lightweight front lens | PMMA grade, thickness, edge shape, coating, mounting |
| Glass nameplate | Premium display or hard scratch-resistant front | Glass build, edge finish, print surface, impact and bond |
| Printed label | Ratings, warnings, identification, instructions | Film, variable data, cut shape, readability, adhesive |
| Domed label | Raised logo, badge, and decorative identity | Base print, dome material, edge, gloss, bond area |
| Metal nameplate | Permanent ID under heat, abrasion, or solvents | Alloy, marking method, finish, holes, adhesive or fasteners |
A front panel succeeds when the substrate, ink, window treatment, surface finish, adhesive, and enclosure surface are reviewed under the same operating conditions.
Flexible PET or polycarbonate, rigid acrylic or glass, label films, doming systems, and metal plate options.

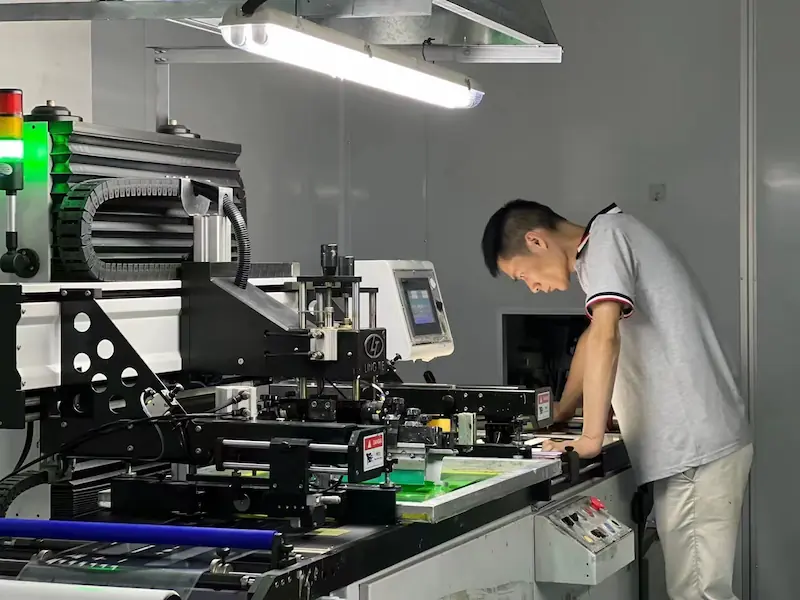

Spot-color screen printing, process-color routes, reverse printing, transparent windows, and controlled opaque areas.
Gloss, matte, textured, selective clear areas, hard coats, dead-front effects, and protective films.
Pressure-sensitive adhesive, selective adhesive zones, hardware holes, edge support, and assembly fixtures.
Define the panel, operator, cleaning method, exposure, mounting surface, and expected quantity.
Review vectors, colors, cut lines, windows, legends, keep-outs, emboss areas, and revision control.
Select the substrate, print route, finish, adhesive, tooling, and inspection criteria.
Approve appearance, dimensions, window behavior, bond fit, and assembly on the real enclosure.
Lock the approved revision, inspection method, packaging, and change-control path.
Color approval alone is not enough. JASPER reviews the artwork against the cut geometry, display opening, adhesive perimeter, surface finish, enclosure, and assembly sequence before the project is released.
Controlled files, named layers, revision marks, and an approved visual proof.
Print, window, emboss, and die-cut relationships checked as one geometry.
Adhesive land, edge clearance, recess depth, texture, and installation pressure reviewed.
Appearance, dimensions, bond preparation, and project-specific tests defined before release.

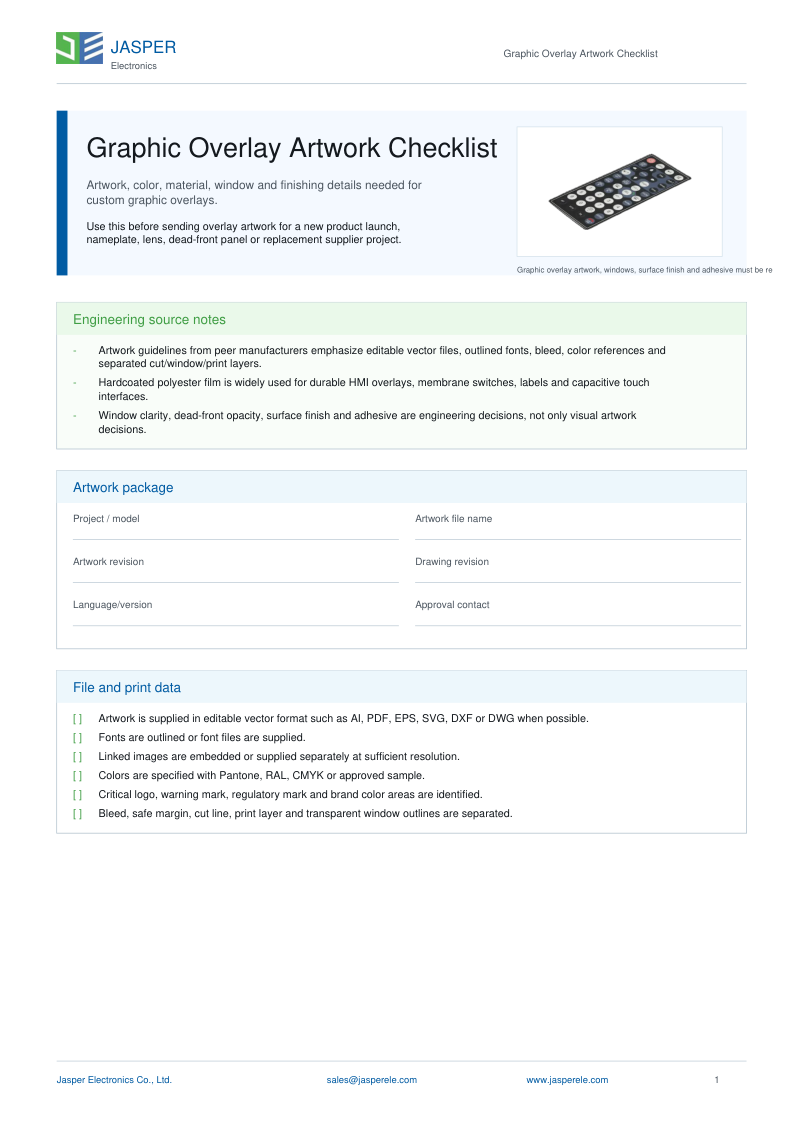

Use the checklist to organize colors, fonts, cut lines, display windows, embossing, surface finish, adhesive areas, and revision notes before quotation.
A graphic overlay is the visible printed front surface. A membrane switch adds the spacer, switching circuit, tail, connector, and optional tactile or lighting components beneath that surface.
Start with flexibility, impact, scratch exposure, cleaning chemicals, UV, display-window needs, mounting surface, and expected life. The material should be selected with the print, finish, and adhesive rather than as an isolated sheet.
Yes. Send the artwork, cut outline, window locations, enclosure surface, colors, finish, environment, and quantity. Early review can expose registration, edge, adhesive, and readability risks before tooling.
Compare film, surface, window, and adhesive decisions before sample approval.
Read Resource
Plan icon transmission, window opacity, light leakage, and viewing conditions.
Read Resource
Prepare the drawing package, quantity, environment, and approval requirements.
Read ResourceShare the artwork, enclosure surface, windows, environment, quantity, and fixed requirements so the front surface can be reviewed as one system.
Share the project basics. JASPER will review the stack, materials, connector, quantity, and production risks.
