Multi Channel Printed Electrode Array Design: A 10-Gate Engineering Guide

JASPER certifications: ISO 9001, ISO 13485, IATF 16949, and ISO 14001.

The practical starting point for custom printed electrode arrays is a two-part input: the channel map and the active-area geometry. Everything else—routing density, crossover count, tail width, connector positions, and inspection access—follows from those two records.

1. A Multi-Channel Array Fails as a Coupled System

A multi-channel printed electrode array is a patterned component with multiple electrically distinct electrode sites connected through printed traces to a tail, connector, or downstream assembly. That definition sounds simple. The design is not.

Electrode count, recorded channel count, and connector position count are different quantities. A differential channel may use two physical contacts. Several acquisition inputs may share a reference. An electrochemical array may share a counter electrode and a reference. A stimulation layout needs a defined return path. Some systems reserve a bias, shield, identification, or test position. Calling every conductor “channel 1, channel 2, channel 3” hides those distinctions.

The design also crosses mechanical and manufacturing boundaries. Moving one electrode can lengthen a trace, close a routing corridor, force a neck-down, change the dielectric window, shift the tail axis, and add a connector position. An electrical continuity test may still pass after a dimensional or registration defect. Electrical testing verifies network interconnection but does not determine conductor geometry, dimensional accuracy, or registration.

The failure chain is usually more useful than the final defect label:

This is why the array outline should not be released first and “wired later.” Geometry, topology, mechanics, and evidence need one owner-controlled revision.

2. A 10-Gate Multi Channel Printed Electrode Array Design Framework

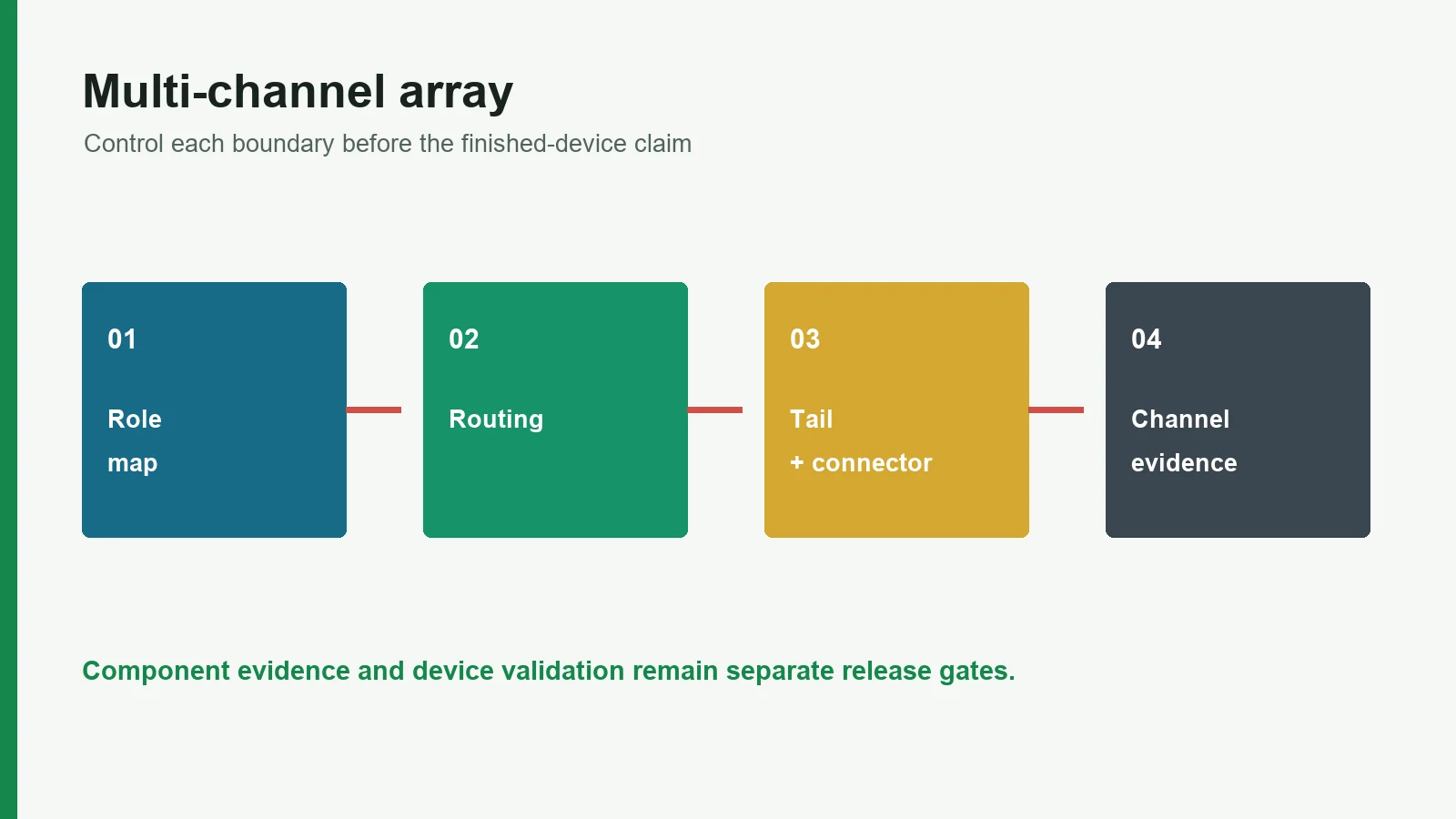

The ten gates below move from system intent to production evidence. A gate is closed only when its input exists in a controlled drawing, table, netlist, or test method. A verbal note in an email is not a release record.

Gate 1 — Label Every Electrode Role Before Counting Channels

The channel map should name what each physical contact does, what circuit node it reaches, and which connector position carries it. Start with roles, not sequential labels.

Texas Instruments shows the distinction in its ADS1299 biopotential front-end documentation: a referential montage can share a reference, while a separately configured bias path supports common-mode feedback. That is one acquisition architecture, not a universal prescription, but it proves why “reference,” “bias,” and “ground” cannot be treated as synonyms.

Electrochemical sensing uses different roles. A 2025 original study by Godja and colleagues built a screen-printed sensor with 16 working electrodes, a common counter electrode, and a reference electrode. That arrangement belongs to the reported nickel-sensing system. It should not be copied into an ECG, EEG, EMG, or stimulation array merely because the component contains printed electrodes.

Use a role table like this:

For EEG electrode arrays, the placement label, physical electrode, acquisition input, reference scheme, bias strategy, and connector position should remain traceable as separate fields. A channel map that only lists colors or pin numbers is incomplete.

Scalp placement, wear conditions, and application-specific fan-out belong in a separate EEG electrode-array geometry and routing review rather than being inferred from this general array framework.

Release signal: every physical contact has a unique site ID, net name, electrical role, connector position, and owner-approved description.

Stop condition: the team cannot explain the difference between electrode count, acquisition-channel count, and connector-position count.

Gate 2 — Freeze Active Geometry and Spacing as Measurement Inputs

Active geometry defines where electrical or electrochemical exchange occurs. The drawing should distinguish the electrode body from the exposed active window, surrounding dielectric edge, adhesive or interface-media aperture, and converted outside shape. Those outlines often differ.

Spacing is not a printer's default. It changes what the system samples. De Luca and colleagues tested 5–40 mm inter-electrode spacing in one surface-EMG crosstalk study and found different results by spacing and differential arrangement. That evidence supports one narrow conclusion: geometry affects sEMG selectivity. It does not make any tested spacing a rule for another muscle, ECG, EEG, or a chemical sensor.

The related surface EMG electrode layout for flexible printed patches route keeps muscle orientation, pair geometry, motion, and sEMG validation separate from general printing rules.

Area is also conditional. Chlaihawi and colleagues compared several radii in a screen-printed PET dry-ECG construction. The larger test electrode performed better within that material stack and setup. A different contact material, pressure, gel, body site, amplifier, or motion condition can change the result.

Release these geometry fields:

• center coordinates or anatomical/sample datums;
• active shape and area;
• center-to-center pitch or pair spacing;
• orientation relative to tissue, flow path, muscle fibers, or another functional axis;
• dielectric-window size and registration tolerance;
• edge clearance to cuts, perforations, adhesives, vents, and routing corridors;
• allowed placement or converted-part tolerance;
• flat, bent, wrapped, stretched, wet, or loaded use state.

Geometry should come from the measurement or stimulation owner. The component supplier can assess whether the released geometry is printable and convertible; it should not invent the physiology, electrochemistry, or treatment geometry.

Release signal: the active geometry is dimensioned from stable datums and linked to the application method.

Stop condition: “make the electrodes as large as possible” or “use standard spacing” appears without a defined test objective.

Gate 3 — Choose the Interconnect Architecture Before Routing

Architecture decides how many independent conductors must cross the active-area boundary. One trace per electrode is easy to understand and test, but its routing width grows with channel count. Shared nodes reduce conductors only when the electronics and method permit sharing. Row-column addressing or local multiplexing may cut tail conductors, but it changes the circuit, control method, fault behavior, and validation burden.

A high-count research array shows how tightly these choices couple. One 124-electrode flex-rigid ECoG array combined dedicated conductors, a separate reference, a flexible electrode region, and a rigid connector platform. Its micrometre-scale PI/Au process is not a screen-printing benchmark. The safe lesson is architectural: count, reference strategy, routing, mechanical zones, and connector integration were solved together.

Release signal: the system block diagram and array netlist identify every shared and independent path.

Stop condition: the layout depends on matrix addressing, multiplexing, or a shared node that the downstream electronics have not approved.

Gate 4 — Budget the Entire Conductive Path, Not Just the Longest Trace

Electrode trace resistance is a property of the complete path: ink system, cured deposit, line width, line length, neck-downs, corners, crossovers, contact transitions, tail pads, and connector interface. A nominally wide trace can still contain a high-resistance bottleneck. A short trace can fail at a contact transition.

The drawing should not copy a sheet-resistance value from a generic “silver ink” search result. Datasheet values belong to a named formulation, dry-film thickness, cure, substrate, and test method. The production requirement should instead state the selected material system, the path endpoints, conditioning, fixture, current or method, and the allowed network-resistance range. IPC-9257 treats resistive continuity, equipment, fixturing, data, and test level as connected choices.

Do not force equal trace lengths by habit. Matching may help a particular front end or algorithm, but extra serpentine length also adds resistance and consumes space. The electronics owner should state whether absolute resistance, channel-to-channel spread, capacitance, coupling, or only open/short detection matters. Then the array designer can spend routing area on the correct variable.

Include these items in the path budget:

• material and cured-deposit requirement for each conductor layer;
• nominal and minimum trace widths by zone;
• maximum permitted neck-down length;
• electrode-to-trace transition geometry;
• crossover count and each added conductor segment;
• tail-contact finish or printed contact layer;
• connector contact contribution where the method includes it;
• resistance before and after the specified bend, aging, or environmental exposure;
• channel-to-channel comparison only when the system requires it.

Release signal: every conductive net has test endpoints and an approved electrical acceptance method.

Stop condition: the only requirement is “low resistance,” or a material datasheet value has been copied directly into the finished-array drawing.

Gate 5 — Complete Electrode Trace Routing and One-Layer Escape Analysis

Electrode trace routing starts at the most constrained site, not at the tail. Dense interior electrodes usually have fewer exit directions than perimeter sites. Route the difficult nets first, preserve active windows and keep-outs, then test whether the remaining corridors can reach the tail without violating the selected process capability.

Run the escape analysis in this order:

1. Place the active sites and lock the datum scheme.
2. Draw dielectric windows, cut edges, adhesive openings, vents, holes, and no-route regions.
3. Reserve the tail transition and connector-pad fan-out.
4. Route interior or trapped sites first.
5. Identify the narrowest corridor, smallest spacing, tightest registration relationship, and longest path.
6. Compare those four conditions with the selected supplier's validated ink, substrate, print, cure, and inspection capability.
7. Widen the part, change site placement, split the tail, or reduce count before adding crossovers.
8. If the one-layer layout still fails, document why the chosen alternative is better than the other available architectures.

There is no source-backed universal minimum line width or gap for this article. IEC 62899-402-1:2025 defines how printed line widths and spaces can be measured; it does not tell an OEM what value a particular supplier can hold. Screen type, ink rheology, surface energy, substrate roughness, cure, registration system, and inspection method all affect the released capability.

A routing drawing should show nominal geometry and tolerance, not only a centerline. Include the full conductor boundary, local neck-downs, dielectric overlap, trace-to-pad transitions, edge clearance, and the datum used for optical measurement. If two layers must align, state whether the critical relationship is conductor-to-conductor, dielectric-to-conductor, window-to-electrode, or all three.

Release signal: a manufacturability review has identified the worst-case trace, gap, path length, layer registration, and tail fan-out.

Stop condition: routing approval relies on a web-published feature size from another ink, substrate, print process, or factory.

Gate 6 — Treat Every Crossover as a Three-Layer Insulation Structure

IPC defines a crossover as an insulated material printed over one or more circuit traces so another conductive path can cross without electrical contact. The definition in IPC-T-51 is concise. The manufacturing problem is not.

A printed crossover introduces at least three registered features:

Top conductor: the crossing path, including its approach and exit
Dielectric bridge: the insulating island with controlled coverage beyond the lower conductor
Bottom conductor: the first printed trace, with the crossed region identified
Flexible substrate: the base whose dimensional change affects both registrations

The material pairing, print order, cure sequence, wetting, dielectric thickness, coverage, and conductor adhesion must work as a system. The inspection plan should address misregistration, incomplete wetting, voids, pinholes, contamination, conductor discontinuity at the bridge edge, and inadequate isolation after the specified conditioning.

Registration cannot be reduced to a single artwork offset. Välimäki and colleagues showed in 2022 PET processing research that heat and tension can change flexible-plastic dimensions and that matched pretreatment improved layer registration in their equipment. Their micrometre results are not transferable design limits. The useful principle is that a multilayer overlap budget must include the real substrate, thermal history, web or sheet handling, and registration system.

Use this decision rule:

• keep a one-layer layout when it meets geometry, resistance, and mechanical requirements with adequate process margin;
• use a small number of qualified crossovers when the material system and inspection plan are already validated for them;
• redesign the fan-out when crossover count or clustering makes dielectric yield the dominant risk;
• move to a two-sided, multilayer, etched-flex, or active architecture when routing density—not electrode function—has become the controlling problem.

Release signal: every crossover has a layer sequence, material pairing, overlap geometry, registration method, electrical test, and environmental condition.

Stop condition: “add a dielectric dot here” is the complete crossover specification.

Gate 7 — Select a Flexible Electrode Array Platform by Its Mechanical Job

A flexible electrode array bends. A stretchable array changes in-plane length. Those are not equivalent claims.

IPC-6902 covers printed electronics on flexible or bendable substrates and explicitly separates that scope from stretchable fabrics, textiles, and stretchable polymers. A PET or PI circuit may wrap around a curve yet fail when asked to elongate repeatedly with skin. A TPU film may stretch, but the printed conductor, dielectric, adhesive, contact layer, and connector transition can reach their limits first.

Use the medical electrode layer stack guide to assign substrate, conductor, dielectric, adhesive, and interface responsibilities. Use the PET versus TPU substrate tradeoffs review when the decision turns on dimensional stability versus in-plane strain.

Material roles may also differ inside one array. Adly and colleagues printed silver feedlines, carbon electrode structures, and polyimide passivation in one soft microelectrode research platform. That study does not prescribe a surface-array stack. It does demonstrate why “choose the electrode ink” is not enough: current collection, interface behavior, insulation, mechanics, and processing may call for different materials.

State the mechanical duty in testable terms:

• bend-to-install or repeated dynamic flex;
• bend axis, radius, angle, and number of cycles;
• tensile strain, direction, rate, and cycles if stretch is required;
• flat, wrapped, or loaded electrical test state;
• temperature, humidity, sweat, fluid, cleaning, abrasion, and UV exposure as applicable;
• transition zones that must not bend or stretch;
• failure definition: resistance change, open circuit, isolation loss, cracking, delamination, window shift, or connector damage.

Release signal: the mechanical requirement names the motion, conditioning, monitoring method, and failure criterion.

Stop condition: the material is accepted because a brochure calls it flexible, elastic, wearable, or medical.

Gate 8 — Lock the Tail, Pin Map, Connector, and Strain Transition

The tail is part of the electrode array, not a cable-shaped afterthought. Its width comes from conductor count, pitch, spacing, edge clearance, alignment features, and the selected connector. Its mechanical life depends on where the stiff region ends and where bending begins.

Choose the mating component before finalizing the tail artwork. A connector family controls:

• part number and drawing revision;
• position count and contact pitch;
• top, bottom, or dual contact orientation;
• allowed FFC/FPC insertion thickness;
• exposed-contact length, width, finish, and datum;
• pin-1 location and insertion direction;
• stiffener material, length, thickness, and setback;
• latch, ear-tab, retention, or insertion feature;
• rated mating cycles and environmental range;
• board-side keep-out and assembly access.

These values vary even inside one product category. For example, a Molex FD19 family datasheet lists 0.50 mm and 1.00 mm pitch options and a 0.30 mm FFC/FPC thickness. Those figures belong to that family. They are not a suggested tail or an industry default.

The planned guide to electrode pad connector types and printed-tail options extends this decision to snap, tab, lead-wire, and printed-tail interfaces without treating them as interchangeable.

The pin map should be machine-checkable and human-readable:

Place the stiffener and strain transition around the connector's insertion geometry, then keep the required dynamic bend away from the rigid edge. The correct distance and geometry are construction-specific. The drawing should therefore define a bend-free zone or a tested transition rather than cite a generic multiple of material thickness.

Release signal: the approved connector drawing, tail cross-section, pin map, contact face, thickness, stiffener, and strain transition all share one revision.

Stop condition: the drawing says “ZIF tail” without a connector part number and mating detail.

Gate 9 — Release Inspection as a Matrix, Not a Footer Note

Inspection must cover the attributes that can fail independently. Continuity does not prove registration. A dimension report does not prove isolation. A connector fit check does not prove that the active window stayed aligned after lamination or flexing.

IPC separates these concerns. IPC-6902 lists visual, registration, pattern-accuracy, dielectric, continuity, isolation, moisture/insulation, flex, abrasion, aging, and silver-migration categories for flexible printed electronics. IPC-9257 addresses the equipment, test level, fixture, data, and records needed for electrical testing. Neither public scope supplies the array's acceptance values; the drawing or procurement specification must do that.

The first article may require every row. Routine production may use a different frequency by risk and process evidence, but the change must be documented. Do not silently convert a first-article method into a supplier-specific “standard test” or drop a test because the production fixture is inconvenient.

The site's component testing and inspection page is available for related context. The actual project inspection scope still needs written agreement for the selected construction; this article does not claim a particular supplier limit or in-house method.

Release signal: each critical attribute has a method, sample stage, conditioning state, owner, record, and pass/fail limit.

Stop condition: “100% tested” appears without naming what was tested, how, and against which acceptance rule.

Gate 10 — Separate Component Verification from Finished-Device Validation

A printed array can conform to its material, dimensional, electrical, and workmanship requirements while the finished device still fails signal, biological, packaging, usability, or regulatory evaluation. That is not a contradiction. The two evidence layers answer different questions.

biological evaluation concerns the final finished form, including processing, manufacturing aids and residuals, component interactions, and sterilization when applicable. ISO 10993-1:2025 places biological safety inside a risk-management process tied to materials, design, and contact conditions. Neither source turns an ink or film datasheet into a biocompatibility conclusion.

Application standards and guidance are also specific. FDA's ECG-electrode special-controls guidance separates electrical performance, adhesive performance, biological evaluation, and shelf life, and it excludes defibrillation, pacing, and cardioversion electrodes. An EEG, EMG, electrochemical, or stimulation array needs its own applicable framework.

As of February 2, 2026, FDA's Quality Management System Regulation applies to finished-device manufacturers, with exact responsibility depending on whether a marketed item is a component, accessory, or finished device. A component inspection report is valuable evidence. It is not FDA clearance or approval.

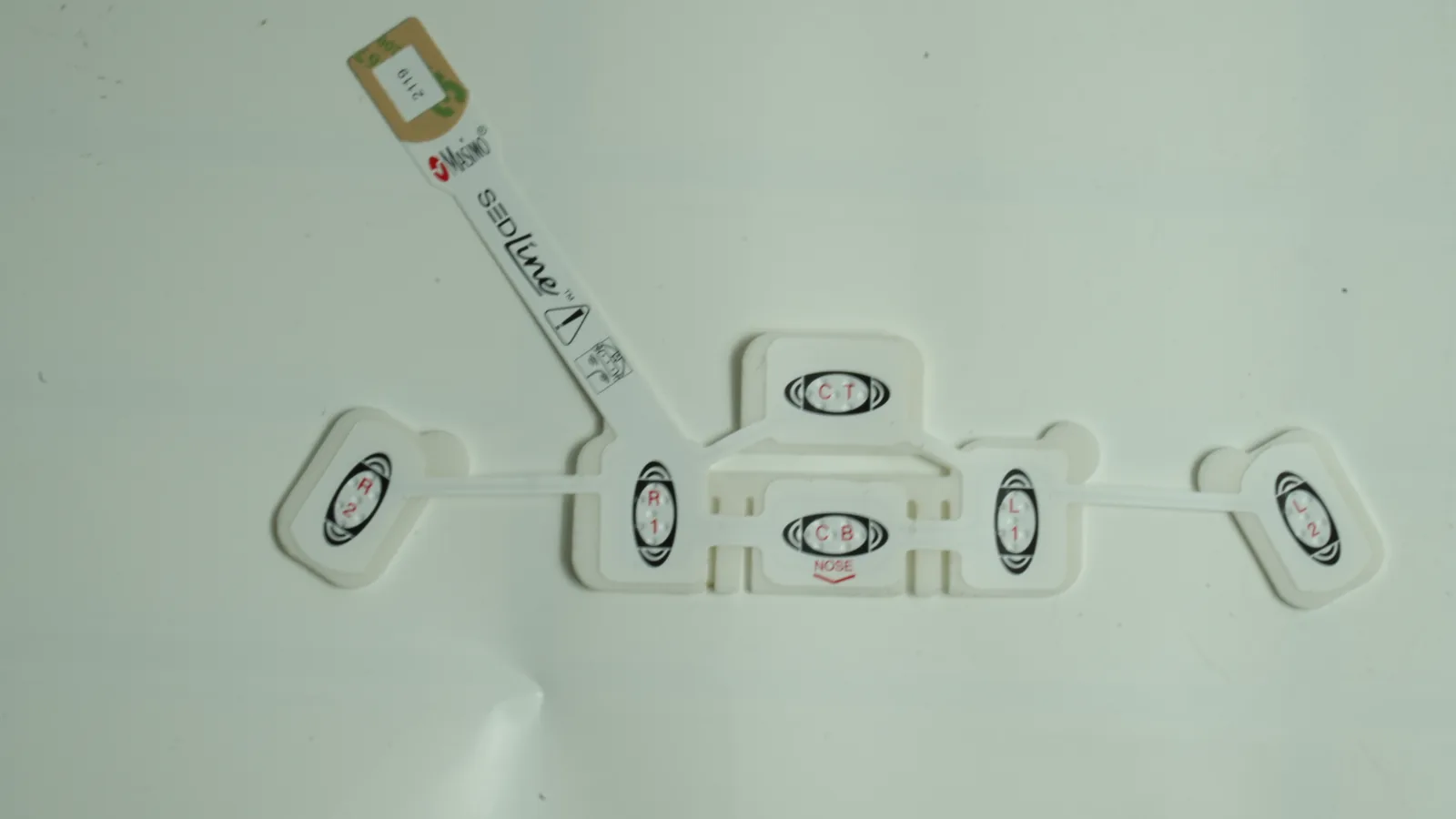

The printed medical electrode array manufacturing case documents a component-versus-finished-device evidence boundary. Apply the same boundary to every project, regardless of supplier.

Release signal: the verification matrix names the evidence owner at component, interface, electronics, packaging, and finished-device levels.

Stop condition: a supplier material statement or component continuity report is cited as proof of clinical performance, biological safety, sterility, shelf life, or regulatory authorization.

3. A Six-Step Drawing-to-Sample Process for Custom Printed Electrode Arrays

The ten gates become useful when they produce controlled files and approval evidence. The six steps below move from system architecture to a production-intent sample without asking the component supplier to invent the application.

Step 1 — Release the Role-Labeled Channel Map

Create a table with physical site ID, function, net name, polarity or phase role if relevant, reference/bias/return relationships, connector position, and test access. Include unused and reserved connector positions. Attach the acquisition or stimulation block diagram that explains shared nodes.

The output is not finished until three counts reconcile: physical electrodes, independent electrical nets, and connector positions. Record why they differ.

Step 2 — Release Active Geometry and a Mechanical Use Model

Dimension electrode centers, active areas, windows, edges, adhesive or interface-media apertures, cut lines, and datums. Then show the component in its real use state: flat, wrapped, bent, stretched, pressed, wetted, or mounted on a carrier.

A paper, film, or 3D form mockup can catch reach, overlap, tail direction, connector access, and fold placement before conductive artwork exists. The mockup does not validate electrical performance. It verifies that the geometry and mechanics describe the same product.

Step 3 — Run Routing, Stack, and Connector DFM Together

Complete one-layer escape analysis, flag worst-case corridors, and calculate the tail fan-out from the actual connector. Review trace geometry, resistance targets, dielectric windows, crossovers, stiffener, bend zones, cut tolerances, and test access in the same DFM session.

If the selected supplier proposes a feature size or registration tolerance, require evidence for the named ink, substrate, print process, cure sequence, inspection method, and comparable geometry. A capability slide with no material or method is not enough.

Step 4 — Issue One Controlled Fabrication Package

The package should contain:

• dimensioned mechanical drawing with datums and revision;
• conductor artwork by layer;
• electrode/interface artwork by layer;
• dielectric and active-window artwork;
• adhesive, spacer, liner, and converting artwork where included;
• material and process requirements by named revision or controlled performance requirement;
• netlist and connector pin map;
• tail cross-section and mating-connector drawing;
• inspection matrix with methods and limits;
• packaging, handling, cleanliness, traceability, and change-notification requirements;
• prototype quantity, production assumption, and requested records.

The printed medical electrode RFQ files checklist provides the content-cluster handoff for teams assembling those controlled records.

Avoid releasing a PDF drawing, an editable graphics file, and a spreadsheet with conflicting revisions. Name the governing file and archive the complete release set.

Step 5 — Approve a Production-Intent First Article

Build the sample with the proposed materials, print order, cure, lamination, conversion, tail, and inspection methods. Cosmetic mockups can answer fit questions; they cannot approve electrical or material behavior.

Run the component checks before and after the specified mechanical or environmental exposure. IPC-9204 lists several distinct bend, fold, torsion, and rolling principles, which is why a request for “flex testing” is incomplete. State radius, angle, direction, rate, cycles, conditioning, live monitoring, and failure rule.

Application testing must use the intended interface and electronics. Cömert and Hyttinen's motion-artifact test research demonstrates support and motion mechanics affect surface-electrode behavior. A stationary bench result cannot silently stand in for worn or moving use.

Step 6 — Freeze Approval Evidence and Change Rules

Record the approved artwork, material revisions, process route, test fixtures, software or netlist revision, measurement methods, sample results, deviations, packaging, and signed disposition. Define which future changes need notification, risk review, partial requalification, or full revalidation.

The next lifecycle handoff is the planned guide to prototype-to-pilot and repeat-production controls, where approval evidence becomes a repeatable release and change-control process.

An approved sample without its active files is a souvenir. A released design without a change rule will drift.

4. When a Printed Flexible Electrode Array Is Not the Best Choice

A printed flexible array is a strong option when a thin, patterned component can meet the required geometry, resistance, insulation, mechanics, and conversion plan. It is not the default for every dense or body-conforming interface.

The exit decision should happen before artwork polish. Forcing a technology past its routing or mechanical boundary produces an elegant file and a fragile component.

5. Eight Red Flags That Disqualify a Design or Supplier Response

These red flags override an attractive sample photo or a low quotation:

• No role-labeled channel map — physical sites, references, returns, bias paths, and connector pins cannot be audited.
• A universal trace or spacing limit — the number is not tied to the selected ink, substrate, equipment, cure, and inspection method.
• A generic “ZIF tail” note — no mating part, contact face, thickness, stiffener, or pin-1 definition exists.
• Crossovers added without a layer specification — dielectric material, overlap, registration, cure, isolation, and conditioning are missing.
• “100% tested” with no method — the statement may mean continuity only and says nothing about resistance, geometry, or registration.
• Flexible is sold as stretchable — no strain direction, cycle count, live monitoring, or failure criterion supports the claim.
• Raw-material language is used as a medical claim — “medical,” “biocompatible,” or “FDA approved” appears without final-form evidence and exact regulatory scope.
• No frozen first-article package or change rule — the approved sample cannot be linked to active files, materials, process, fixture, or future substitutions.

6. Drawing and Sample-Approval Checklists

The drawing package should let a new engineer reconstruct the component without relying on a meeting transcript. The approval package should prove what was built and how it was judged.

Drawing package

Use the broader printed medical electrode components page to place the array inside the full interface stack. The released project drawing still controls the quoted component.

Sample approval

• Confirm every file and table uses the released revision.
• Record actual material and process revisions used for the sample.
• Compare active areas, conductor geometry, windows, outline, datums, and tail to the drawing.
• Review visual defects and layer registration at named worst-case locations.
• Test the released netlist, network resistance, continuity, isolation, and deliberate shared nodes.
• Verify connector orientation, insertion, contact engagement, stiffener, retention, and strain transition.
• Run the specified bend, stretch, handling, environmental, or aging exposure with pre/post checks.
• Test the array with the intended interface and electronics under labeled use conditions.
• Record deviations, failed results, disposition, corrective action, and any required rebuild.
• Freeze the approved evidence set and the change-notification rules.

8. Frequently Asked Questions

What is the first step in multi channel printed electrode array design?

The first step in multi channel printed electrode array design is a role-labeled channel map linked to active-area geometry. It should distinguish physical electrodes, electrical nets, acquisition channels, reference or return paths, bias or counter electrodes, connector positions, spares, and test access. Routing should not start until those fields reconcile.

How many connector pins does a multi-channel electrode array need?

Connector position count depends on architecture, not electrode count alone. Count every independent electrode net, shared reference or return, bias, counter, shield, power or control line, identification feature, and reserved position. Then confirm the result against the actual mating connector and electronics schematic.

Is a reference electrode the same as ground?

No. Reference, bias or driven common-mode, return, counter, shield, signal ground, and protective earth can have different electrical and safety roles. The system schematic must define each one. The array drawing should carry those exact net names instead of substituting a generic ground symbol.

When should electrode trace routing use a crossover?

Use a crossover only after one-layer escape analysis demonstrates geometry cannot meet the validated trace, gap, resistance, and mechanical constraints. The crossover then needs a compatible conductor/dielectric system, registered overlap, cure sequence, inspection, isolation test, and environmental qualification. Many clustered crossovers usually justify an architecture review.

Is there a universal minimum trace width or spacing for printed electrode arrays?

No. Minimum trace and gap depend on the chosen ink, substrate, print method, screen or tool, surface preparation, cure, equipment, geometry, and inspection method. Record the supplier's validated capability for the selected stack, then place nominal dimensions and tolerances on the controlled drawing.

Is a flexible electrode array also stretchable?

Not necessarily. PET and PI constructions may bend or wrap while tolerating little in-plane elongation. A stretchable array needs a qualified substrate, conductor, dielectric, adhesive, geometry, and termination that survive the specified strain direction and cycles. Test the complete stack, not the bare film.

Which component tests should a printed electrode array receive?

The component plan normally covers material identity, visual workmanship, dimensions, layer registration, network resistance, continuity, isolation, dielectric coverage, tail and connector geometry, and specified mechanical exposure. Application impedance, signal, electrochemical, stimulation, biological, packaging, and aging tests need the final method and evidence owner.

Does a passing component inspection qualify the finished medical device?

No. Component inspection supports material, geometry, electrical-network, workmanship, and traceability claims within its scope. The legal manufacturer still owns finished-device electronics, interface performance, biological safety, packaging, aging, sterilization when applicable, usability, clinical or analytical evidence, labeling, and regulatory authorization.

What should an OEM send before requesting custom printed electrode-array samples?

Send the channel map, active-area geometry, layer stack, material requirements, conductor and dielectric artwork, netlist, tail and connector drawing, mechanical use state, interface and electronics context, inspection methods and limits, quantities, packaging needs, change rules, and open validation questions.

9. Send the Channel Map and Active-Area Geometry

The fastest useful review begins with two controlled inputs: the role-labeled channel map and the dimensioned active-area geometry. Add the proposed layer stack, actual connector, use state, and acceptance matrix if they exist.

JASPER can review that package as one manufacturing option for custom printed electrode arrays. The same evidence should be requested from any qualified supplier. Send the channel map and active-area geometry for a component-level DFM discussion; finished-device validation and regulatory responsibility remain with the legal manufacturer.

Technical References

• Source: FDA Use of ISO 10993-1 Biological Evaluation Guidance. Accessed 2026.
• Source: ISO 10993-1:2025 Biological Evaluation of Medical Devices. Accessed 2026.
• Source: ISO 14971:2019 Medical Device Risk Management. Accessed 2026.
• Source: FDA Design Control Guidance for Medical Device Manufacturers. Accessed 2026.
• Source: IPC-9257. Accessed 2026.
• Source: ADS1299 biopotential front-end documentation. Accessed 2026.
• Source: 16 working electrodes, a common counter electrode, and a reference electrode. Accessed 2026.
• Source: 5–40 mm inter-electrode spacing in one surface-EMG crosstalk study. Accessed 2026.
• Source: screen-printed PET dry-ECG construction. Accessed 2026.
• Source: 124-electrode flex-rigid ECoG array. Accessed 2026.
• Source: IEC 62899-402-1:2025. Accessed 2026.
• Source: IPC-T-51. Accessed 2026.
• Source: 2022 PET processing research. Accessed 2026.
• Source: IPC-6902. Accessed 2026.
• Source: silver feedlines, carbon electrode structures, and polyimide passivation. Accessed 2026.
• Source: Molex FD19 family datasheet. Accessed 2026.
• Source: final finished form. Accessed 2026.
• Source: ISO 10993-1:2025. Accessed 2026.
• Source: ECG-electrode special-controls guidance. Accessed 2026.
• Source: Quality Management System Regulation. Accessed 2026.
• Source: IPC-9204. Accessed 2026.
• Source: motion-artifact test research. Accessed 2026.
• Source: Henkel's April 2025 LOCTITE ECI 1010 TDS. Accessed 2026.
• Source: Agfa's ORGACON SI-P1000x sheet. Accessed 2026.
• Source: DuPont's ME778 sheet. Accessed 2026.
• Source: Molex FD19 specification 150180001, Rev. C. Accessed 2026.
