A metal nameplate specification should define the service environment, required data, alloy or grade, thickness and geometry, finish, marking mechanism, attachment, inspection, and change control. This guide is for OEM design, quality, manufacturing, and sourcing teams preparing a drawing for review. It sets decision boundaries and test inputs; it does not select one construction for every machine or replace the finished equipment’s regulatory and environmental validation. Ten controlled decisions are usually enough to expose the costly gaps before a first article is cut.
JASPER certifications: ISO 9001, ISO 13485, IATF 16949, and ISO 14001.

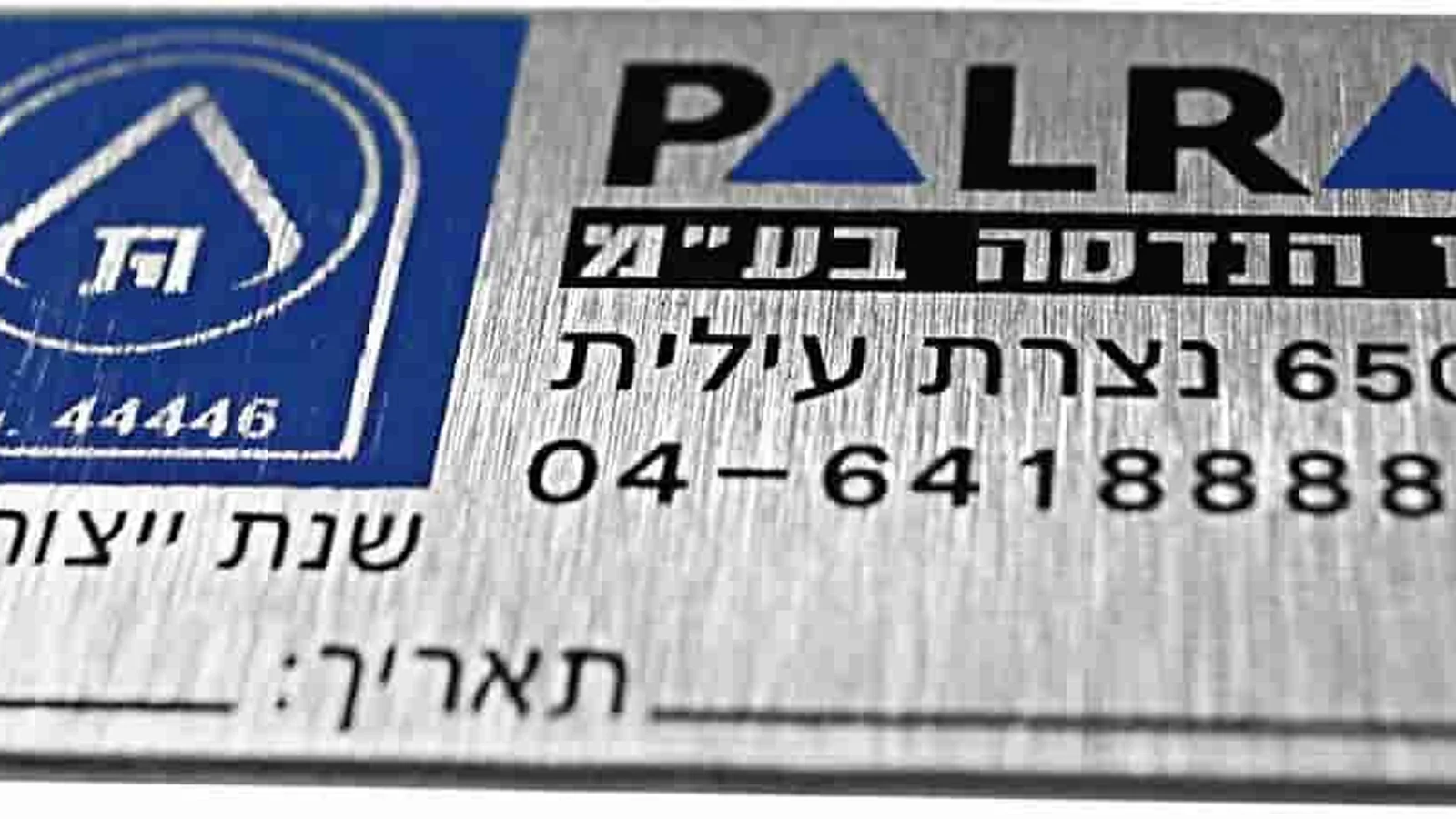

A nameplate fails as an assembly, not as a material label. The metal is only one layer. Stainless steel can remain readable while its fasteners attack an aluminum housing. An adhesive can bond well to bare metal yet release from the powder coat applied over it. A sharp Data Matrix image can still fail because the drawing never fixed its data, quiet zone, or verifier settings.
1. Why industrial metal nameplate design fails at the interfaces
Industrial metal nameplate design succeeds when the drawing controls the whole installed stack. Choosing “aluminum, anodized, adhesive backed” leaves the important variables open: alloy and temper, oxide system, edge finish, graphic mechanism, adhesive family, mating coating, load direction, conditioning, and acceptance threshold.
MIL-DTL-15024G is a useful model because it treats equipment identification plates as defined constructions and separates chemical etching, engraving, stamping, printing, photosensitive anodized aluminum, and laser-generated types. Its dimensions and tests are DoD contract requirements, not generic commercial defaults; the transferable lesson is to name the construction and evidence instead of buying an adjective. The current document is available through DLA ASSIST.
Readable information: fixed artwork + variable data
Protective/visual layer: anodize, coating, fill, ink, or exposed mark
Metal substrate: alloy/temper or grade, thickness, finish, edge condition
Attachment: transfer tape, foam tape, holes/fasteners, studs, tabs, or hybrid
Mating surface: bare metal, paint, powder coat, polymer, texture, curvature
Service system: fluids, UV, heat, cold, vibration, cleaning, inspection
| Weak input | Process consequence | Assembly consequence | Observable failure |
|---|---|---|---|
| “Stainless, brushed” | Grade and grain vary | Glare, color, and corrosion margin change | Cosmetic rejection or localized attack |
| “Permanent laser mark” | Laser mechanism and contrast are left to the shop | Mark behaves differently after cleaning or abrasion | Low contrast or unreadable code |
| “3M adhesive” | Tape and surface preparation remain undefined | Bond sees peel on an unqualified coating | Edge lift or plate loss |
| “Salt spray tested” | No specimen, duration, replicates, or endpoint | Results cannot be tied to the installed design | False confidence rather than acceptance evidence |
Metal is also the wrong answer in some projects. A flexible or tightly curved panel may need a polyester or polycarbonate overlay. A temporary service label may need controlled removability. An electrically insulating, backlit, or touch-sensitive interface usually belongs in a graphic-overlay or HMI construction. The planned graphic overlay materials guide and label nameplate product route cover those alternate media. A rigid plate should not be forced into those roles merely because metal appears durable.
2. The 10-point metal nameplate specification framework
A release-ready specification closes ten decisions in order: environment, content, material, geometry, finish, marking, legibility, mounting, assembly corrosion, and inspection. Each decision needs an owner and an acceptance rule.
2.1 Define the service environment before selecting metal
Record minimum and maximum temperature, thermal cycling, indoor or outdoor exposure, UV, humidity, chlorides, fuels, oils, cleaners, disinfectants, concentrations, contact time, washdown, abrasion, vibration, impact, installation method, and expected inspection interval. Use the planned marine and outdoor equipment application as a prompt, then control the real exposures in the drawing package. Use the marine and outdoor equipment application as an exposure prompt, then control the real conditions in the drawing package. Powder coat and paint are substrates in an adhesive joint, not decorative footnotes.
MIL-STD-810H is an environmental-tailoring framework, not a universal menu of pass tests. If a contract uses it, select the relevant method and project conditions. Otherwise, create an equivalent application profile without borrowing military language.
Good signal: A one-page exposure table names each fluid, concentration, temperature, dwell, frequency, and allowed change.
Red flag: “Harsh outdoor use” is the complete environment statement.
2.2 Separate fixed artwork, variable data, and mandatory content
Define which text comes from engineering, regulatory, brand, and production systems. Data ownership comes first. Fix units, decimal format, language, warning hierarchy, human-readable interpretation, serial rules, duplicate prevention, and the database of record. Keep variable fields out of flattened artwork.
MIL-STD-130 governs free-text and machine-readable identification for U.S. military property when a contract invokes it. It is not a universal serial-number template. Other equipment standards may control ratings or warnings; the OEM must flow those requirements into the nameplate drawing.
Good signal: The data template has field definitions, valid examples, length limits, source system, and reconciliation rule.
Red flag: A screenshot is the only record of the required rating data.
2.3 Write a complete aluminum or stainless material callout
“Aluminum” and “stainless” are families. ASTM B209/B209M covers aluminum sheet and plate by alloy, temper, and finish; ASTM A240/A240M-26 covers stainless plate, sheet, and strip by chemistry and mechanical properties. The planned aluminum versus stainless steel nameplate comparison expands that decision. A finished-part callout must add thickness, surface finish, and fabrication requirements.
| Candidate route | Useful starting condition | Do not select it when… |
|---|---|---|
| Anodizing-oriented aluminum, such as a verified 5005 route | Low mass, controlled decorative/protective anodizing, fine graphics | The finisher has not confirmed alloy/temper appearance or the chloride/chemical profile is unresolved |
| Formable aluminum, such as a verified 5052 route | Formed features or higher handling stiffness with corrosion-aware design | Cosmetic anodize uniformity is assumed without an approved sample |
| 304 stainless to ASTM A240/A240M | General sheet construction with a defined, lower-chloride environment | Salt deposits, crevices, or cleaning chemistry have not been evaluated |
| 316 stainless to ASTM A240/A240M | More margin than 304 in many chloride-bearing conditions | The team treats “316” as corrosion-proof or ignores crevices and finish |
| Brass or another decorative alloy | Appearance is the primary function and patina is acceptable | Stable color, low mass, or galvanic isolation is a controlling requirement |
The Aluminum Association lists anodized 5005 sheet and 5052 electronics applications as examples, not automatic nameplate selections. Nickel Institute guidance likewise ties 304/316 selection to chloride severity, finish, exposure, and cleaning rather than a grade nickname.
5052-H32 aluminum at 0.8 mm nominal and 316L stainless with a No. 4 finish at 0.8 mm nominal are practical comparison constructions. Release the final material, tolerance, finish, and evidence on the project drawing after DFM review.
Good signal: The callout names material standard, edition policy, alloy/temper or grade/UNS, thickness, finish, and required evidence.
Red flag: “Marine-grade stainless” appears without chemistry, temperature, crevice, or cleaning inputs.
2.4 Control thickness, flatness, edges, holes, and studs
Thickness follows function: unsupported span, handling, forming, visible edge, hole or stud attachment, flatness, mass, and adhesive stress. Inspection needs a datum scheme. Put overall profile, corner radii, flatness/bow, hole diameter and position, countersink, burr direction and limit, edge break, stud type and position, and the cosmetic face on a controlled drawing.
ASME Y14.5-2018 supplies a common dimensioning and tolerancing language when invoked. Do not mix ASME and ISO defaults silently. State the unit system and conversion policy; equivalent inch and SI values can produce different acceptance limits when rounded.
Good signal: Datums locate every hole or stud from functional assembly features, and inspection can reproduce the setup.
Red flag: The artwork file carries dimensions that conflict with the mechanical drawing.
2.5 Specify finish as a measurable surface, not a color word
Define the visible side, grain direction, base finish, pretreatment, anodic or coating system, sealed/unsealed state where relevant, color reference, gloss or roughness method, masking, exposed edges, and approved visual standard. “Silver,” “matte,” and “brushed” are not inspection methods.
ISO 7599:2018 covers decorative and protective anodic oxidation; ISO 10074:2021 treats hard anodizing as a separate engineering coating. MIL-PRF-8625 types/classes apply only when invoked. If printed graphics are part of the finish system, align the ink, pretreatment, and clear layer with the graphic overlay printing process review.
Good signal: The drawing names a finish system, measurable tolerance, lighting/measurement condition, and physical master precedence.
Red flag: An RGB screen value is the only color requirement for a metallic surface.
2.6 Select the marking mechanism for the required information
“Laser etched” is incomplete. TRUMPF separates annealing, engraving, ablation, black marking, and other laser procedures; the resulting depth, contrast, surface change, and corrosion behavior differ. SAE AS478S and MIL-DTL-15024G provide broader controlled method taxonomies.
| Marking route | Strong fit | Required caution |
|---|---|---|
| Chemical etch with optional fill | Fixed text or graphics needing recessed definition | Etch depth, undercut, minimum stroke, fill chemistry, and edge attack |
| Mechanical engraving | Deep grooves, tactile marks, modest data variation | Tool radius, burrs, plate distortion, fill, and minimum feature size |
| Defined laser process | Variable serials, codes, or localized fixed marks | Laser mechanism, material/finish pairing, contrast, heat effect, and acceptance sample |
| Screen or digital print | Multiple colors, logos, larger visual fields | Ink/pretreatment/clear system and project-specific UV, fluid, adhesion, and abrasion qualification |
| Photosensitive anodized aluminum | Fine fixed or variable information within an aluminum system | Proprietary process specification, seal, edge condition, and actual environment |
| Stamp, emboss, or deboss | Tactile, large, repetitive characters | Distortion, backside witness, spacing, flatness, and material thickness |
Screen printing is not universally “indoor only.” MIL-DTL-15024G restricts its Type E printed construction to protected locations, but a different exterior ink/metal/clear system can be qualified to a different specification. The planned comparison of etched, anodized, and printed metal nameplates keeps those process boundaries separate. The drawing should control the actual system instead of generalizing one contract rule.
Good signal: The method callout defines mechanism, fixed/variable content, minimum feature, depth or contrast target, and validation route.
Red flag: A shop may substitute printing, ablation, or annealing because all are called “laser/print permanent.”
2.7 Make legibility and machine readability inspectable
For human text, define character height or functional viewing requirement, stroke, spacing, contrast, finish glare, orientation, and critical content hierarchy. For codes, add symbology, encoded data, X-dimension, quiet zone, location, human-readable text, and a minimum verifier result under named settings.
ISO/IEC 15415:2024 defines measurement and grading for 2D symbols; ISO/IEC 15416:2025 addresses linear symbols. GS1 guidance requires the grade to be reported with aperture, illumination, and angle. A successful phone scan is a useful demonstration, not a controlled acceptance test.
Good signal: Production reconciles 100% of critical serial data and records verifier results against the released template.
Red flag: The code is approved from a magnified PDF but never verified on finished metal.
2.8 Match mounting to the real surface and load
Stainless nameplate mounting and aluminum attachment should be selected as joints, not catalog options. Adhesive is clean and low profile, but its result depends on the actual coating, roughness, surface energy, preparation, pressure, time, temperature, edge exposure, curvature, and peel/shear load.
| Mounting route | Best fit | Drawing and validation inputs | Not the best choice when… |
|---|---|---|---|
| Thin transfer adhesive | Smooth, flat, supported plate with controlled surface | Exact product, coverage, application temperature, cleaning, pressure, dwell, peel/shear conditioning | Rough surface, high peel, contamination, or field replacement dominates |
| Foam adhesive | Minor texture or gap accommodation | Foam thickness, edge seal, compression, load direction, temperature, fluid exposure | The plate can be pried, the edge stays wet, or thickness changes fit |
| Holes plus screws/rivets | Vibration, service removal, or positive retention | Hole/fastener geometry, washer/locking, torque or set method, sealing, distortion, isolation | Drilling is prohibited or cosmetic-face deformation is unacceptable |
| Welded or bonded studs | Hidden hardware and anti-rotation | Stud alloy, process, thread, height, position, perpendicularity, pull/torque test, face witness | Thin decorative faces cannot tolerate heat or read-through |
| Tabs or hybrid retention | Assembly-line location or redundant retention | Bend geometry, slot fit, insertion direction, secondary retention, cycle test | Access, tolerance stack, or field repair is poor |
The 3M VHB Design Guide requires clean, dry surfaces and documents preparation, pressure, and bond build; it also labels its technical values representative rather than specification data. Use the planned materials and adhesives capability page to collect the project-specific substrate and adhesive review. ASTM D3330 peel results and ASTM D3654 shear results are useful only when the substrate, conditioning, geometry, rate/load, and acceptance value match the design question.
Good signal: Adhesive samples are bonded to production-representative paint or powder coat, then conditioned and loaded in the joint’s real failure direction.
Red flag: A tape is approved on standard stainless steel while production bonds to textured powder coat.
2.9 Check galvanic contact, crevices, drainage, and cleaning access
Dissimilar metals need both electrical contact and a conductive environment to form a galvanic couple. MIL-STD-889 defines compatibility and protection for conductive materials; AMPP explains how material potential and anode/cathode area ratio affect attack.
For a stainless plate or fastener on aluminum, review isolation washers, coatings, sealants, drainage, trapped cleaner, edge damage, and maintainability. Do not assume every stainless/aluminum pair fails, and do not call it safe because the metals look intact when dry. Test the finished joint in the specified electrolyte and geometry where corrosion risk controls the decision.
Good signal: The drawing identifies every conductive interface and the corrosion-control mechanism.
Red flag: A large stainless plate is clamped to a small exposed aluminum area in wet service with no isolation review.
2.10 Turn “durable” into a sample-approval and validation matrix
Each test needs a specimen, conditioning, method, settings, duration, replicates, measurement, acceptance threshold, and owner. No threshold, no test. Use the quality and testing review to map those requirements to available evidence; do not infer a capability from this guide.
| Characteristic | Representative evidence | Acceptance must state |
|---|---|---|
| Material identity | Certificate or trace record when required | Standard, grade/alloy/temper, lot link, document review rule |
| Dimensions and attachment | FAI report and calibrated measurement | Datums, method, uncertainty rule, sample size, every drawing limit |
| Appearance | Approved master plus instrument where useful | Lighting, viewing geometry, color equation, gloss/texture, defect zones |
| Coating/mark adhesion | ASTM D3359 or a product-specific method | Cut method/tape, operator controls, rating, preconditioning |
| Abrasion | ASTM D4060 for applicable organic coatings or a construction-specific method | Wheel, load, cycles, resurfacing, endpoint, allowed loss |
| Code quality | ISO/IEC 15415 or 15416 verifier record | Symbology, grade, aperture, light, angle, sample/100% rule |
| Adhesive joint | Actual assembly plus peel/shear or functional load | Surface, preparation, dwell, temperature/fluid conditioning, load, failure mode |
| Corrosion/weathering | ISO 9227, ASTM B117, UV or cyclic method only when relevant | Exact cycle, exposure, replicates, scribe/edge treatment, inspection, pass/fail |
ISO 9227:2022 does not choose specimen dimensions, exposure period, or interpretation . Salt spray is not intended to rank materials or predict long-term corrosion resistance. Stand-alone ASTM B117-26 salt-fog results seldom correlate with natural-environment performance. Hours are test conditions, not outdoor years.
Good signal: A first article closes every drawing characteristic, and the validation plan tests the installed stack under project conditions.
Red flag: “Passed salt spray” appears without a report, specimen construction, duration, and acceptance rule.
3. Step-by-step buyer process
The buyer process should move from application evidence to a controlled release, with deviations resolved before production data or tooling is locked. Six steps keep engineering intent, supplier process, and inspection aligned.
Step 1 — Classify the environment and information
Build the exposure table from Section 2.1. Mark each data element as fixed, variable, safety/regulatory, service, or brand content. Identify the governing equipment/customer document and its edition. Decide what must remain readable at the defined inspection interval and what constitutes failure.
Step 2 — Issue one controlled drawing package
| Package item | Minimum content |
|---|---|
| Mechanical drawing | Part/revision, units, datums, profile, thickness, flatness, holes/studs, edge/burr, material, finish, visible face |
| Artwork | Vector master, outlined fonts, color references, finish zones, minimum features, orientation, revision |
| Variable-data template | Field names, source, valid example, length/format, serialization, code settings, human-readable text |
| Environment and validation plan | Actual surfaces, fluids, temperature, cycles, UV/salt relevance, test specimens, acceptance criteria |
| Packaging/handling note | Face protection, stacking, liner/tab orientation, cleanliness, lot and serial trace |
The drawing is authoritative for geometry; the artwork is authoritative for visual content. State how conflicts are resolved.
Step 3 — Run capability review and log every deviation
Ask the producer to confirm each callout as written. Record proposed alloy, finish, marking, adhesive, or tolerance substitutions as deviations with their effect on appearance, function, evidence, and revalidation. “Equivalent” is not a material or process definition.
Step 4 — Approve representative first articles
Use production-intent metal, finish, graphics, attachment, and variable-data method. Inspect dimensions, cosmetic zones, mark depth/contrast, code verification, serial correctness, liner/adhesive coverage, stud or hole geometry, and packaging. The planned graphic overlay manufacturer page should connect that evidence to repeat production, while the HMI front-panel assembly case supplies related assembly context. A flat color chip cannot approve a formed, brushed, or anodized part by itself.
Step 5 — Validate the installed assembly
Bond or fasten samples to the real enclosure finish using the planned installation process. Apply project temperatures, fluids, cleaning, UV, vibration, abrasion, and corrosion conditions. Inspect the defined failure modes after conditioning and functional load. Component screening does not replace finished-equipment validation.
Step 6 — Release production and change controls
Freeze approved masters, process route, critical materials, inspection plan, serialization ownership, record retention, and engineering change-control triggers. Define which characteristics receive 100% checks—usually critical variable data—and which use a justified sampling plan. A change to paint, anodizer, laser mechanism, adhesive, or mill finish can require renewed approval even when the part number does not change.
4. Red flags that disqualify a specification or response
- Bare material names — “aluminum,” “stainless,” or “brass” without a governing specification and grade leaves chemistry and product form open.
- Undefined permanence — no mark mechanism, acceptance sample, or post-conditioning legibility criterion.
- Adhesive by brand only — no exact construction, substrate, preparation, application, dwell, or load case.
- Mixed drawing and artwork revisions — geometry and graphics can no longer be traced to one approved configuration.
- Universal compliance language — a material or process is said to “meet” a product standard without the contract scope and report.
- Test hours without endpoints — exposure duration is presented as a service-life claim.
- Uncontrolled variable data — no source-of-truth, duplicate prevention, reconciliation, or verifier rule.
- Silent substitution rights — the producer may change metal, finish, ink, laser process, or adhesive without written approval.
5. Frequently asked questions
What should a metal nameplate specification include?
A metal nameplate specification should include environment, required content, material standard and grade, thickness and tolerances, finish, marking method, fixed and variable data, mounting, mating surface, inspection, validation, packaging, revision, and change control. Each functional requirement needs a measurable acceptance rule.
How should an aluminum nameplate specification identify the material?
Identify the governing sheet standard, alloy, temper, nominal thickness and tolerance, surface finish, visible side, and any anodic or conversion coating. ASTM B209/B209M is a common U.S. material route, but the drawing must still name the alloy/temper and finished-part requirements.
When is stainless steel a better choice than anodized aluminum?
Stainless steel may be preferable when stiffness, abrasion, heat, or the verified chemical/chloride environment exceeds the selected aluminum system. Grade, finish, crevices, deposits, and cleaning still matter. Stainless is not automatically better where mass, galvanic coupling, forming, or detailed anodized graphics control the design.
How thick should an industrial metal nameplate be?
There is no universal thickness. Select it from unsupported span, flatness, handling, forming, hole/stud geometry, visible edge, mass, and adhesive load. The 0.8 mm example in this guide is initial and must be confirmed against JASPER’s actual process range and the project drawing.
Which marking method is best for serial numbers and Data Matrix codes?
A defined laser process or photosensitive anodized-aluminum process can support variable data, but neither is automatically best. Choose from substrate/finish compatibility, feature size, contrast, abrasion and fluid exposure, cycle time, and verifier results. Control the data source and inspect the finished symbol to ISO/IEC 15415 where applicable.
When should stainless nameplate mounting use adhesive, holes, or studs?
Use adhesive for a smooth, controlled surface and a favorable peel/shear load; use holes and fasteners for positive retention or service removal; consider studs for hidden hardware. Validate actual finishes, vibration, sealing, distortion, galvanic contact, and installation access before release.
Which tests prove that a metal nameplate is suitable outdoors?
No single accelerated test proves outdoor life. Build a project matrix covering relevant UV/moisture, temperature, fluids, abrasion, adhesion, corrosion, and installed retention. ISO 9227 or ASTM B117 can reveal coating defects under defined salt-fog conditions, but neither converts test hours into field years.
How should a drawing control color, finish, and grain direction?
Name the base finish and visible side, show grain direction, identify pretreatment and coating/anodize, set color and gloss or roughness tolerances with measurement conditions, and reference an approved physical master. State which requirement wins if instrument readings and visual acceptance disagree.
What files should an OEM send for a metal nameplate design review?
Send the controlled mechanical drawing, vector artwork, variable-data template, environment profile, governing standards, mating-surface details, installation process, validation matrix, cosmetic master requirements, packaging notes, and required records. Flag initial values and requested substitutions rather than burying them in email.
6. What to do next
Technical References
- Source: DLA ASSIST. Accessed 2026.
- Source: MIL-STD-130. Accessed 2026.
- Source: ASTM B209/B209M. Accessed 2026.
- Source: ASTM A240/A240M-26. Accessed 2026.
- Source: ASME Y14.5-2018. Accessed 2026.
- Source: ISO 7599:2018. Accessed 2026.
- Source: ISO 10074:2021. Accessed 2026.
- Source: annealing, engraving, ablation, black marking, and other laser procedures. Accessed 2026.
- Source: ISO/IEC 15415:2024. Accessed 2026.
- Source: ISO/IEC 15416:2025. Accessed 2026.
- Source: 3M VHB Design Guide. Accessed 2026.
- Source: MIL-STD-889. Accessed 2026.
- Source: AMPP. Accessed 2026.
- Source: ASTM B117-26. Accessed 2026.
Review the overlay construction before release
Send the drawing, artwork, material stack, mounting surface, environment, and acceptance plan for a construction-specific engineering review.
