For aluminum vs stainless steel nameplates, aluminum is usually the better starting point when low mass, formed geometry, color graphics, and controlled exposure matter. Stainless steel is usually safer when impact, abrasive handling, chloride contamination, aggressive cleaning, or difficult replacement dominates. The boundary is not simply indoor versus outdoor. OEM teams must compare the complete nameplate system: alloy or grade, thickness, finish, marking process, mounting interface, equipment surface, and actual operating environment. If those inputs are unknown, neither material is ready for release.
Engineers and buyers can use this guide to plan a metal nameplate. It assigns no universal life or compliance status.
Aluminum vs stainless steel nameplates: the quick verdict
Aluminum leads for weight-sensitive assemblies, formed plates, and graphic-rich identification. Stainless leads when physical damage or a demanding wet environment makes replacement risk more important than mass.
| Decision dimension | Aluminum usually leads when ... | Stainless steel usually leads when ... | Boundary that must be checked |
|---|---|---|---|
| Corrosion | Exposure is controlled, the selected alloy and finish are compatible, and cut edges do not stay wet | Chlorides, washdown, or industrial contamination justify 304, 316/316L, or a higher grade | Stainless is not one grade; 316 is not immune to chloride attack |
| Weight | Added mass affects a cover, moving assembly, handheld product, vehicle, or repeated fleet installation | Plate mass is minor compared with the equipment and added section stiffness matters | Compare at the drawing's actual thickness, not equal material names |
| Temperature | The complete aluminum finish, image, and mounting stack passes the specified temperature profile | Bare-metal temperature margin is important and the mark and mount can match it | Ink, fill, coating, adhesive, and equipment surface may fail before either metal |
| Abrasion and impact | Wear is light, the image is protected, and low mass matters more than dent margin | Tools, grit, scraping, or handling can strike the plate | Test the finished mark; substrate hardness alone does not prove legibility |
| Appearance | Color, fine graphics, and an anodic or printed construction are priorities | A brushed, polished, or etched metal appearance is preferred | Define finish direction, contrast, gloss, color, and acceptance sample |
| Marking | Anodic imaging, printing, engraving, etching, or variable data fits the process | Etch-and-fill, engraving, stamping, or a qualified laser process fits the mark | Process parameters and mark depth/contrast govern more than substrate name |
| Mounting | Low mass helps adhesive mounting or the plate matches an aluminum enclosure | Mechanical retention and tamper resistance dominate | Dissimilar-metal contact plus electrolyte can create galvanic corrosion |
| Lifecycle cost | Exposure is moderate, replacement is accessible, and converted construction is simple | Failure would force shutdown, difficult access, reinspection, or safety-data restoration | Compare installed and replacement cost, not raw sheet price alone |
Neither is valid when concentrated chemicals, severe marine splash, hot chloride deposits, or an end-product standard demands another alloy, a nonmetallic construction, or protected installation.
A metal nameplate material comparison starts with the whole system
A nameplate is not just a sheet coupon. The useful comparison unit is a stack with interacting layers and interfaces:
Substrate alloy or grade → surface preparation or conversion → fixed and variable mark → optional protective layer → adhesive or fastener → equipment surface → operating environment
Failure can start at any arrow. A stainless substrate may remain intact while a surface ink becomes unreadable. An anodized aluminum equipment label may keep its image while moisture reaches a cut edge or mounting hole. A strong plate may still detach because the equipment coating, adhesive, or fastener joint was not qualified.
Representative material data are a comparison basis, not a product specification
The word aluminum omits alloy and temper. The Aluminum Association distinguishes alloy families, and ASTM B209/B209M covers sheet and plate in listed alloys and tempers. This article uses 3003-H14 only as a representative general-purpose sheet reference.
The word stainless also omits the decision that often matters most. ASTM A240/A240M covers stainless sheet and plate for general applications, but the purchase drawing still needs a grade. Type 304 and Type 316/316L are not interchangeable in every chloride-bearing environment.
| Representative basis | 3003-H14 aluminum | Type 304 stainless | Type 316/316L stainless |
|---|---|---|---|
| Product-data source | Hulamin 3003 data sheet | Outokumpu Core data sheet | Outokumpu Supra data sheet |
| Density | 2.73 g/cm³ | 7.9 g/cm³ | 8.0 g/cm³ |
| Mean thermal expansion, representative range | 23.2 × 10^-6/K | 16.0 × 10^-6/K from 20–100°C | 16.0 × 10^-6/K from 20–100°C |
| Corrosion starting point | Alloy, finish, edge condition, electrolyte, and contamination govern | Useful baseline for many mild environments | Molybdenum provides more chloride margin than 304 |
| Specification warning | Temper and product thickness affect properties | Finish and fabrication affect performance | Marine splash, heat, crevices, or deposits can exceed 316L |
Those values support comparison only. Production needs a material certificate and current purchase specification.
Equal-geometry mass shows the weight difference cleanly
For an illustrative 100 × 50 × 0.5 mm plate, the substrate volume is 2.5 cm³. Multiplying that volume by the cited densities gives the following calculated masses:
| Material | Calculated substrate mass | Relative to 3003-H14 |
|---|---|---|
| 3003-H14 aluminum | 6.8 g | 1.00× |
| Type 304 stainless | 19.8 g | 2.89× |
| Type 316 stainless | 20.0 g | 2.93× |
The calculation excludes ink, coating, adhesive, holes, and tolerance, and it holds thickness constant. Actual drawing geometry can change the result.
Corrosion selection depends on chemistry, geometry, and mounting
Corrosion is a system response, not a ranking printed on a material family. The alloy or grade, surface finish, electrolyte, temperature, contamination, crevices, cut edges, fasteners, and cleaning cycle all change the result.
An aluminum equipment label needs an alloy and finish boundary
Aluminum forms a protective oxide film in air. European Aluminium places the stable range of that film at approximately pH 4.5–8.5, while also warning that chloride ions, impurities, temperature, exposure time, design, and coating condition can change performance. Strong acid or alkali can dissolve the film, and chloride can promote localized attack. The pH range is therefore a screening clue, not a guarantee for a finished nameplate. (European Aluminium design manual)
Anodizing can add a controlled oxide construction, but anodized is not a complete requirement. ISO 7599:2018 covers decorative and protective anodic coatings and identifies characteristic properties and test methods. MIL-PRF-8625 distinguishes sulfuric-acid Type II from hard-anodic Type III for non-architectural applications. Neither reference proves that an unspecified plate, dye, image, seal, cut edge, or adhesive will survive a project.

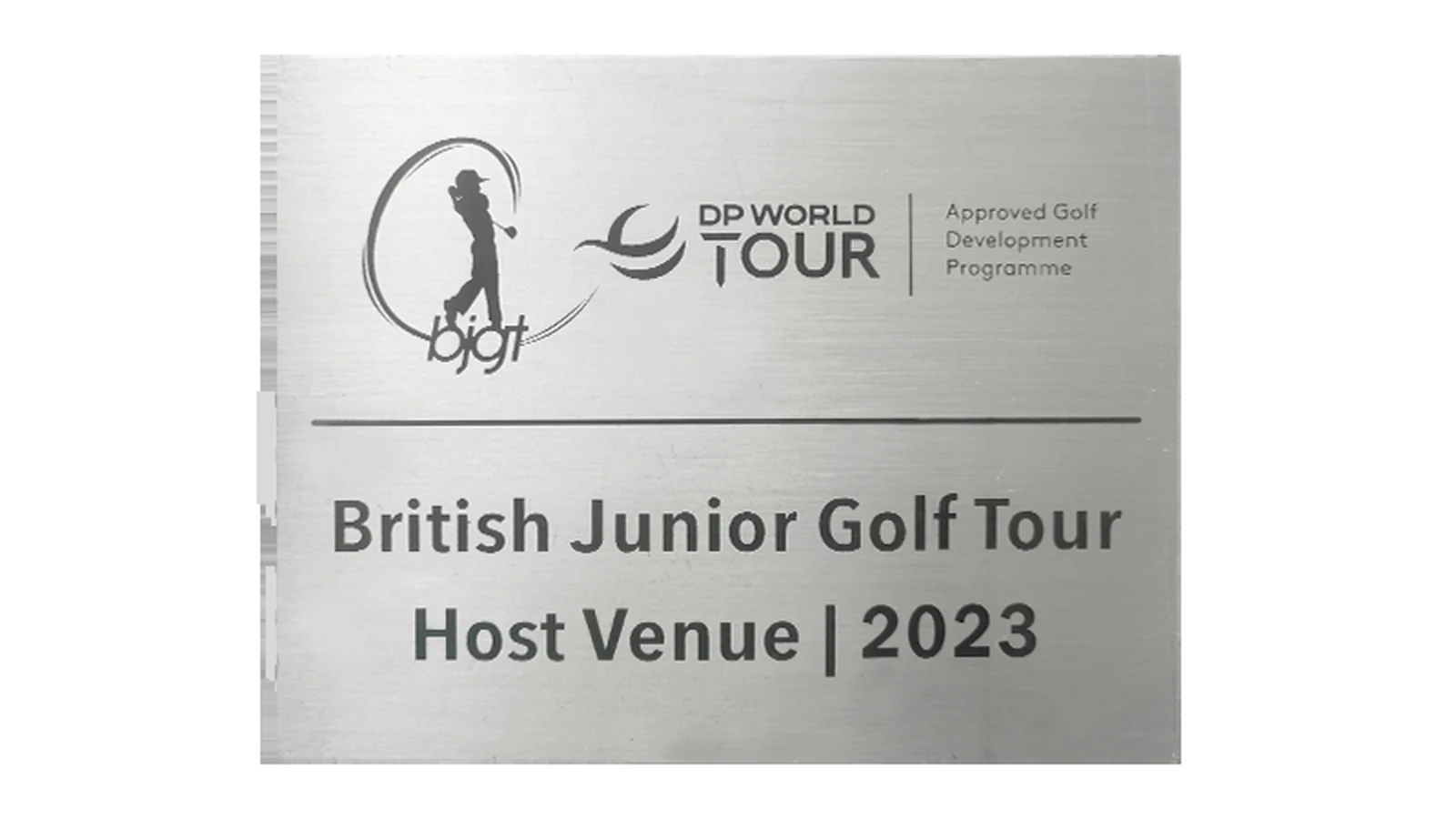

A stainless industrial nameplate still needs the correct grade
Type 304 is a rational baseline for many indoor, rural, and light-urban conditions. Type 316/316L adds molybdenum and usually offers more resistance to chloride pitting and crevice corrosion. The Nickel Institute and Outokumpu Supra data both preserve an important boundary: finish, deposits, cleaning, temperature, humidity, crevices, and chloride loading still matter. Aggressive marine splash can require a grade above 316L.
Passivation may be part of a stainless process plan. ASTM A967/A967M-25 covers chemical passivation treatments and verification options for stainless parts. It does not identify the grade, certify the graphic, or supply a field-life number.
Aluminum-to-stainless contact needs a galvanic review
AMPP defines galvanic corrosion around three conditions: dissimilar conductive materials, electrical contact, and a corrosive electrolyte. Once that cell forms, the anodic member corrodes faster. A small anodic area coupled to a large cathodic area is especially unfavorable because current concentrates on the smaller area.
That mechanism matters when a stainless plate or fastener sits on an aluminum enclosure in a wet location. Electrical isolation, continuous barrier layers, sealed holes, drainage, protected cut edges, and a favorable exposed-area relationship can reduce risk. These are design responses, not blanket proof that one fastener or adhesive solves every assembly.
For marine and outdoor equipment, review the installed joint rather than the loose plate. The relevant failure chain is:
Moisture and salt reach an edge or hole → a conductive path bridges dissimilar metals → local corrosion starts or a coating lifts → the mark loses contrast or the plate loosens → identification becomes unreliable → replacement, inspection, or downtime follows
Weight, temperature, impact, and abrasion are separate decisions
Stainless is nearly three times as dense as the representative aluminum at equal geometry, but density is not dent resistance. Section stiffness depends strongly on thickness and shape; strength depends on alloy, temper, grade, and product condition. A sample impact or handling test is more useful than calling either material indestructible.
Temperature needs the same discipline. The representative coefficients confirm that 3003-H14 expands more than 304 or 316 across the same temperature change. Differential movement can load an adhesive or constrained mount. Yet thermal expansion is only one limit. The complete stack can contain a surface image, color fill, organic coating, adhesive, and painted equipment surface, each with its own range.
| Observed damage | Likely governing element | Better validation question |
|---|---|---|
| Plate dents or bends | Substrate grade, temper, thickness, support span | Does the installed sample remain flat and legible after the defined impact? |
| Surface becomes hazy or scratched | Finish or protective layer | Does the specified rub/abrasion exposure preserve contrast and critical text? |
| Filled recess loses color | Fill chemistry, etch depth, cure, cleaner | Does the actual cleaner remove or soften the fill after repeated exposure? |
| Code no longer scans | Mark contrast, cell size, surface glare, wear | Does the marked code retain the drawing's verification grade under the specified lighting? |
| Plate lifts or creeps | Adhesive, surface energy, contamination, thermal movement | Does the assembled joint pass temperature change and chemical conditioning on the real enclosure finish? |
| Corrosion begins at holes | Cut-edge protection, electrolyte trap, dissimilar fastener | Do installed specimens drain, dry, and remain electrically isolated where required? |
For an organic graphic or coating on a rigid panel, ASTM D4060-25 can support a controlled abrasion comparison. Its result depends on the wheel, load, debris, coating, and test conditions. It is not a universal score for bare aluminum against bare stainless.
Appearance and marking compatibility depend on the finished mark
Both metals can carry fixed legends, serialized data, and machine-readable symbols, but their best process routes differ by design.
Aluminum can support printed, engraved, etched, stamped, or anodic-image constructions. ISO 7599 separates decorative/protective anodizing from hard anodizing used primarily for wear resistance. That distinction prevents a common error: a decorative color sample does not automatically carry a hard-anodize abrasion claim.
Stainless can support etch-and-fill, engraving, stamping, surface printing, or a qualified laser process. The finish—such as 2B, brushed, or polished—changes glare, texture, appearance, and local corrosion behavior. Stainless passivation and mark creation are different process controls; one does not validate the other.
Variable data add another acceptance layer. If the drawing contains a directly marked Data Matrix or QR-type symbol, the mark must be checked under the intended imaging condition. ISO/IEC 29158:2025 defines a direct-part-mark quality method that modifies the ISO/IEC 15415 approach. A visually dark mark is not automatically a verified, production-readable code.
The drawing should name the process outcome rather than only the machine: minimum character size, stroke width, contrast, finish direction, variable-data format, human-readable text, code size, quiet zone, verification method, and post-conditioning acceptance. That gives a converter a measurable target.
Lifecycle cost is converted cost plus failure consequence
Raw metal price does not settle this comparison. A useful project model is:
Total converted cost = finished plate + marking + tooling/setup + mounting + incoming inspection + expected replacement events × (replacement plate + access labor + downtime + reinspection)
Aluminum may lead when low mass and moderate exposure allow a simpler construction. A stainless industrial nameplate may lead when failure would force a shutdown, field visit, guarded-area entry, or safety-data restoration. A higher substrate cost can still reduce total cost after replacement consequence and probability are estimated.
Stainless is not the best choice when its added mass, forming difficulty, finish, or wet dissimilar-metal interface creates more project risk than its corrosion margin removes. Aluminum is not the best choice when strong acid or alkali, sustained chloride contamination, deep abrasion, or impact exceeds a verified finished construction. In either case, an unsupported life claim is just a future corrective-action report wearing a nice font.
Decision matrix and sample validation plan
Use the matrix for concept selection, then release production only after the actual construction passes project acceptance.
| Project condition | Starting choice | Why | Evidence required before release |
|---|---|---|---|
| Dry indoor enclosure; color graphics; low replacement consequence | Finished aluminum | Low mass and broad graphic routes | Alloy/temper certificate, finish definition, color/contrast sample, attachment test |
| Mobile or weight-sensitive equipment | Aluminum at drawing thickness | Equal-geometry mass is far lower | Installed mass, bend/handling test, attachment performance |
| Indoor industrial area with routine contact and little chloride | 304 stainless or qualified aluminum | Both can work; physical abuse and finish drive the choice | Cleaner list, abrasion criterion, mounted sample |
| Coastal atmosphere without direct splash | 316/316L starting point, or qualified protected aluminum | 316 adds chloride margin; aluminum system may still pass | Deposit/cleaning assumptions, finish, crevice review, exposure test |
| Marine splash, hot chloride deposits, or persistent crevices | No automatic winner | Conditions may exceed 316L and common aluminum finishes | Corrosion specialist review, higher-alloy or protected alternatives, installed-coupon plan |
| Stainless plate on an aluminum housing where moisture can enter | Electrically isolated construction | Breaks or limits the galvanic circuit | Barrier continuity, edge/hole sealing, drainage, installed-joint exposure |
| Frequent abrasive cleaning or tool contact | Recessed/embedded mark on a qualified substrate | Finished mark, not substrate name, governs legibility | Defined abrasion/rub method and post-test text/code criterion |
| High or cycling temperature | Construction with the lowest-layer rating verified | Metal headline temperature is incomplete | Stack material data plus IEC temperature-change test on mounted samples |
Test matrix for a finished nameplate
The OEM should choose severities from service conditions, not from a generic blog table. JASPER's quality and testing route can support project discussion, but no specific capability or test result is assumed here.
| Risk | Specimen | Candidate method | Acceptance evidence | Limitation to record |
|---|---|---|---|---|
| Coating or graphic abrasion | Finished plate with production ink, fill, and cure | ASTM D4060 when an organic coating on a rigid panel fits the scope | Critical text remains legible; agreed contrast or mass/appearance criterion | Wheel, load, cycles, conditioning, and evaluation must match |
| Coating adhesion | Finished coating on production metal and pretreatment | ASTM D3359-23 | Agreed rating with failure mode photographed | Method resolves lower adhesion levels; it does not prove field life |
| Salt-fog quality check | Finished plate, cut edges, holes, and mounted joint | ASTM B117-26 or ISO 9227:2022, only if the product plan calls for it | Defined corrosion, blister, adhesion, and legibility limits | Hours cannot be converted to years or used to rank unrelated materials |
| Temperature change | Plate mounted to the actual equipment finish | IEC 60068-2-14:2023 profile selected by OEM | No lift, creep, distortion, crack, or loss of legibility | Standard provides methods; the project owns severity and acceptance |
| Cleaner and chemical contact | Finished plate with actual fluids, concentration, dwell, temperature, and rinse | Project-specific wipe, splash, or immersion protocol | No defined color shift, softening, corrosion, edge attack, or code loss | Substitute chemicals or unknown mixtures invalidate the conclusion |
| Direct-mark code readability | Production-marked code on final finish | ISO/IEC 29158:2025 where applicable | Drawing-specified DPM grade before and after conditioning | Lighting, geometry, verifier setup, and code specification must be fixed |
| Galvanic and crevice exposure | Installed joint with real fastener/barrier/adhesive and housing metal | Project exposure reproducing wetting, salt, drainage, and drying | No unacceptable attack at edges, holes, or barrier defects | Loose material coupons cannot represent the installed area ratio or crevice |
ASTM B117-26 says stand-alone salt-fog results seldom correlate with natural exposure. ISO 9227:2022 goes further: its salt-spray methods are not intended to rank different materials or predict long-term corrosion resistance. A valid plan compares complete, equivalently prepared constructions and states what constitutes failure.
Choose a metal nameplate material from complete project inputs
A converter can make a defensible sample only from a defensible input package. The drawing and request should include:
- Plate function: branding, rating data, warning, asset identification, operating instruction, or machine-readable data.
- Applicable end-product, customer, or regulatory marking requirement.
- Substrate alloy and temper, or stainless grade, tied to the current material specification.
- Thickness, flatness, dimensions, corner radii, edge condition, holes, and dimensional tolerances.
- Surface finish, finish direction, pretreatment, anodic or passivation requirement, and appearance sample.
- Fixed legend artwork plus variable-data fields, fonts, minimum stroke, contrast, color, and serialization rules.
- Barcode or 2D-symbol specification, size, quiet zone, human-readable content, and verification grade.
- Mounting method, fastener alloy, adhesive construction, equipment substrate, equipment coating, and available bond area.
- Temperature minimum/maximum, rate of change, humidity, UV, water, salt, dust, impact, and abrasion exposure.
- Every cleaner, process fluid, lubricant, concentration, temperature, dwell time, frequency, and rinse method.
- Required samples, conditioning sequence, acceptance criteria, sampling plan, and inspection and traceability plan.
- Packaging and installation controls that prevent scratches, contamination, bent corners, and wrong serial data.
Freeze the operating inputs, choose a candidate construction, and approve an installed sample against the failure modes that matter. Then send the nameplate drawing for review.
Frequently asked questions
Which lasts longer, an aluminum or stainless steel nameplate?
Neither has a universal service life. Stainless often offers more margin against impact and chloride exposure, while a qualified anodized or embedded-image aluminum construction can perform well in controlled conditions. Alloy, grade, finish, mark, mounting, cleaning, and exposure determine the finished result. Any life claim needs project evidence.
Is 304 or 316 stainless steel better for an industrial nameplate?
Type 316/316L is usually the better starting point when chloride exposure matters because molybdenum improves resistance to pitting and crevice corrosion. Type 304 can be appropriate in many mild indoor or atmospheric environments. Hot chloride deposits, persistent crevices, or marine splash can exceed 316L, so grade selection still needs environmental review.
How much heavier is stainless steel than an aluminum equipment label?
At identical area and thickness, the representative data in this guide make 304 about 2.89 times and 316 about 2.93 times as heavy as 3003-H14. Actual plates may use different thicknesses, holes, adhesives, or fasteners. Compare the released drawing, not density alone.
Can an anodized aluminum nameplate be used outdoors?
Yes, if the alloy, anodic specification, image, seal, cut edges, mounting, and actual outdoor exposure are qualified together. `Outdoor` does not describe chloride deposition, UV, humidity, cleaners, drainage, or temperature cycling. ISO 7599:2018 helps specify decorative and protective anodic coatings but does not supply a universal outdoor life.
Is stainless steel always the best choice at high temperature?
No. Stainless may provide more bare-substrate temperature margin, but a nameplate is a stack. Ink, etch fill, protective coating, adhesive, equipment paint, and differential expansion may set a lower limit. Verify the complete mounted construction over the OEM temperature profile rather than citing the metal's bulk capability.
Can a stainless steel nameplate be mounted on an aluminum enclosure?
Yes, but a wet, electrically conductive joint needs galvanic review. AMPP identifies dissimilar metals, electrical contact, and a corrosive electrolyte as the core conditions. Isolation layers, sealed holes, drainage, protected edges, and fastener selection should be evaluated on an installed specimen.
Do ASTM B117 salt-spray hours prove nameplate lifespan?
No. ASTM B117-26 says stand-alone salt-fog performance seldom correlates with natural exposure, and ISO 9227:2022 says salt-spray methods are not intended to predict long-term corrosion resistance. Use the test for a defined quality comparison with explicit failure criteria, not an hours-to-years conversion.
What should an OEM send before requesting metal nameplate samples?
Send the drawing, alloy or grade, thickness, finish, artwork, variable-data rules, mounting surface, fastener or adhesive details, temperature profile, contaminants, cleaners, UV and moisture exposure, abrasion risk, governing standards, and measurable acceptance criteria. A real installed substrate should accompany adhesive or galvanic testing.
Technical References
- Source: Aluminum Association. Accessed 2026.
- Source: ASTM B209/B209M. Accessed 2026.
- Source: ASTM A240/A240M. Accessed 2026.
- Source: Hulamin 3003 data sheet. Accessed 2026.
- Source: Outokumpu Core data sheet. Accessed 2026.
- Source: Outokumpu Supra data sheet. Accessed 2026.
- Source: European Aluminium design manual. Accessed 2026.
- Source: ISO 7599:2018. Accessed 2026.
- Source: MIL-PRF-8625. Accessed 2026.
- Source: Nickel Institute. Accessed 2026.
- Source: Outokumpu Supra data. Accessed 2026.
- Source: ASTM A967/A967M-25. Accessed 2026.
- Source: AMPP. Accessed 2026.
- Source: ASTM D4060-25. Accessed 2026.
- Source: ISO/IEC 29158:2025. Accessed 2026.
- Source: ASTM B117-26. Accessed 2026.
- Source: ISO 9227:2022. Accessed 2026.
