Graphic overlay display window design starts with the information that must remain visible in each power state. A clear zone preserves display output; a tinted zone filters color or reduces the unpowered contrast between the display and bezel; a dead-front zone conceals an icon or display until it is lit. OEM HMI teams should choose among these three constructions using the complete film, ink, adhesive, gap, display, ambient-light, and viewing-angle stack—not a bare-film transmission value. This guide defines that decision and the drawing and sample evidence needed to release it.
JASPER certifications: ISO 9001, ISO 13485, IATF 16949, and ISO 14001.
The optical area is only one region of a custom graphic overlay, but it often sets the part's tightest cosmetic and registration requirements. This guide was prepared for JASPER's website. JASPER is listed as one manufacturing option; the material examples come from public supplier data, not from a claimed JASPER production stack. The discussion is for component selection and procurement preparation. It does not certify a finished HMI, medical device, vehicle control, or machine.
1. Why a Display-Window Decision Fails in Production
A display-window decision fails when a visual adjective is expected to control an optical system. “Clear,” “smoke gray,” “matte,” and “dead-front” describe intent, but they do not set transmission, haze, spectral color, gloss, aperture position, or the two powered states. Each missing variable moves downstream until the first assembled sample exposes it. The first article pays the bill.
| Ambiguous input | Failure chain | What the reviewer sees | Evidence that closes the gap |
|---|---|---|---|
Clear window only |
Surface texture and haze remain open | Digits are bright but edges look soft; reflected lamps obscure the image | Total luminous transmittance and haze on the proposed stack under ASTM D1003, plus a powered sample |
50% smoke without a measurement basis |
Film color, ink deposit, and display spectrum interact | White shifts color; one channel loses more output than another | Spectral transmittance, agreed colorimetry, and the actual display behind the printed coupon |
Dead-front black only |
Off-state concealment and on-state readability are not separately controlled | The icon ghosts when off, disappears when on, or changes off axis | Lit and unlit acceptance at stated ambient light, luminance, and viewing angles |
| One rectangle for the “window” | Active area, clear aperture, printed bezel, cut edge, and adhesive edge share no datum chain | Clipping, light leakage, exposed display frame, or adhesive in view | Separate CAD layers, common datums, and a worst-case tolerance stack |
Scratch resistant only |
Test method and damage endpoint remain open | Cleaning or abrasion raises haze even though a pencil test passed | A named hardness screen and an abrasion/cleaning test with optical endpoints |
| Unspecified display gap | Reflection, dust space, film deflection, and service access are decided during assembly | Double reflections, particles, contact marks, or an unreworkable display | An explicit air gap, perimeter bond, OCA, or LOCA architecture |
A display window is a transparent or controlled-transmission region in the overlay. It is not necessarily a physical hole. A clear aperture is the region through which the required image must be visible. A printed bezel is the opaque border that hides inactive display structure and tolerance. An adhesive keep-out is the area from which the selected bonding system is intentionally excluded. Treating those four geometries as one outline is the root of many avoidable revisions.
Bare display-module data do not close the system boundary. IEC 61747-30-1, for example, covers transmissive LCD-module measurements and excludes combinations with a touch panel or front-light unit because the added stack changes the measurement. A graphic overlay, tint, air gap, and cover adhesive must therefore be checked as an assembly when they sit in the viewing path.
The practical aim is not the highest value on one data sheet. It is a controlled optical zone whose powered and unpowered appearance remains acceptable across the released viewing envelope, assembly variation, cleaning exposure, and service plan.
2. How to Specify Graphic Overlay Display Window Design
A buildable specification controls ten linked decisions: display baseline, optical state, film properties, transmitted color, surface durability, print mask, aperture geometry, adhesive layout, display gap, and environmental/service conditions. The sequence matters. Selecting “anti-glare PET” before defining the content and viewing envelope solves a material question before the optical question exists.
2.1 Freeze the display and viewing envelope first
Record the display manufacturer and exact module revision; overall, active, and recommended viewing areas; polarizer orientation; luminance and color states; viewing cone; and the housing datum scheme. Add the normal and worst intended viewing angles, ambient-light range, glove or touch contact, and whether the display must be replaceable. The active area is not automatically the overlay aperture.
Good signal: The RFQ includes a controlled display drawing, 3D stack, viewing directions, lighting states, and common datums.
Red flag: A screenshot and diagonal display size are the only optical inputs.
2.2 Select clear, anti-glare, tinted, dead-front, or a separate lens
| Optical zone | Use it when | Control explicitly | It is not the best choice when |
|---|---|---|---|
| Clear gloss | Fine text, color fidelity, or maximum image sharpness dominates | Full-stack transmission, haze, gloss, reflections, scratch/cleaning exposure | Specular reflections in the actual environment make the display unreadable |
| Clear anti-glare | Broad reflections must be diffused and some image softening is acceptable | Haze, gloss, pixel sparkle, viewing distance, character size | A high-resolution image, camera, or very small symbol cannot tolerate scatter |
| Tinted | The unpowered display must blend with the bezel, or a spectral filter improves indicator discrimination | Spectral transmittance, luminous transmittance, color coordinates, ink deposit, display luminance | Available display output cannot absorb the light loss or color shift |
| Dead-front | Information should disappear when unpowered and appear only on command | Off-state concealment, on-state luminance/color/uniformity, ambient light, view angle, light leakage | A warning or status must remain visible after power loss |
| Separate rigid lens or open cutout | Impact, span stiffness, replaceability, optics, or sealing cannot be met by thin overlay film | Lens material/coating, retention, gasket/bond, step height, contamination path | Thin construction and a continuous cleanable face are higher priorities |

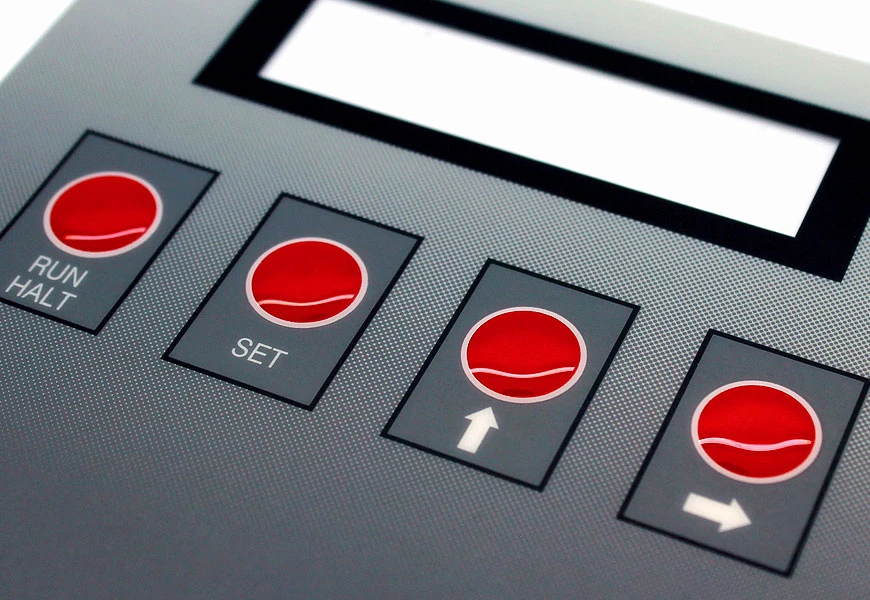

A clear window graphic overlay is therefore not an automatic default. It is one state in a decision table, and a single panel may combine clear, tinted, and dead-front regions.
2.3 Specify transmission, haze, and gloss as separate properties
ASTM D1003 separates total luminous transmittance from wide-angle scatter. ASTM D2457 treats specular gloss as a separate property. One gloss number cannot describe every aspect of appearance. A film can pass a high fraction of total light and still blur the image through haze. The properties are not interchangeable.
| Named supplier film | Construction represented | Published optical data | Evidence boundary |
|---|---|---|---|
| Tekra Marnot XL Clear Polyester | 7 mil clear hard-coated PET | 91% transmission; <1.5% haze; supplier TM 10.76 | Typical bare-film data, not the printed assembly |
| Tekra Marnot AG Polyester | 7 mil anti-glare hard-coated PET | 91% transmission; 8% haze; supplier TM 10.76 | Anti-glare can change scatter without lowering the listed total transmission |
| MacDermid Alpha Autoflex EB | Gloss and anti-glare hard-coated PET | 91% ±2% transmission; <2% haze gloss; about 9.8%–10.8% haze for named anti-glare gauges | Typical ASTM D1003 values for this product family |
| Covestro Makrofol SR906 1-1 | Clear PC with an acrylic functional layer | ≥89% transmission; ≤0.5% haze under ASTM D1003 | Named PC grade only; no printed-stack guarantee |
For a clear-gloss window, set the initial sample target at total luminous transmittance of at least 90% and haze no higher than 1.5% under the agreed ASTM D1003 specimen and measurement setup. Treat those values as the first optical screen for the named construction; the installed display stack still controls acceptance.
2.4 Control a tinted display window by measurement, not a color name
A transmitted tint is the product of spectrum and deposit, not merely a Pantone reference. Nazdar's NSC transparent-window ink data says mesh, ink deposit, viscosity, additives, press settings, and cure affect color density and appearance. For a measured transmittance fraction T, NIST defines optical density as OD = -log10(T); OD must still be tied to wavelength or a stated photometric method. CIE 015:2018 supplies the framework for observers, illuminants, tristimulus values, and color differences. A color name cannot do that.
A Covestro Makrofol LM296 grade with 50% ±3% published transmission is a useful supplier example, not a recommended universal tint.
Good signal: Spectral or luminous transmission, color coordinates, illuminant/observer, backing, display state, and tolerance are agreed on a physical standard.
Red flag: The requirement is only “smoke,” “neutral gray,” or a screen-rendered color.
2.5 Separate scratch screening from optical wear
Pencil hardness and abrasion answer different questions. ASTM D3363 is a rapid coating-hardness screen whose result can vary with pencil batch and laboratory. ASTM D1044 can evaluate abrasion damage to transparent plastic through change in haze when wheel, load, cycles, conditioning, and measurement are fixed. Neither predicts service life by itself.
Good signal: The acceptance plan names the contact—finger, glove, stylus, wipe, abrasive dust, or cleaner—and measures the failure that matters after exposure.
Red flag: A pencil grade is presented as proof that the window will stay readable for a stated number of years.
2.6 Treat the printed bezel and light-control layers as optical parts
The bezel must hide inactive display structure, registration drift, and the permitted adhesive edge without clipping the viewing envelope. A tinted or dead front overlay window also needs controlled ink deposit and a compatible opaque surround. Nazdar describes 34PB24 Deadfront Black as opaque from the front and transmissive under rear illumination, but publishes no universal on/off threshold. Proell's February 2026 preliminary sheet documents NORIPHAN HTR N 093/800 as a screen-printed diffusion lacquer for spreading point-source LED light; the same sheet labels it a test product and requires part-specific testing.
JASPER's graphic overlay printing controls provide a relevant manufacturing discussion, and its backlit panel and LED indicator case study shows why lit and unlit review are separate.
Good signal: Bezel, opaque mask, tint/dead-front deposit, diffuser, and light-leakage zones have separate artwork layers and approval states.
Red flag: A single black swatch is expected to control both reflective appearance and transmitted light.
2.7 Build the aperture from view angle and tolerance, not habit
For an air gap g and a viewing angle θ measured from the surface normal, the line of sight shifts laterally by g × tan(θ). Along one axis, a conservative design start is:
minimum clear opening = active dimension + 2 × [g × tan(θ) + worst-case relative XY offset]
The relative offset must include the applicable print, die-cut, overlay-placement, housing, and display-placement terms under the project's chosen worst-case or statistical tolerance method. CAD must also check the display's own viewing cone, housing walls, polarizer, border radius, and oblique viewing direction.
Good signal: Every outline has a datum, dimension, tolerance, and owning process.
Red flag: A generic bezel allowance is copied from another display size.
2.8 Keep ordinary PSA out of the optical path unless it is qualified there
3M documents 200MP transfer tapes for subsurface-printed and backlit overlays, with named families at typical 0.06 mm and 0.13 mm thicknesses. That does not make them optical bonding films. More sharply, Nazdar says its NSC transparent-window inks are not recommended with laminating adhesives. That restriction is product-specific, but it proves that ink and adhesive cannot be selected independently.
Set nominal adhesive setback from the visible aperture by adding adhesive-to-film registration error, relevant print/die error, squeeze or flow allowance, and a deliberate safety margin. No primary source supports one universal setback.
Good signal: The adhesive CAD layer, material code, surface preparation, edge support, and ink-compatibility evidence are released together.
Red flag: “Clear adhesive” is allowed over a window without haze, distortion, bubble, yellowing, or compatibility data.
2.9 Choose the display gap architecture deliberately
An air gap simplifies display replacement and can tolerate assembly variation, but it adds refractive interfaces and a space where particles or film deflection can matter. A acrylate OCA commonly has refractive index 1.47–1.48 and that replacing air with OCA reduces interface reflection. As a product-specific benchmark, >99% transmission and <0.5% haze for a 250 µm layer on LCD glass; those values are not an overlay specification.
Full optical bonding is not the best choice when rework, ink compatibility, particle control, lamination equipment, display stress, or service replacement is unresolved. This choice belongs in architecture. A display-integrated HMI assembly also has a different supply boundary from a loose overlay placed above a customer-installed display.
Good signal: The BOM and section drawing say air gap, perimeter bond, OCA, or LOCA and identify who validates the assembled display.
Red flag: “No gap” appears on the drawing without a named bond material or lamination process.
2.10 Define environment, cleaning, cleanliness, and service as conditions
ASTM D543 ties chemical-resistance exposure to reagent, concentration, time, temperature, stress, and end use. IEC 60068-2-14:2023 and IEC 60068-2-78:2025 provide temperature-change and steady damp-heat methods, but they do not supply one universal overlay severity. After conditioning, inspect the powered and unpowered stack for haze, color shift, bubbles, edge lift, delamination, light leakage, and registration change.
Good signal: The requirement names the real cleaner, wipe material, dwell, temperature/humidity profile, inspection lighting, display state, and service-access plan.
Red flag: “Chemical resistant,” “outdoor,” or “cleanroom quality” appears without exposure or acceptance conditions.

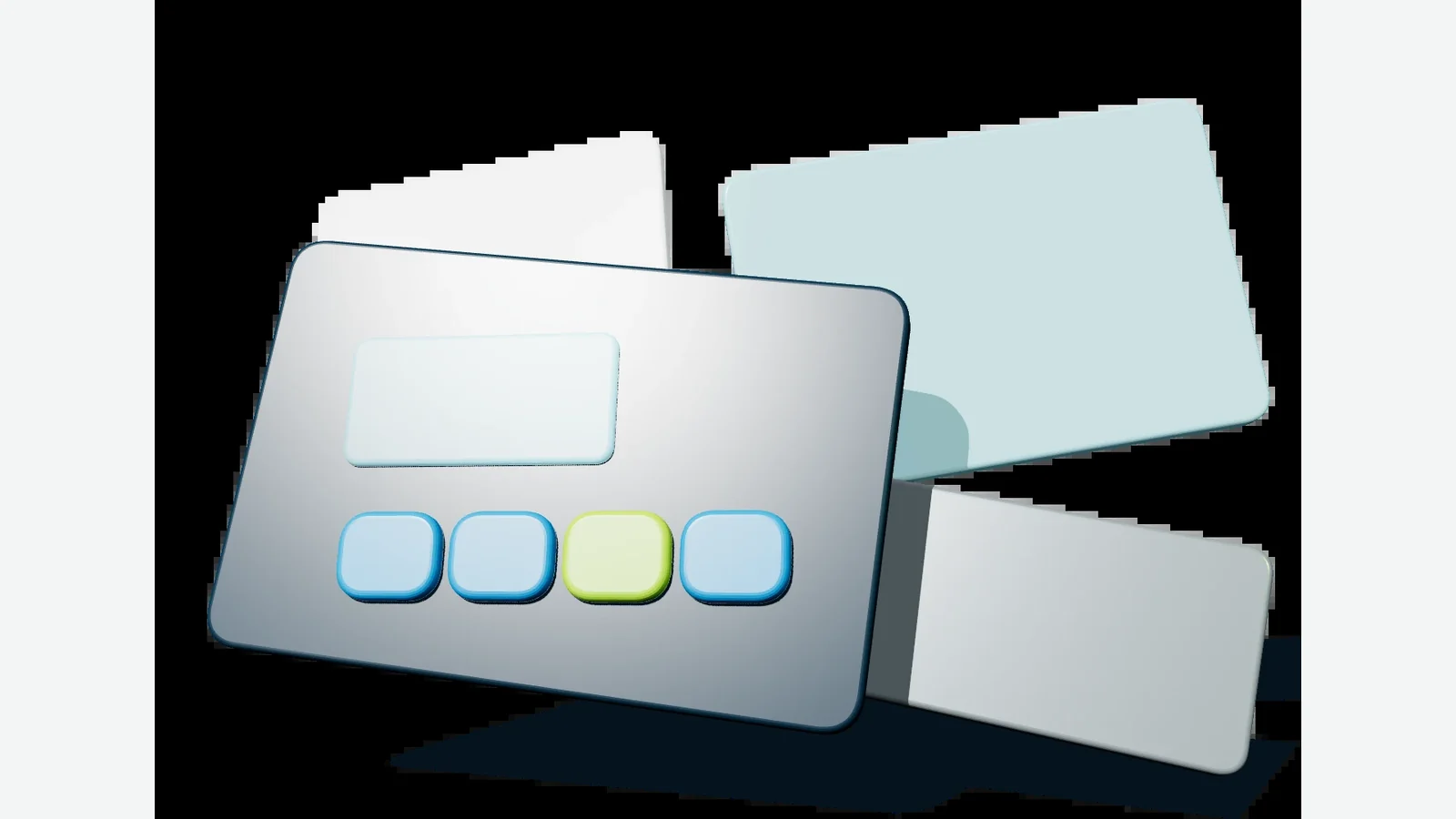

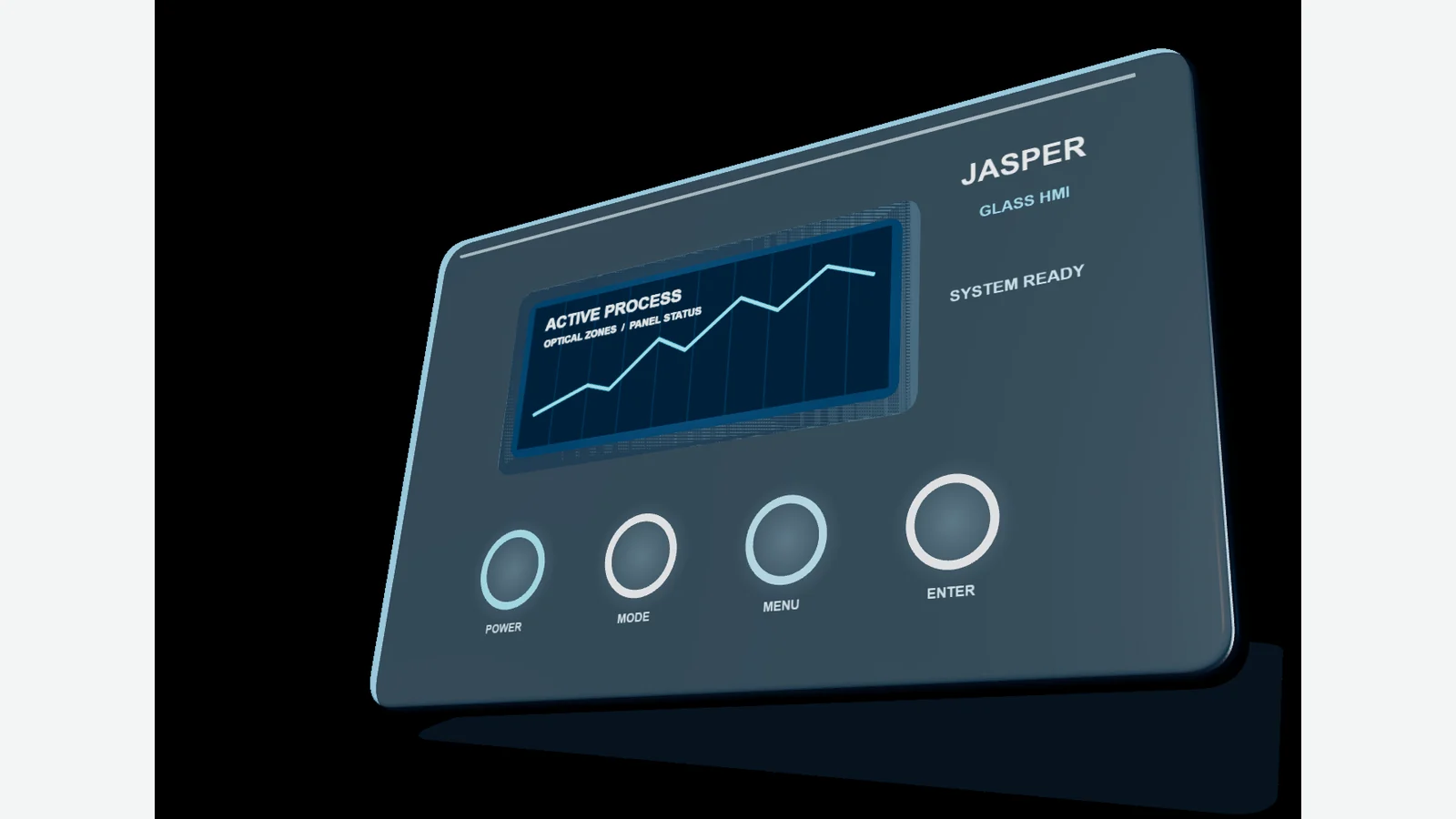

3. Convert the Optical Requirement into a Buildable Stack
A buildable stack assigns every optical, printed, adhesive, and mechanical function to a layer. Keep the layers separate. The following constructions are source-bounded starting points assembled from documented component uses. They are not released JASPER standards and do not predict an integrated result.
Operator / ambient light
↓
Hardcoat or specified first-surface texture
Clear PET or PC carrier film
Reverse print: bezel + optional tint/dead-front ink + optional diffuser
Perimeter PSA outside aperture — OR — qualified OCA/LOCA in the optical path
Defined air gap or optical bond
Display cover / polarizer / active image
| Reference construction | Layer choices supported by public data | Must be proven on the project |
|---|---|---|
| Clear reading window | Low-haze hard-coated PET or PC; reverse-printed bezel; converted overlay PSA outside the aperture; defined air gap | Reflections, haze after printing, aperture/viewing envelope, particle limit, deflection and cleaning |
| Printed tinted window | Low-haze clear film; Nazdar NSC or another qualified transparent ink; opaque bezel; adhesive kept away unless the exact combination is approved | Spectral transmission, color, density uniformity, display output, ink/adhesive compatibility and cure |
| Dead-front indicator | Clear film; Nazdar 34PB24 or another qualified dead-front system; matching opaque surround; optional Proell diffuser; LED/display behind | Off-state match, on-state luminance and color, hot spots, light leakage, view angle and ambient-light limit |
| Fully bonded display | Low-haze film or rigid lens; printed border whose step suits the adhesive; qualified OCA/LOCA; controlled lamination to display | Bubbles, mura/stress, ink-step coverage, optical distortion, aging, repair route and full assembly ownership |
Run a six-step specification and approval process
- Freeze the display package. Release the module revision, active/viewing areas, polarizer and viewing data, connector keep-outs, display position, enclosure section, and common datums.
- Define the optical use case. State the information visible when powered and unpowered, normal and extreme view angles, ambient light, viewing distance, character size, display luminance, and color states.
- Choose a reference stack. Name the film grade and gauge, surface code, ink family and viewing side, bezel/diffuser layers, adhesive code, gap architecture, and replaceability requirement.
- Release separable artwork and CAD. Keep the active area, clear opening, printed bezel, tint/dead-front, diffuser, adhesive, cut edge, display outline, and housing datums on distinct controlled layers.
- Approve coupons and assembled samples. A tint drawdown proves little without the selected film and display. Review at least one assembled sample powered and unpowered, at the released angles and lighting conditions.
- Lock revision and acceptance evidence. Record the approved material lots or references, print sequence, physical color/optical standard, inspection setup, dimensional report, test results, protective liners, and change-notification rule.
Use a full-stack validation matrix
| Risk | Specimen and condition | Measurement / record | Release question |
|---|---|---|---|
| Image blur or loss | Complete film/ink stack over display | ASTM D1003 transmission and haze; powered visual check | Are fine features readable at every released angle? |
| Tint or dead-front mismatch | Powered and unpowered assembly under stated ambient light | Spectral transmittance or agreed CIE coordinates; luminance/color images | Does the zone hide and reveal the intended information? |
| Reflection and surface appearance | Finished first surface, clean and after handling | ASTM D2457 gloss plus defined visual geometry | Is glare controlled without unacceptable scatter or sparkle? |
| Scratch/cleaning damage | Finished stack after named abrasion or cleaner cycle | ASTM D1044 change in haze or agreed optical endpoint; surface images | Does exposure impair readability or appearance? |
| Print adhesion | Actual film, pretreatment, ink, cure, and conditioning | Agreed adhesion method; if ASTM D3359 is used on plastic, record its limitation | Does any layer lift, crack, or transfer? |
| Window alignment | Converted overlay on production-representative housing/display | Datum-based dimensional report and view-envelope gauge | Can worst-case variation clip the image or expose the bezel? |
| Environment and bond | Assembled stack after project temperature/humidity/chemical exposure | Optical, dimensional, bubble, edge-lift, delamination and leakage inspection | Does the same sample still meet its pre-test acceptance? |
JASPER's drawing-controlled testing and validation planning is a relevant internal reference, but component evidence must not be relabeled as finished-equipment certification.
Put these inputs in the drawing and sample record
- Display manufacturer, exact model/revision, outline, active area, viewing area, viewing direction, polarizer, and luminance/color states.
- Section view with film gauge, print side, surface finish, air gap or bond layer, display cover, and enclosure support.
- Separate dimensions and tolerances for clear aperture, printed bezel, ink zones, adhesive edge, cut edge, display, and housing datums.
- Optical acceptance: specimen stack, transmission/haze or spectral/color values, illuminant, observer, geometry, viewing angle, ambient light, and powered state.
- Surface and environmental acceptance: cleaner, wipe, abrasion/contact, temperature/humidity, inspection lighting, defects, and post-test endpoints.
- Sample controls: physical master, instrument data, lit/unlit images, lot/revision, protective liner, packaging, and approvers.
A representative graphic-overlay display-window case study shows the same useful separation of active area, clear opening, printed bezel, and adhesive keep-out without claiming a universal construction.
Know when a thin overlay window is not the best construction
Use a separate rigid lens when impact, large unsupported span, optical coating, surface flatness, or replaceable scratch protection exceeds what thin film can provide. Use a complete membrane-switch construction when the front panel must also supply sealed key actuation, circuitry, a tail, and a connector; the distinction is explained in graphic overlay vs membrane switch. Use a display-integrated assembly when one supplier must own display retention, bonding, brackets, cable handoff, optical cleanliness, and powered inspection. These are architecture boundaries, not upgrades that belong in a late artwork revision.
4. Red Flags That Disqualify a Supplier
These red flags expose an uncontrolled optical stack. A supplier may still be able to print and cut the part, but the evidence is too weak to release a display window without another technical review.
- “Clear,” “smoked,” or “dead-front” is treated as a complete specification. No measurable powered and unpowered acceptance exists.
- Bare-film data are presented as finished-window data. Ink, surface lacquer, adhesive, air gaps, display cover, and assembly variation are absent.
- A transmitted tint is controlled only by Pantone or a monitor image. Neither defines spectral transmission through the selected film and ink deposit.
- One tolerance is quoted without datums or a stack-up. Print, die cut, adhesive conversion, housing placement, and display placement cannot be separated.
- Ordinary PSA enters the visible aperture without optical and compatibility evidence. Transparency alone does not control haze, bubbles, distortion, or yellowing.
- Pencil hardness is sold as field-life proof. The claim confuses a coating screen with abrasion, cleaning, and environmental exposure.
- Dead-front approval covers only one power state. Concealment can pass while illumination fails, or the reverse.
- A component test is called a product certification. Overlay results do not certify the display module, HMI, vehicle control, medical device, or finished machine.
5. Frequently Asked Questions
What is graphic overlay display window design?
Graphic overlay display window design defines the film, surface, printed light-control layers, aperture, bezel, adhesive layout, display gap, and acceptance conditions above a display or indicator. It converts “clear,” “tinted,” or “dead-front” intent into a controlled component drawing and assembled-sample test.
Should a display window be clear or tinted?
Use clear when image sharpness, brightness, and color fidelity dominate. Use a tinted display window when off-state blending or spectral filtering justifies reduced display output. The choice must be checked with the actual display, ambient light, and viewing angles; a bare-film percentage cannot decide it.
What transmission and haze should a clear window graphic overlay have?
There is no universal pair of limits. Set transmission and haze from the display luminance, character size, viewing distance, ambient reflections, and full stack. ASTM D1003 provides a measurement method; named clear films in this guide show supplier examples, not default acceptance values.
How should a tinted display window be specified?
Specify the film and gauge, ink system and print side, luminous or spectral transmittance, color coordinates, illuminant and observer, specimen backing, tolerance, display state, ambient light, and viewing geometry. Approve a physical printed standard and an assembled powered sample; do not rely on a Pantone chip alone.
What is a dead front overlay window?
A dead front overlay window conceals an icon or display region when unlit and transmits the intended image when illuminated from behind. Approve off-state concealment and on-state luminance, color, uniformity, leakage, and viewing angle separately under stated ambient light. No single transmission percentage works for every display.
How much adhesive clearance does a display window need?
No evidence supports one universal clearance. Calculate the setback from adhesive-to-film registration, relevant print and die-cut error, assembly variation, adhesive flow or squeeze allowance, and a safety margin. Keep ordinary PSA out of the visible aperture unless that exact adhesive, ink, and optical stack has been qualified.
Is an air gap or optical bonding better above a display?
Neither is always better. An air gap supports rework and tolerance accommodation but adds optical interfaces and a contamination space. OCA or LOCA can reduce interface reflection, yet demands compatible inks, clean controlled lamination, stress and bubble management, and a repair strategy. Choose at assembly architecture level.
Does an anti-glare surface always improve display readability?
No. Anti-glare texture can diffuse broad reflections, but added haze may soften fine characters or create sparkle over a pixelated display. Approve the selected surface with the real content, viewing distance, ambient source positions, and powered display instead of selecting “matte” from a finish swatch.
What should an OEM send for a display-window review?
Send the display outline and revision, active and viewing areas, view cone and polarizer data, housing CAD and datums, gap architecture, artwork layers, optical states, luminance/color requirements, ambient-light and viewing conditions, cleaning/environmental exposure, adhesive surface, service requirement, and sample acceptance criteria.
6. What to Do Next
Share the display outline and viewing requirements before asking a converter to choose the film or ink. The useful package contains the exact display revision, active and viewing areas, housing datums, view angles, ambient light, powered states, desired clear/tinted/dead-front behavior, gap architecture, adhesive surface, cleaning exposure, and sample acceptance plan. Ask the proposed manufacturer to return a marked-up stack, tolerance chain, material and ink references, and a lit/unlit validation matrix—not only a price against the artwork.
