Graphic Overlay Failure Analysis: Lifted Edges, Faded Legends, Cracks, and Window Haze

JASPER certifications: ISO 9001, ISO 13485, IATF 16949, and ISO 14001.

An overlay can fail at more than one layer, and the visible damage may be downstream of the initiating event. A lifted corner might follow poor wet-out, but it might also reflect enclosure curvature, coating contamination, a mismatched adhesive, or repeated edge loading. Cloudiness may be residue on the outer surface, abrasion in a clear window, or a change inside the film. This guide shows how to decide what the evidence supports, what remains only a hypothesis, and which correction deserves a production-intent test.

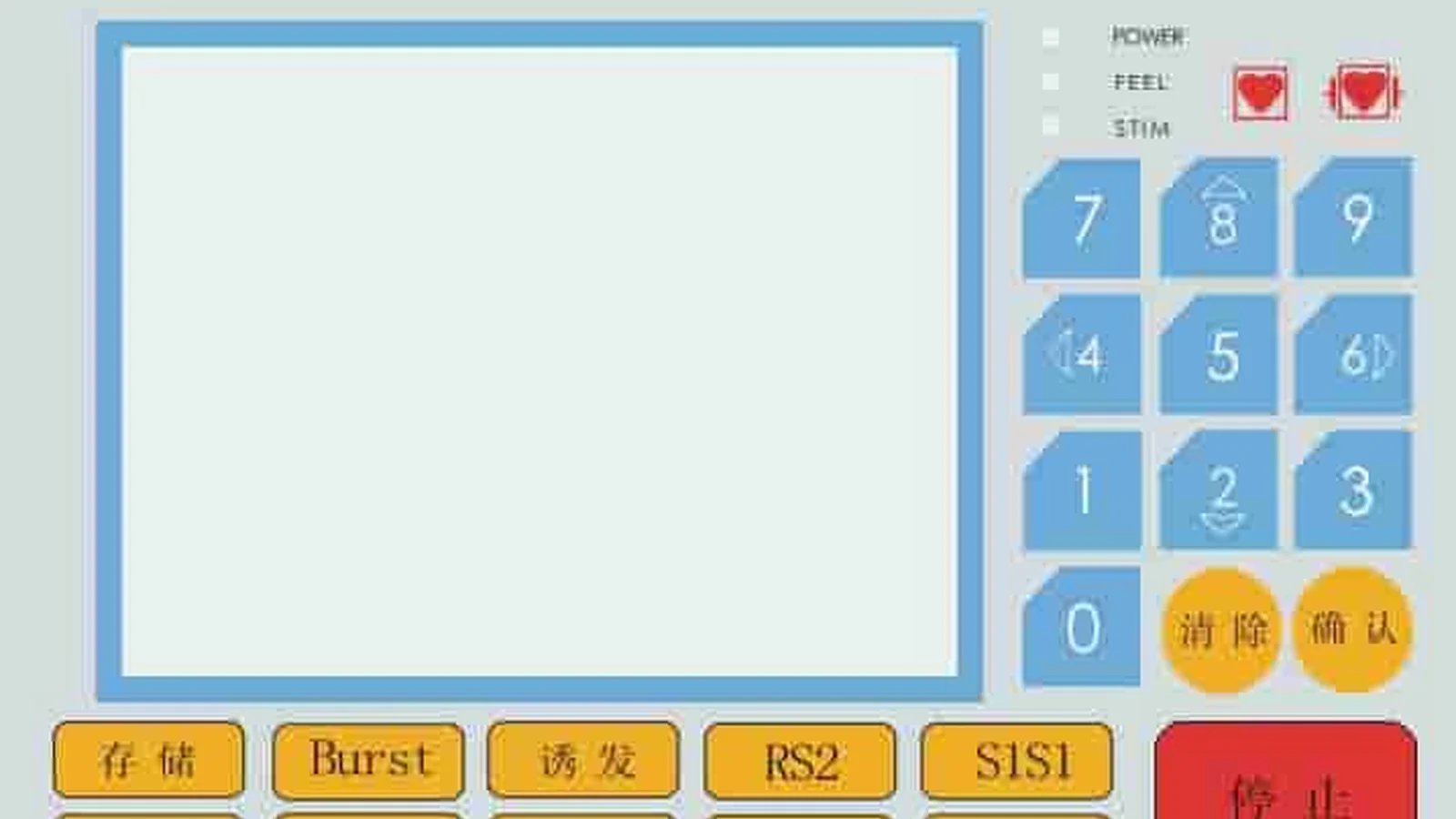

The method applies to standalone custom graphic overlays and to overlays integrated into membrane switches or HMI assemblies. It does not assign cause without samples. It also does not treat a component test as finished-equipment validation.

---

1. What a Graphic Overlay Failure Analysis Must Prove

A useful investigation connects the observed damage to a physical or chemical mechanism, then connects that mechanism to an actionable condition. The ASM Handbook, Volume 11 frames failure analysis across design, material, manufacturing, assembly, use, and service environment. That scope matters here: replacing the film will not correct a contaminated powder coat, and changing the adhesive will not remove a sharp enclosure edge that keeps loading the bond line.

Four terms keep the report honest:

The distinction is not paperwork. It prevents a team from calling graphic overlay peeling the cause of graphic overlay peeling.

The construction sets the possible failure interfaces

A common second-surface-printed overlay can be represented from the user side down:

Operator / cleaner / sunlight
          ↓
Optional first-surface hardcoat or selective texture
PET or PC face film, including any clear display window
Second-surface ink layers and primer-treated print surface
Pressure-sensitive mounting adhesive and release-liner history
Paint, powder coat, metal, glass, or molded-plastic enclosure
          ↓
Housing geometry, assembly pressure, fasteners, bezel, display, and seals

This is a diagnostic map, not a universal bill of materials. Nazdar's current 3400 UV Screen Ink technical data is one primary example of an ink designed for second-surface PC and some top-coated PET overlays. The 3M 467MP technical data sheet is one PSA example intended for subsurface-printed overlays on metal and high-surface-energy plastics. Neither document describes every possible construction.

The evidence chain

Service condition
  → local chemical, UV, thermal, mechanical, or moisture exposure
    → response at a layer or interface
      → visible symptom
        → measured property change and failure-interface evidence
          → supported mechanism
            → root cause only after credible alternatives are contradicted

NASA GSFC's Basics of Failure Analysis puts preservation and external, nondestructive examination ahead of destructive work. For an overlay, that means no cleaning, peeling, solvent wiping, sectioning, or aggressive tape testing until the received condition has been photographed and the examination plan is written.

---

2. Symptoms Route the Investigation; They Do Not Close It

The fastest safe triage uses the symptom to choose discriminating evidence. Keep the alternatives open. Retain at least two plausible mechanisms until inspection or testing separates them.

ASTM D3330/D3330M-04(2025) defines peel methods that assess a given pressure-sensitive tape but cannot pinpoint the cause of nonuniformity and may not provide design information. The method is valuable precisely because its boundary is clear. See the ASTM D3330/D3330M scope and significance.

---

3. Graphic Overlay Failure Analysis: The Eight-Point Diagnostic Framework

The eight checks below are ordered from evidence preservation to property measurement. A credible report records what was observed, what was measured, which explanations were tested, and which explanations remain unresolved.

3.1 Preserve the received condition

Start with a quarantine record. Do not peel it. Keep it flat. Assign a sample ID; photograph the front, back, edges, liner if available, enclosure, damage overview, and close-up scale; mark installation orientation and the direction of any liquid flow or wiping. Retain packaging, loose fragments, and residue. Record who removed the part and how.

Send at least one failed assembly, one unused part from the same lot when available, and a nominal field assembly or retained approval sample. The comparison is stronger when material and process records can connect each sample to film, ink, hardcoat, adhesive, die-cut, and assembly lots.

Good signal: The part arrives uncleaned, supported flat, individually bagged, uniquely identified, and accompanied by unedited original-resolution images and a timeline.

Red flag: The only evidence is a compressed phone image after the overlay was peeled, wiped with solvent, folded for shipping, or separated from its enclosure.

3.2 Map the pattern, direction, location, and population

Location converts a generic symptom into a testable clue. Edge lift confined to the bottom of vertically mounted units may align with pooled cleaner, but that is still a hypothesis. Lift that follows a tight enclosure curve points toward sustained peel stress. Cracks radiating from a die-cut corner call for examination of the cut edge and local strain. Random haze across both overlay and adjacent display glass raises a different question than haze confined to the film window.

Build a map by unit, lot, installation date, site, orientation, location on the part, time to detection, and damage size. Keep not inspected separate from no damage. The NIST/SEMATECH reliability handbook recommends root-cause analysis at the individual failure-incident and failure-mode level before reliability models are applied; mixed modes should not be collapsed into one rate.

Good signal: Each return has a mode code, annotated location, lot, exposure history, and a denominator of inspected units.

Red flag: Returns from different lots, sites, symptoms, and service ages are grouped because they all involve an overlay.

3.3 Identify the actual failure interface

For a lifted part, inspect both sides before testing. Adhesive left mainly on the enclosure suggests separation nearer the overlay/adhesive side; adhesive left mainly on the overlay suggests separation nearer the enclosure; adhesive split across both sides suggests cohesive failure or mixed transfer. Ink or primer transferred with the adhesive creates another interface. Dirt on the exposed bond line may be a consequence of the opening, not the initiating cause.

Use low-angle light and low-magnification microscopy to document transfer, streaks, voids, cut-edge damage, and local contamination. More than one interface can fail along the same edge. Fujifilm's hosted Techmark MTS technical sheet illustrates the underlying principle: distinguish ink-to-film separation from separation at another printed-stack interface. Its detailed troubleshooting concerns an older in-mold process, so it is an interface example, not a universal flat-overlay rule.

Good signal: The report includes paired images of both fracture surfaces and labels each observed layer or residue.

Red flag: Adhesive failure is recorded without saying which interface released or where the adhesive remained.

3.4 Reconstruct the exposure instead of naming a harsh environment

Terms such as outdoor, medical cleaning, and factory use are too broad for a test plan. Record the cleaner or chemical product, formulation or SDS revision when available, concentration, dilution water, wipe material, applied amount, contact time, wiping force or cycles, rinse, drying, frequency, and temperature. UV work needs location, orientation, shading, glazing, operating temperature, moisture cycle, and time. Mechanical history needs actuation, tool contact, gloves, scraping, impact, flexing, and installation or service removal.

ASTM D543-21 requires chemical identity and concentration, contact route, duration, temperature, stress, controls, and the property being evaluated to resemble use. It provides immersion and wet-patch/wipe routes, including chemical exposure under applied strain. The short tests correlate with service only when the conditions are similar. The planned graphic overlay chemical resistance guide carries this exposure definition into a cleaner-specific test matrix.

UV exposure has the same discipline. ASTM G154-23 controls fluorescent UV and moisture apparatus, but it does not set a product requirement or simulate pollution, biological attack, or saltwater. ASTM G151-26 rejects generic conversions from chamber hours to outdoor years without material-specific correlation. See ASTM G154 and ASTM G151. Panels used in marine and outdoor equipment still need a project-specific exposure and acceptance plan.

Good signal: The exposure record is detailed enough to reproduce on a production-intent coupon or assembly with a control.

Red flag: A chamber cycle is selected because it is familiar, not because it represents the returned part's conditions.

3.5 Diagnose graphic overlay peeling as a bond-system problem

The enclosure's finished surface is the substrate. Aluminum, for example, is incomplete if the adhesive actually contacts powder coat, paint, conversion coating, oil, or a textured finish. 3M's surface-science guidance identifies surface energy, cleanliness, and roughness as separate controls on adhesive contact. Leading-edge peel or cleavage can then concentrate load at an already weak boundary; see 3M's adhesive-joint stress guide.

Use named PSAs as screening examples, not prescriptions. 3M 467MP targets metal and HSE plastics, while 3M 9472LE uses 300LSE chemistry for surfaces including polypropylene and powder coatings. Compare actual-finish coupons after controlled cleaning, application pressure, dwell, and relevant conditioning; record the fracture interface with the ASTM D3330 result. The planned graphic overlay adhesive selection guide maps the same inputs to initial material screening.

Good signal: The report names the finish, texture, PSA, caliper, application method, dwell, conditioning, peel method, and transfer pattern.
Red flag: A stronger adhesive is selected from a steel-panel data sheet without testing the production finish or edge geometry.

3.6 Separate faded overlay legends from surface appearance changes

Faded overlay legends may reflect ink or pigment change, yet a pale-looking mark can also come from abrasion, gloss loss, residue, hardcoat damage, or reduced print density. First establish whether graphics are first- or second-surface printed and whether an unexposed reference area exists. Nazdar's 3400 overlay ink data ties performance to substrate, deposit, cure, and exposure, and tells users to validate outdoor use against the end-use specification.

Measure opaque colors with the same geometry and agreed calculation under ASTM D2244-25; pair color with gloss or microscopy when surface change is plausible. For light exposure, ASTM D3424-25 requires a representative print/control because ink, substrate, film thickness, and printed area affect relative lightfastness.

Good signal: Before/after color coordinates, gloss, protected controls, print orientation, and the complete exposure cycle are recorded.
Red flag: A visual comparison under uncontrolled room lighting is reported as proof of UV fade.

3.7 Trace control panel overlay cracking to geometry, strain, and exposure

Control panel overlay cracking often starts where strain concentrates: an emboss radius, cutout corner, die nick, unsupported key, enclosure bend, fastener, or bezel edge. Record the origin before opening the crack. Request the exact film grade, gauge, treated side, hardcoat, ink stack, cut direction, emboss tool, and forming history; Covestro's film selector shows why PC alone is not a complete material specification. The planned polyester vs polycarbonate graphic overlays guide provides the related grade-selection framework.

Chemistry and tensile strain can interact. Covestro's stress cracking as dependent on medium, temperature, duration, and inherent or applied stress. ISO 22088-3 can rank thermoplastic specimens under fixed strain and chemical exposure; IEC 60068-2-14 addresses temperature change. ASTM F1578 applies when an actuated membrane-switch assembly must be cycled and inspected.

Good signal: Crack origin, geometry, strain state, chemical path, temperature history, and comparison specimens point to the same mechanism.
Red flag: Every crack in a PC or PET part is labeled material defect without examining the edge or assembly.

3.8 Quantify window haze, then locate the scattering layer

ASTM D1003-21 measures haze and luminous transmittance in planar, essentially transparent plastic. It quantifies the optical change; it does not say whether scattering comes from removable residue, scratches, hardcoat, bulk film, a printed clear/tint, PSA, condensation, or the display side. When wiping abrasion is plausible, ASTM D1044-24 measures change in haze after a specified Taber abrasion setup.

Use staged comparison: image the received window, measure it, apply an agreed non-damaging cleaning procedure to a defined area, remeasure, then inspect layers or witness coupons before destructive separation. A printed clear must stay in the map. Nazdar's NSC transparent-ink data links appearance to deposit, bubbles, cure, additives, and compatibility. The planned graphic overlay display window design guide covers aperture, print border, texture, and adhesive keep-out inputs.

Good signal: Haze, transmittance, cleaning condition, measurement procedure, surface images, and layer-by-layer controls isolate the change.
Red flag: The team orders a new face film because the assembled window looks cloudy.

---

4. A Six-Step Investigation Process

Run the process in evidence order, not organizational order. The fastest department should not make the first irreversible change.

Step 1 — Quarantine and document

Stop cleaning, peeling, trimming, or powering if those actions could alter evidence. Assign sample IDs; photograph orientation, scale, edges, both surfaces, packaging, and the surrounding assembly. Preserve failed, same-lot unused, and approved-control parts separately.

Step 2 — Reconstruct the record

Collect the released drawing, artwork revision, BOM, supplier and lot records, film/ink/hardcoat/PSA data, die-cut and cure records, enclosure finish, assembly instructions, installation date, field location, cleaning procedure, and detection timeline. Mark missing facts as unknown.

Step 3 — Classify the mode and interface

Map each return by symptom and location. Use nondestructive visual and low-magnification examination first. Separate adhesive-to-film, adhesive-to-enclosure, cohesive adhesive, ink-to-film, hardcoat, film, and system-level failures.

Step 4 — Rank competing mechanisms

Write at least two credible explanations for each mode. Write them down. For every explanation, name an observation or measurement that would support it and one that would contradict it. Choose tests for discrimination, not for volume.

Step 5 — Reproduce on controlled specimens

Test production-intent constructions on the actual enclosure finish. Include unexposed controls and, where safe, one known-weaker and one known-stronger comparison. Apply the real chemical, stress, UV, thermal, or actuation sequence as closely as the specification requires.

Step 6 — Verify and release corrective action

Repeat the discriminating exposure after the proposed change. Confirm that the original mechanism no longer appears and that color, clarity, feel, fit, bond, sealing, and assembly have not regressed. Update drawings, process instructions, control plans, and approval records.

---

5. Test Matrix: Match the Method to the Property

The quality and testing plan should define the specimen, conditioning, method details, measured output, and acceptance criterion before exposure. A standard method controls a measurement; it does not supply the project's pass limit or root-cause conclusion.

---

6. Failed-Part Evidence Checklist

Send the smallest complete evidence package that can preserve competing explanations:

---

7. Red Flags That Disqualify a Root-Cause Conclusion

• The failed part was discarded, cleaned, peeled, or cut before received-condition documentation.
• The report equates a symptom with a cause.
• PC, PET, painted metal, or chemical exposure is the most specific material description.
• Only failed samples were tested; no same-lot, approval, or known-performance control was included.
• ASTM D3359 is used as a numeric mounting-adhesive peel test.
• A chamber recipe omits lamp, cycle, temperature, moisture, controls, or measured post-exposure property.
• Accelerated hours are translated directly into outdoor years.
• Corrective action is released without reproducing the mechanism and checking collateral properties.

---

8. When an Overlay Redesign Is Not the Best Fix

A tougher film, thicker adhesive, or stronger hardcoat is not the best choice when another subsystem keeps generating the load or contamination. Fix the source when the evidence points outside the overlay.

---

9. Frequently Asked Questions

What causes graphic overlay peeling at the edges?

Graphic overlay peeling can result from poor wet-out, the wrong PSA for the finished surface, contamination, texture, insufficient application pressure or dwell, curvature, edge loading, chemistry, moisture, or thermal strain. Inspect the failure interface and compare conditioned actual-surface coupons before selecting a correction.

Can photos prove the root cause of a lifted overlay?

No. In graphic overlay failure analysis, photos can document symptom, location, direction, transfer pattern, and nearby geometry, which helps rank hypotheses. Root cause normally needs the returned part, controls, construction and process records, exposure history, and a test that distinguishes credible alternatives.

Which test measures graphic overlay adhesive peel strength?

ASTM D3330/D3330M measures peel adhesion for pressure-sensitive tapes through defined procedures. The report must identify the surface, backing, angle, rate, dwell, and conditioning. The result compares a defined bond; The method cannot identify the specific cause of nonuniform adhesion.

Why do faded overlay legends occur with second-surface printing?

Second-surface printing protects ink from direct touch, but color can still change through light exposure, incompatible chemistry, incomplete cure, substrate or ink selection, or print-density variation. Surface haze, gloss loss, and contamination can also make intact legends look faded.

What causes control panel overlay cracking around keys and cutouts?

Cracks near keys and cutouts often involve concentrated strain at emboss radii, inside corners, die nicks, unsupported areas, or assembly curvature. Repeated actuation, temperature change, impact, and chemical stress cracking may interact, so crack origin and exposure history matter.

How should window haze be measured?

Use ASTM D1003 for haze and luminous transmittance on a defined transparent specimen. Record procedure and conditioning, compare before and after a controlled cleaning step, and inspect surface, hardcoat, printed clear, bulk film, adhesive, and display layers before assigning cause.

Can accelerated UV hours be converted into years outdoors?

Not by a universal factor. Correlation under ASTM G151 depends on material, formulation, spectrum, irradiance, temperature, moisture, location, and degradation mode. Accelerated exposure is strongest for controlled comparisons with complete conditions, controls, replicates, and property measurements.

What should be sent with a failed overlay for analysis?

Send original photos, the failed assembly, a same-lot unused part if available, an approved control, drawings and revisions, film/ink/hardcoat/PSA details, enclosure finish, process and lot records, installation history, and the exact chemical, UV, thermal, mechanical, and cleaning exposures.

10. Send the Failed-Part Evidence Package

Send the failed-part photos and exposure history before removing the overlay. Include the evidence checklist above and state what decision the investigation must support. JASPER's engineering support route is one place to submit that package for construction review; an independent laboratory or the incumbent converter may be the better lead when chain of custody, specialized chemical analysis, or third-party reporting is required.
