Chemical Resistance Planning for Graphic Overlays: A Test-Matrix Guide

JASPER certifications: ISO 9001, ISO 13485, IATF 16949, and ISO 14001.

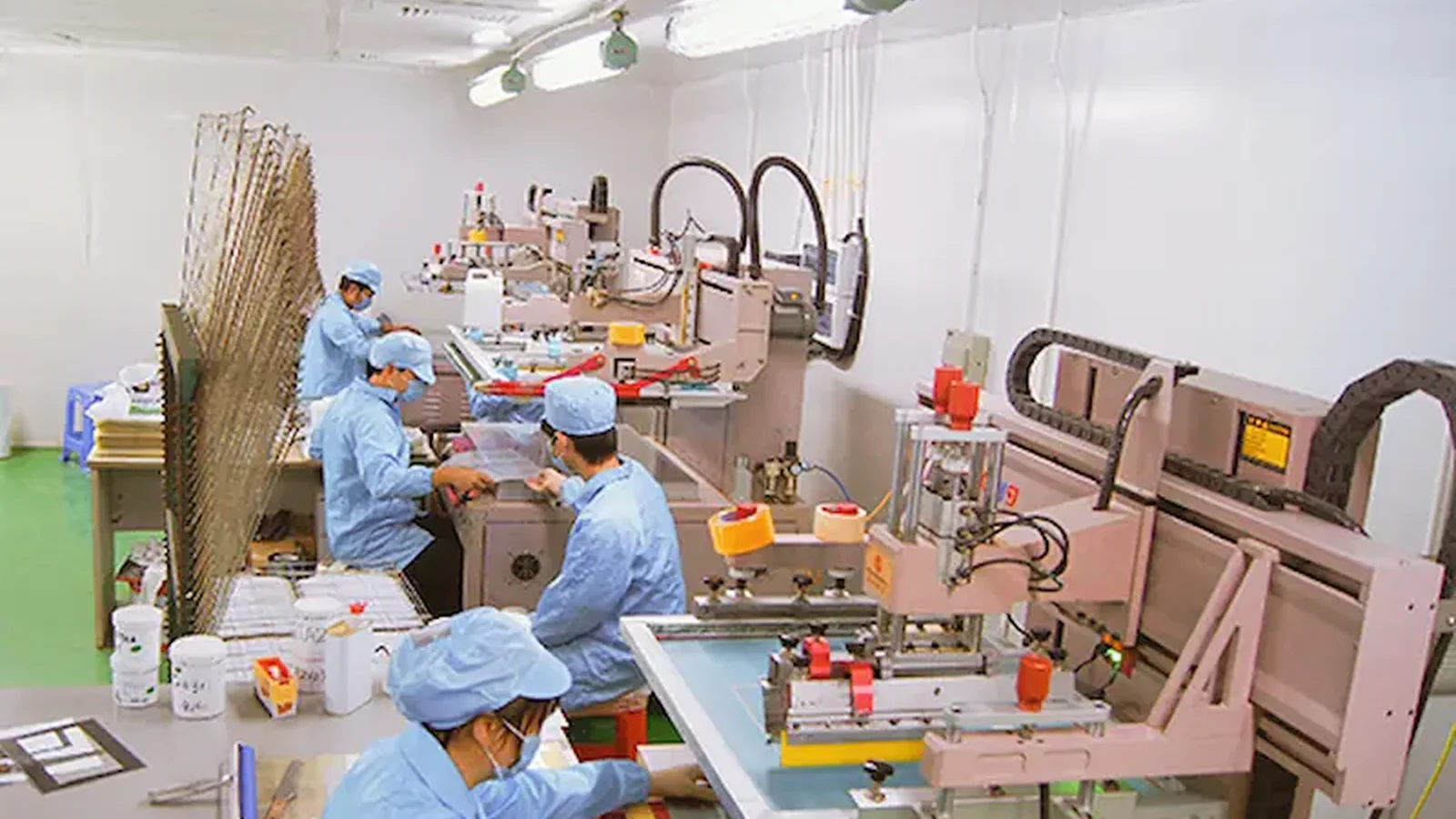

A useful specification answers three questions: what contacts the overlay, how does contact occur, and what change is unacceptable? That applies whether the part is a stand-alone label, the top layer of a membrane switch, or a control surface on a medical device. For custom graphic overlays, the defensible sequence is to define the cleaning procedure, select a candidate construction, and test production-representative parts. A resin family or supplier compatibility table can narrow the options; neither can approve the assembled interface.

1. Why a Generic “Chemical-Resistant” Claim Fails

A graphic overlay is a stack, not a single polymer. The liquid first meets a texture or hardcoat, but it may also reach bare film at a cut edge, second-surface ink through a window, adhesive at the perimeter, or a stressed radius around an embossed key. Each route can produce a different failure.

Cleaner / process fluid
        ↓ face contact, wiping, pooling, edge wetting
┌─────────────────────────────────────────────────────────┐
│ Texture or hardcoat  → gloss change, softening, haze    │
├─────────────────────────────────────────────────────────┤
│ PET or PC film       → swelling, whitening, cracking    │
├─────────────────────────────────────────────────────────┤
│ Second-surface ink   → color shift, loss of adhesion    │
├─────────────────────────────────────────────────────────┤
│ Transfer adhesive    → edge lift, tunneling, residue    │
├─────────────────────────────────────────────────────────┤
│ Housing / lens       → bond loss or substrate attack    │
└─────────────────────────────────────────────────────────┘
        ↑ cutouts, vents, windows, embossed radii, seams

That construction explains why a film data sheet can be accurate yet insufficient. PET has substantially better inherent chemical resistance than polycarbonate. Prolonged exposure can reach a hardcoated PC film through an unprotected edge or by permeating the coating. A face-only coupon therefore misses a route that exists on the drawing.

The failure chain may continue after the surface looks dry:

1. A cleaner wets the hardcoat and an exposed die-cut edge.
2. Repeated dwell and wiping alter the coating, film, or a stressed feature.
3. Liquid reaches the print interface or adhesive perimeter.
4. Graphics lose adhesion, a clear window hazes, or the bond begins to lift.
5. The defect becomes visible only after recovery, flexing, or another cleaning cycle.

The poor decision is not always “wrong film.” It can be a suitable film paired with the wrong hardcoat, incomplete ink cure, incompatible adhesive, or test coupon that protects the very edge exposed in service. The rest of this guide treats those variables separately, then recombines them in a finished-part matrix.

2. Define the Exposure Before Choosing a Material

A cleaning-resistant graphic overlay begins with a controlled exposure record. “Alcohol,” “bleach,” and “hospital disinfectant” are categories, not test liquids. Commercial products can contain different active ingredients, co-solvents, surfactants, pH adjusters, fragrances, and proprietary components. Record the product and procedure actually used.

2.1 Capture the product identity and concentration

Obtain the current safety data sheet (SDS), product label or technical bulletin, and the site's use instruction. Record:

• trade name and manufacturer;
• SDS document number and revision date;
• concentrate or ready-to-use status;
• use dilution and water quality, if mixed on site;
• active ingredients and disclosed concentration ranges;
• lot or formula identifier when the customer controls it.

Two healthcare products show why the trade name matters. The Clorox Healthcare Bleach Germicidal Wipes SDS, USA001166, issued October 15, 2021, lists sodium hypochlorite at 0.55% by weight. The Diversey Oxivir Tb SDS, MS0800545, revised December 4, 2025, lists hydrogen peroxide at greater than 0.1% but less than 1%, plus benzyl alcohol at 1–5%. Testing a generic “disinfectant” would hide that difference. An SDS identifies composition and hazards; it does not declare compatibility with PET, PC, ink, or adhesive.

2.2 Reproduce the cleaning event, not just the liquid

The procedure determines dose and damage mechanism. A qualification request should define at least these variables:

If a clinic's instruction says “keep visibly wet” for a stated contact time, the test should not replace that step with one quick swipe. If an industrial operator sprays a panel, liquid can enter a perimeter or display cutout; a laboratory drop placed in the center of a sealed coupon is not equivalent. For medical-device interfaces, component testing also does not establish the finished device's cleaning validation, risk controls, regulatory compliance, or approval. The finished-device legal manufacturer owns those conclusions.

2.3 Separate normal use, misuse, and accelerated screening

Use three exposure tiers when the project risk warrants them:

1. Normal procedure: the released cleaner and instructions used in the field.
2. Credible challenge: longer dwell, missed dry step, edge pooling, or the upper allowed concentration—only where the product team considers the event plausible.
3. Accelerated screen: elevated time or temperature used to reject weak candidates, with no unsupported conversion to years of service.

Tekra publishes a useful example of explicit supplier conditions. Its one-hour continuous surface contact at 23°C (73°F) for industrial chemicals such as acetone, concentrated hydrochloric acid, hexane, and isopropyl alcohol. It also describes 24-hour contact at 50°C (122°F) for selected household products, including cleaners, 25% DEET, and sunscreen. Those conditions show good reporting discipline. They are not universal acceptance limits, and a 24-hour supplier screen cannot be translated into a field-life claim without a validated acceleration model.

3. Choose the Overlay Construction as a System

There is no single chemical resistant overlay material that wins every project. Film chemistry, optical requirements, forming depth, tactile behavior, print process, adhesive wet-out, and edge design all matter. Use the following table to create a shortlist, not a final approval.

3.1 Film and hardcoat must be named by grade

“Polyester” and “polycarbonate” are not purchase specifications. Record supplier, product name, nominal thickness, print treatment, hardcoat designation, texture, and side orientation. MacDermid Alpha's Autotex CPI-00033/8 technical data sheet, issued January 4, 2023, identifies a textured hardcoated PET film for applications requiring flexibility with abrasion and solvent resistance. That is traceable evidence for one product family—not permission to substitute an unnamed textured PET.

PET also presents a useful tradeoff. Tekra's polyester surface-treatment note explains that the polymer's resistance to chemical attack can make reliable printing difficult without a surface treatment or coating. A film can resist the cleaner while the ink-to-film interface fails. The drawing and bill of materials must therefore control the printable side and treatment, not just the resin acronym.

3.2 Subsurface printing protects graphics but does not seal the assembly

Second-surface printing places the graphics behind the film, reducing direct wipe abrasion. It does not remove exposure at windows, through-holes, key perimeters, vents, or cut edges. Nor does it prove overlay ink durability after an aggressive formulation migrates through a film/coating interface or reaches the printed side.

Ink evidence should name the series, substrate, cure process, and test medium. The Nazdar 3400 UV Screen Ink TDS identifies the ink for second-surface printing on polycarbonate and top-coated polyester used in membrane and graphic overlays. Its published physical-property testing reports a pass after more than 100 isopropyl-alcohol double rubs. That result supports an ink-screening decision for the stated conditions. It says nothing by itself about sodium hypochlorite, peroxide formulations, the customer's wipe load, incomplete cure, or an assembled edge.

For production control, record ink series and color, batch, mesh or deposition control where relevant, cure settings, measured cure checks, print order, and rework. A dark flood coat, translucent window, metallic color, and dead-front graphic can have different cure or adhesion behavior even when the carrier film is unchanged.

3.3 Adhesive data are one layer of the evidence

The adhesive sees a different environment from the face film. It may receive a lower concentration after diffusion—or a concentrated dose at an unsealed edge. Surface energy, texture, contamination, application pressure, dwell before testing, and housing chemistry all affect the bond.

The September 2025 3M 467MP technical data sheet identifies a 200MP acrylic adhesive at 2.3 mil (0.06 mm) nominal total thickness. Properly applied nameplate and trim parts remain secure after exposure to numerous chemicals, including oil, mild acids, and alkalis, under the named test media. The related 3M 468MP data sheet identifies the same adhesive family at 5.2 mil (0.13 mm), with thickness helping wet-out on slightly textured or irregular surfaces. Greater thickness does not automatically mean broader chemical compatibility.

Test the specified adhesive against the actual housing, preparation, bond pressure, dwell, edge geometry, and cleaner. “3M adhesive” is no more complete than “PET film.”

3.4 Put edge and stress conditions on the drawing

The drawing should identify:

• perimeter seal width and any adhesive-free keep-outs;
• cut edges expected to receive spray or pooling;
• windows, holes, vents, and tails;
• embossed keys, formed domes, and bend radii;
• graphic registration near exposed features;
• housing gaps or capillary channels;
• face-only and edge-challenge test locations.

Mechanical state is especially important for PC. A flat, unstressed coupon can appear acceptable while a formed or clamped feature develops crazing. At least one condition should use the mounted or deliberately stressed production geometry when the design places the film under strain.

4. How to Build a Graphic Overlay Chemical Resistance Test Matrix

A graphic overlay chemical resistance matrix should cross real liquids and procedures with production-representative constructions and exposure paths. Keep supplier screening separate from application qualification. The first removes poor candidates; the second supports the project's approval decision.

4.1 Choose a method family, then write the project-specific procedure

Several standards provide useful method concepts, but none substitutes for a complete overlay protocol:

A project can adapt the applicable concepts while defining its own chemical, dose, dwell, wiping, recovery, and pass/fail rules. If a contract or regulated procedure names a standard, the engineer should obtain the controlled document and follow its current requirements rather than relying on this summary.

4.2 Use production-representative samples

A useful sample set represents the released construction:

• specified film grade, thickness, texture, and hardcoat;
• all print layers, colors, windows, and production cure;
• released adhesive and liner;
• die-cut edges, holes, tails, and embossing;
• the actual or technically equivalent mounting substrate;
• normal bond preparation, pressure, and dwell;
• both unstressed and mounted/stressed geometry where applicable.

The number of specimens and allowable failures are project decisions tied to risk, variability, and any governing protocol. This guide does not invent a universal sample count. Retain an unexposed control from the same production lot and record each specimen ID.

4.3 Matrix template

The following matrix is an example structure, not a pre-approved recipe. Values in brackets must be replaced with the customer's released procedure. The two named products illustrate how official SDS information enters the record; they do not imply compatibility.

Do not combine products merely because they share an active ingredient. Formulation, concentration, pH, co-solvent, surfactant, and residue can differ. Do not mix chemicals unless the real procedure deliberately does so and the safety review permits it.

4.4 Separate face resistance from edge resistance

Run at least two geometrically distinct conditions when service exposure can reach an edge:

• Face condition: liquid remains within the protected field, away from cuts and windows.
• Edge challenge: controlled wetting reaches the perimeter, cutout, window, tail, or embossed feature identified by the drawing.

This split diagnoses the construction. A face pass with an edge failure may support a housing or seal redesign rather than a film change. Conversely, widespread face haze or softening points toward hardcoat/film incompatibility even when the adhesive remains bonded.

4.5 Keep screening and approval claims separate

A supplier's one-hour test, 24-hour elevated-temperature screen, or IPA double-rub result can justify which samples to build. Approval should use the actual product or controlled formulation and the released procedure. If accelerated conditions are included, report them as challenge screens. Do not convert cycles or hours into a service-life promise unless the project has a validated correlation model.

5. Set Failure Criteria Before the First Exposure

“No visible damage” is too vague for repeatable approval. Define the inspection method, lighting, viewing distance, instruments, functional checks, rating scale, and allowed change before testing starts. Record a baseline for every sample.

Inspect at controlled times. An immediate wet observation may find softening; a delayed observation can reveal whitening, cracks, bond loss, or partial recovery. Record both outcomes rather than replacing one with the other. ASTM D543 identifies multiple property changes for plastics, while ASTM D1308 lists surface effects such as discoloration, gloss change, blistering, softening, swelling, and adhesion loss. The project's criteria should retain the response variables that matter to function and appearance.

Overlay ink durability deserves its own acceptance line. A film that remains clear does not compensate for ink transfer, color migration, or loss of adhesion around a window. Likewise, minor cosmetic change may be unacceptable on a safety legend even if the bond remains intact. Tie each limit to the drawing, control plan, risk analysis, or approved appearance standard.

6. Six-Step Procurement and Approval Process

This process converts an exposure problem into traceable sourcing and validation inputs.

Step 1 — Build the chemical inventory

Ask operations, service, infection prevention, maintenance, and end users for every cleaner and process fluid that can contact the panel. Collect the current SDS, product instructions, use dilution, wet-contact time, application method, rinse/dry steps, temperature, and frequency. Include credible maintenance fluids and accidental splash cases only when the project risk review identifies them; an unlimited chemical list produces a meaningless requirement.

Step 2 — Mark exposure paths on the assembly

Annotate the drawing or a photograph with spray zones, pooling areas, vertical runoff, windows, cutouts, tails, seams, and exposed edges. Identify stressed features such as formed windows or embossed keys. Decide which conditions are face-only, edge-wet, mounted, or flexed. This step often reveals that enclosure geometry can reduce exposure more effectively than a more elaborate coating.

Step 3 — Request a controlled candidate construction

The request should name or require disclosure of:

• film supplier, grade, thickness, hardcoat/texture, and print side;
• ink manufacturer/series or controlled equivalent, print order, and cure process;
• adhesive manufacturer, grade, and thickness;
• edge/seal design and mounting substrate;
• supplier data relevant to each listed chemical or chemical class;
• substitutions that require written approval and repeat qualification.

A candidate can be rejected before tooling if its evidence consists only of “chemical-resistant PET” or “industrial adhesive.”

Step 4 — Approve the written protocol before samples arrive

Create the matrix from Section 4. Define sample construction, controls, conditioning, application volume, dwell, wipe medium, load/strokes, temperature, repetition, edge locations, inspection times, and acceptance criteria. Identify safety controls for handling and disposal. Link the protocol to quality testing records, but do not imply a certification or laboratory accreditation that has not been verified.

Step 5 — Test representative parts and diagnose the layer

Run screening first if several films, hardcoats, or inks remain. Run the approval condition on the chosen production-intent construction. When a sample fails, locate the layer and route: face coating, film, printed interface, adhesive perimeter, stressed feature, or housing. Change one controlled factor where possible, then repeat the relevant condition. Changing film, ink, adhesive, and geometry together prevents a useful root-cause conclusion.

Step 6 — Release the construction and control changes

The approval package should identify the tested lot and drawing revision, exact material stack, test-liquid identity and SDS revision, procedure revision, raw observations, photographs, deviations, failures, and disposition. Production release should define which film, coating, ink, cure, adhesive, die geometry, and housing changes trigger technical review or requalification.

Drawing and sample-approval checklist

• [ ] Chemical/product list includes supplier and SDS revision.
• [ ] Concentration or use dilution is controlled.
• [ ] Dwell, wipe medium, mechanics, rinse/dry, temperature, and frequency are defined.
• [ ] Film grade, thickness, hardcoat, texture, and printable side are specified.
• [ ] Ink system and cure controls are traceable.
• [ ] Adhesive grade/thickness and mounting substrate are specified.
• [ ] Perimeter, windows, holes, tails, and embossing match production intent.
• [ ] Face and edge challenges are separated.
• [ ] Unexposed, water-wipe, and dry-wipe controls are included where useful.
• [ ] Immediate and recovery inspections use predetermined limits.
• [ ] Report ties every sample to lot, drawing, and process revision.
• [ ] Change-control triggers are written before production release.

7. Red Flags That Should Stop Approval

• A blanket “resistant to chemicals” statement — it omits the liquid, concentration, time, temperature, and acceptance limit.
• Only the resin family is disclosed — PET or PC does not identify treatment, hardcoat, thickness, or supplier grade.
• The ink is described only as UV or solvent-based — series, substrate compatibility, cure, and adhesion evidence are missing.
• The adhesive is described only by brand — grade, thickness, housing substrate, preparation, and edge condition remain unknown.
• A flat sealed coupon represents an exposed production edge — the test removes the expected ingress path.
• One drop at room temperature stands in for repeated wet wiping — abrasion, residue, recovery, and frequency are absent.
• An accelerated screen is converted directly into years of life — no validated acceleration model supports the claim.
• The report says “pass” without specimen, lot, drawing, or procedure revisions — the result cannot control a later build.

8. Frequently Asked Questions

What does graphic overlay chemical resistance actually mean?

Graphic overlay chemical resistance means the specified finished construction remains within agreed appearance, dimensional, adhesion, and functional limits after a defined chemical exposure. The definition must include the liquid, concentration, temperature, dwell, wipe procedure, repetition, geometry, inspection timing, and acceptance criteria. It is not a universal property of PET or PC.

Is PET always the best chemical resistant overlay material?

No. PET is often the stronger starting point when chemical exposure and repeated flexing dominate, and Tekra reports better inherent chemical resistance than PC. PET is not automatically best when deep forming, rigidity, thickness, or optical requirements favor another film. Grade, hardcoat, print treatment, ink, adhesive, and finished geometry still require qualification.

Can hardcoated polycarbonate be used for a cleaning resistant graphic overlay?

Yes, when PC's optical or forming properties matter and testing supports the actual cleaner and geometry. A hardcoat can improve intermittent face exposure, but Prolonged exposure may reach PC through coating or an unprotected edge. Include edge-wet and mounted/stressed samples rather than approving a flat face-only coupon.

Does reverse printing guarantee overlay ink durability?

No. Reverse or second-surface printing protects graphics from direct wipe abrasion, but chemicals can reach ink at cutouts, windows, edges, or through another layer. Ink series, substrate treatment, deposition, cure, color stack, adhesive contact, and chemical procedure all affect overlay ink durability.

Which standard should be used to test a graphic overlay?

There is no single standard in this source set that approves every finished overlay. ASTM D543 addresses plastics, ISO 2812-3 and ASTM D1308 address coating responses, and ASTM F1598 is a withdrawn legacy overlay spot-test reference. Use the applicable controlled method concepts, then add the production stack, wipe procedure, edges, stress, controls, and project acceptance limits.

How should bleach and hydrogen-peroxide cleaners be represented in a test matrix?

List each commercial product separately with manufacturer, SDS number/revision, use concentration, application form, dwell, wiping, rinse/dry step, temperature, and frequency. Do not reduce them to “disinfectant.” Clorox Healthcare Bleach Germicidal Wipes and Diversey Oxivir Tb have different active ingredients and formulations, and neither SDS predicts overlay compatibility.

Should chemical testing include exposed edges and embossed keys?

Yes, when those features can be wetted in service. Cut edges, windows, holes, tails, and embossed radii can expose layers or mechanical stress absent from a flat coupon. Test face-only and edge/feature conditions separately so a failure can guide a film, coating, seal, adhesive, or housing change.

What information should an OEM send to an overlay manufacturer?

Send the chemical list and current SDS files, concentration or dilution, cleaning/application procedure, dwell, wipe medium and mechanics, rinse/dry step, temperature, expected frequency, marked exposure locations, drawing and stack requirements, mounting substrate, acceptance criteria, and change-control expectations. That package is more useful than requesting a generic chemical-resistance statement.

9. What to Send Next

Before requesting samples, combine the chemical inventory, cleaning procedure, marked exposure drawing, candidate stack, and acceptance limits into one controlled package. The practical next step is to share the chemical list and cleaning procedure with the overlay engineering team. Include SDS revisions and photographs or drawings showing edges, windows, embossing, and likely pooling routes.

Review the proposed film, hardcoat, ink, adhesive, edges, and formed features against the named chemical procedure on production-intent parts. Component data narrow the candidates; the finished test matrix controls approval.
