What Is an HMI Panel? Hardware Layers and OEM Integration

What Is an HMI Panel in an OEM Drawing?

The letters HMI mean human-machine interface. Manufacturing HMI work extends beyond the front surface to graphics, navigation, alarms, security, programs, and database interfaces. That broad scope explains why the words “HMI panel” are not enough for a drawing or purchase order.

A mechanical team may use the term for a bezel, cover lens, membrane keypad, display opening, gasket, and connectorized circuit. An automation team may use it for a complete terminal that exchanges data with a PLC. Both usages occur in industry. A powered catalog terminal represents the finished-terminal meaning; a front panel built around OEM electronics represents the assembly meaning.

The practical rule is simple: define the noun in the bill of materials. “HMI panel, one piece” is ambiguous. “Connectorized front-panel assembly, excluding display module, controller firmware, PLC logic, enclosure, and final system validation” gives engineering and sourcing teams a testable boundary.

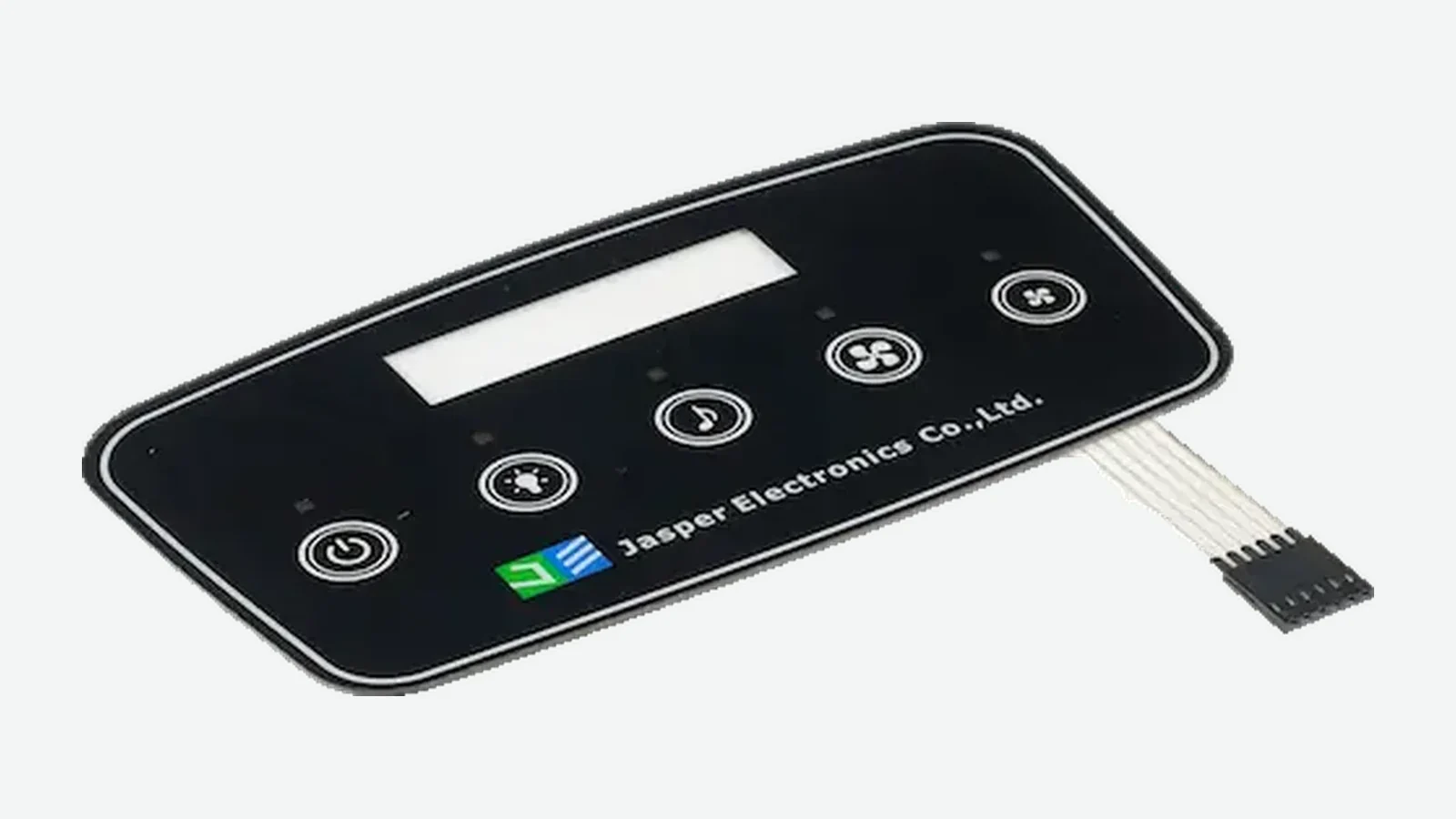

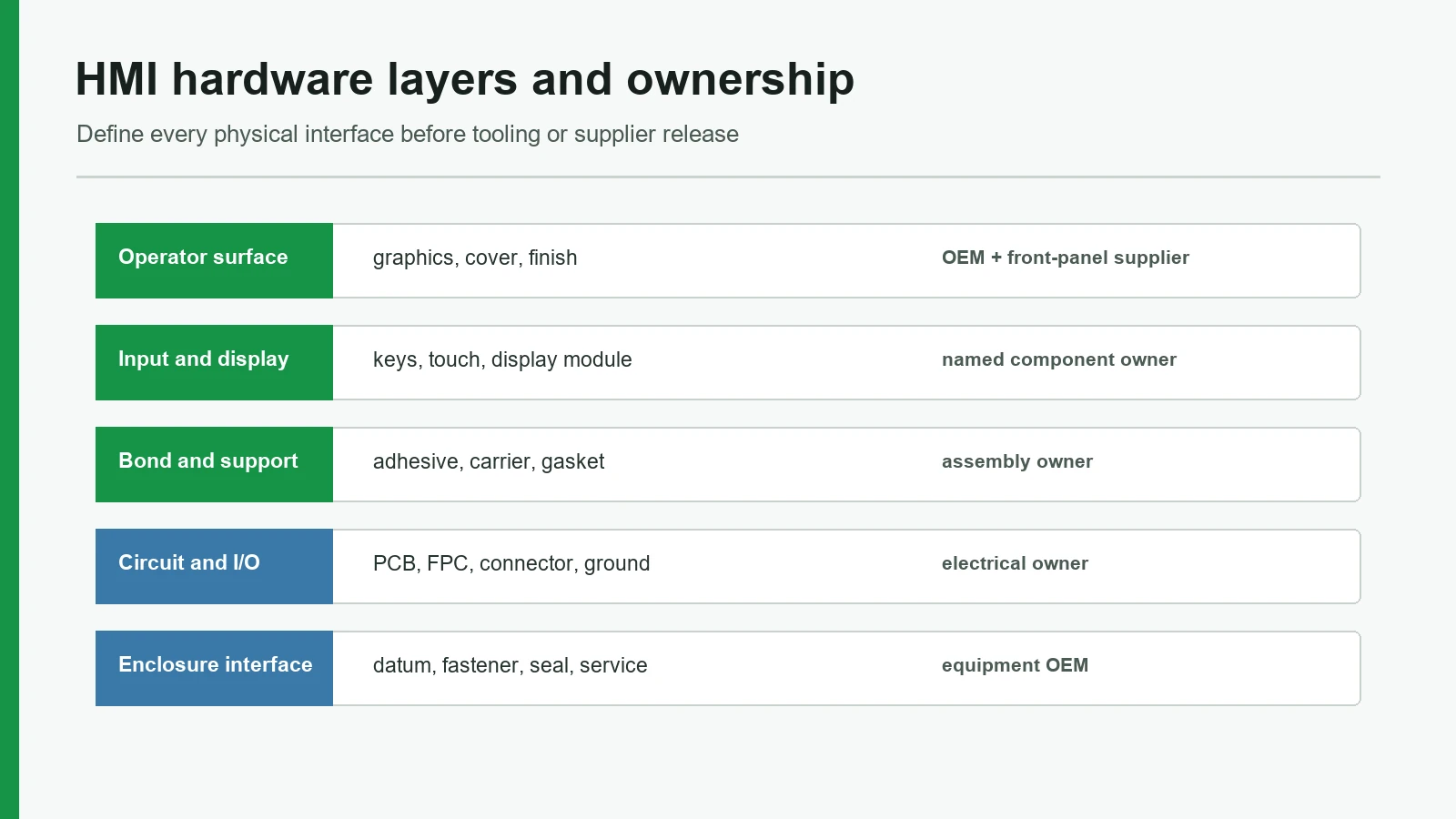

HMI Panel Hardware: A Layer-by-Layer Anatomy

HMI panel hardware is not one universal stack. A fixed-key interface may have no display. A bonded touch display may omit discrete keys. A powered terminal may place the processor and communication electronics inside its enclosure. The following cross-section is therefore a menu of interfaces, not a standard JASPER bill of materials.

OPERATOR SIDE
    Printed graphic overlay, rigid faceplate, or cover lens
    ├─ opaque legends, transparent window, dead-front graphics, surface finish
    Input layer
    ├─ membrane contacts, silicone/mechanical keys, or capacitive electrodes
    Spacer, carrier, pressure-sensitive adhesive, or optical bond
    Display window / touch-to-display interface
    Display module and backlight (when included)
    PCB, FPC, printed circuit, controller, or interface board
    Connector, cable, or flex tail with strain relief
    Rear adhesive, gasket, bezel, studs, screws, or capture features
    OEM enclosure opening, support ledge, ground path, and fasteners
MACHINE SIDE
    Host electronics → runtime/controller → PLC or machine control → field devices

1. Operator surface

The top surface carries instructions and controls the viewing path. It may be printed polyester, a metal faceplate, acrylic, glass, or another project-approved construction. Artwork must identify legends, warnings, language, transparent windows, indicator apertures, and inactive masks. Surface selection depends on actual cleaners, contact wear, glare, ultraviolet exposure, and contaminants; “industrial grade” is not a material specification.

2. Input layer

The input layer converts an action into an electrical signal. Membrane contacts provide fixed locations in a thin package. Silicone or mechanical keys can add height and travel. Capacitive electrodes detect a change through a cover. Cover properties, sensor geometry, nearby conductors, and shielding are functional capacitive-touch design inputs. A cosmetic cover change can therefore require electrical retuning.

3. Spacing and bonding layers

Spacers, carriers, pressure-sensitive adhesives, optical adhesives, and mechanical supports establish gaps and transfer loads. Their drawings should control thickness, cutouts, bond land, flatness, keep-outs, vent paths where needed, and rework strategy. An adhesive can bond the panel to an enclosure, but it does not correct a warped mounting surface or an unsupported key area.

4. Display window, touch sensor, and display module

These are three different items. The window provides a viewing path and may contain a printed mask. The touch sensor detects position or contact and can have its own FPC and controller. The display module generates the image and has a controlled outline, active area, connector, mounting pattern, power interface, backlight, and thermal limit.

Nominal diagonal size cannot release tooling. The OEM must supply the actual display drawing and revision so the team can align the active area, visible area, window mask, touch target, mounting points, connector, and enclosure datum. The same rule applies when a display and touch sensor arrive as a pre-bonded module.

5. Circuit, controller, and connector

A printed circuit, FPC, or PCB may route keys, electrodes, indicators, display signals, power, grounds, shields, and test points. The drawing must distinguish passive routing from active control. If a board scans keys, tunes capacitive channels, drives indicators, or communicates with a host, the contract should name the schematic, firmware, programming, diagnostic, and update owners.

Connector details belong in the first stack review, not the last assembly meeting. Required inputs include the mating part, pin numbering, orientation, latch access, cable or tail route, bend keep-out, strain relief, insertion sequence, and service access. An electrically correct connector can still be impossible to mate after the display and enclosure are installed.

6. Gasket, mounting, and enclosure interface

The final physical boundary can use rear adhesive, a compressed gasket, bezel capture, fasteners, studs, clips, or a combination. Mounting choice depends on panel size, support, display mass, service plan, enclosure flatness, and assembly sequence. The cross-section should show the gasket path, compression land, fastener locations, seams, connector openings, and any break in the sealing path.

How an HMI Panel Carries a Command and Returns Feedback

A human machine interface panel sits inside a longer operator-to-machine chain. The operator does not touch a PLC register; they touch a labeled target whose meaning must remain consistent through hardware and software.

Operator task
  → legend, icon, key, touch target, display, or indicator
  → physical input or viewing layer
  → switch/sensor channel, circuit, connector, and controller
  → HMI runtime or host software
  → PLC or machine controller
  → actuator or process response
  → visual, tactile, audible, or haptic feedback

Every arrow needs an owner. A printed START legend belongs to artwork control. Its key or touch zone belongs to the input design. The electrical channel belongs to the circuit and pin map. Permission logic belongs to software. Machine motion belongs to the control system. A front-panel inspection cannot prove that the final command is safe or that the machine responds correctly.

ISO 9241-210:2019 addresses human-centred design for interactive systems through the lifecycle. For an OEM, that supports a task-first sequence: define what the operator must see, decide, enter, and confirm before freezing colors, materials, display size, or touch technology.

Feedback must also distinguish detection from acceptance. A tactile snap confirms key movement. An LED can show a local state. A display message can confirm that software accepted a command. None alone proves the machine completed the requested action unless the complete control and feedback path was designed to report it.

Which HMI Architecture Fits the Operator Task?

An industrial HMI front panel should be selected from task, environment, software, and service constraints—not from a preference for touchscreens or physical buttons. This decision table sets the boundary before detailed design.

A custom assembly is not automatically the best answer. A catalog HMI terminal may be a better fit when the OEM values an established software environment, standard communications, field replacement, and a catalog enclosure more than unique front geometry. A membrane-switch panel may be better when the machine only needs fixed commands and status lamps. A capacitive touch panel becomes credible only when the complete cover, sensor, controller, grounding, moisture, glove, and feedback conditions can be tested.

Display, Touch, and Enclosure Interfaces Need Shared Datums

A stack can fail even when every individual part meets its own print. The common cause is that each supplier controls a different origin. The cover artwork may reference the panel outline, the touch sensor its FPC edge, the display its mounting tabs, and the enclosure its cutout. Shared datums convert those separate drawings into one assembly.

At minimum, define:

• panel outline and installed orientation;
• display active-area center and visible-area limits;
• touch active area or physical key centers;
• enclosure opening and support ledge;
• fastener, stud, clip, or locating features;
• gasket path and compression land;
• connector or tail exit and bend keep-out;
• graphic mask overlap and indicator locations; and
• tolerance owner for each mating interface.

Touch integration adds an electrical stack to the mechanical one. The cover and shielding environment are part of capacitive sensor design. That means a thicker cover, different dielectric, added conductive coating, nearby metal bezel, or revised ground arrangement can change tuning. The touch controller, cover, sensor, display, enclosure, and firmware must be evaluated in the representative assembly—not as isolated samples.

Ingress claims require the same discipline. IEC 60529 classifies degrees of protection provided by enclosures. A gasket, adhesive, overlay, or membrane switch may contribute to a sealing design, but a loose component does not make the assembled HMI or machine “IP65.” The evaluated configuration includes seams, compression, fasteners, openings, connectors, installation, and test method.

Hardware, Software, and Validation Responsibility Matrix

A responsibility matrix should be approved before quotation and revisited before design release. The assignments below are a starting structure; the contract may move any row, but it must not leave a row ownerless.

This separation protects both sides of the project. It prevents a supplier from being held responsible for unspecified system behavior, and it prevents the OEM from assuming that a connectorized panel has already been validated as a complete HMI system.

Failure Chain and Validation Matrix

A useful test plan starts with the failure chain, not a generic list of laboratory capabilities. Each risk needs a representative article, a method, acceptance criteria, and an owner. JASPER’s testing and quality planning page can support the component and assembly discussion, but the contract-specific matrix controls what is actually performed.

Application Boundaries Change the Evidence Required

The physical architecture can appear in industrial machinery, medical equipment, automotive controls, marine equipment, and other operator interfaces, but the application name does not prove suitability. It changes the evidence package.

A medical equipment panel, for example, remains a component or assembly until the finished-device manufacturer verifies the complete device, human factors, risk controls, cleaning, electrical safety, software, and regulatory obligations. The same boundary applies in automotive and marine work: supplying a front-panel component does not establish vehicle-level or vessel-level approval. ISO 9241-210 can guide context-of-use work, and IEC 60529 can define enclosure test language, but neither creates a blanket JASPER certification.

The equipment owner should translate the application into measurable conditions: operator task, installation position, ambient and internal temperature, cleaners, fluids, gloves, lighting, expected misuse, power, grounding, vibration, maintenance, and required compliance evidence.

OEM Drawing and Sample-Approval Checklist

A procurement team can request an HMI assembly before every design choice is closed. Open items should be named, assigned, and dated rather than hidden behind “supplier to recommend.” The following package is sufficient to start a disciplined stack-up review.

Drawing and interface inputs

1. Equipment context: machine type, installation position, operator groups, tasks, and fault/maintenance conditions.
2. System boundary: block diagram for front surface, input layer, display, PCB/FPC, controller, runtime, PLC, power, ground, communications, and enclosure.
3. Mechanical definition: panel outline, enclosure opening, support surfaces, shared datums, fasteners, flatness, keep-outs, and service direction.
4. Display data: manufacturer, exact model/revision, outline, active area, visible area, mounting, connector, power, data interface, and controlled limits.
5. Input definition: key centers or touch area, tactile/feedback intent, gloves, moisture, controller and tuning ownership, and disabled/fault behavior.
6. Graphics: vector artwork, legends, symbols, language, color references, finish, windows, masks, indicators, and approved viewing conditions.
7. Electrical data: circuit map, schematic owner, pinout, mating connector, voltage/current limits, tail/cable route, ground/shield concept, and test points.
8. Mounting and sealing: adhesive surface, gasket path, compression land, enclosure material, seams, openings, fastener sequence, and any required enclosure test.
9. Use environment: operating/storage conditions, cleaners, chemical contact, lighting, ultraviolet exposure, contamination, vibration, and maintenance method.
10. Responsibility matrix: owner for every drawing, component, firmware item, inspection, prototype, test, compliance activity, and design change.

Sample-approval flow

Task and boundary review
  → stack drawing and shared-datum review
  → appearance/material sample where needed
  → fit and assembly-sequence prototype
  → electrical input/display/connector prototype
  → representative enclosure and environment validation
  → controlled golden sample plus inspection/test criteria
  → production release and change-control baseline

A color plaque can approve color; it cannot approve touch operation. A bare sensor can support tuning work; it cannot approve enclosure grounding or water behavior. A fitted enclosure sample can prove access and alignment; it cannot approve PLC logic. Each sample approval should name exactly what was accepted and what remains open.

For a fuller drawing package, retain the HMI panel assembly design checklist. The HMI panel versus membrane-switch panel comparison can support the architecture decision. Both resources keep architecture selection separate from drawing release.

Frequently Asked Questions

What is an HMI panel in simple terms?

An HMI panel is the physical interface through which an operator sees information and enters commands for a machine or system. It may be a complete powered terminal, or it may be only a front-panel assembly containing graphics, keys or touch sensing, a display window, circuits, connectors, and mounting features. The project BOM must define which meaning applies.

Is an HMI panel the same as a touchscreen?

No. A touchscreen is one possible input layer. An HMI panel can use membrane keys, silicone or mechanical buttons, rotary controls, a non-touch display, capacitive touch, or a hybrid arrangement. The HMI also includes the visible information, feedback path, electrical interfaces, and mechanical boundary needed for the operator task.

What hardware is inside a human machine interface panel?

A human machine interface panel may include a graphic overlay or cover lens, key or touch-sensor layer, spacer or adhesive, display window, display module, backlight, PCB or FPC, controller, connector, gasket, bezel, and enclosure features. Not every design contains every item, so the cross-section and BOM should identify included layers and their owners.

What is the difference between an HMI front panel and a powered HMI terminal?

An HMI front panel is usually the operator-facing physical assembly and may rely on customer-owned display, controller, runtime, and machine electronics. A powered HMI terminal normally combines display, input, processor, communications, runtime support, and enclosure. Powered catalog products represent the terminal category.

Does an industrial HMI front panel need physical keys?

Not always. Physical keys suit fixed, repeated, gloved, or eyes-limited actions when the chosen construction can be validated. Touch input suits reconfigurable screens and continuous surfaces. A hybrid can retain physical controls for selected actions while using touch for contextual tasks. Safety-related actions require a system-level risk and control review outside this component article.

Can a sealed overlay make the complete HMI IP65?

No. IEC 60529 applies ingress-protection classifications to enclosures. An overlay, adhesive, membrane switch, or gasket can contribute to the sealing strategy, but the final result depends on the assembled enclosure, seams, openings, connectors, compression, fasteners, installation, and test method. Only the evaluated configuration can support an IP claim.

What drawings are needed before HMI panel tooling?

Provide the panel and enclosure drawings, shared datums, exact display-module drawing, touch/key map, artwork, circuit and pinout, connector and cable route, mounting and gasket details, controlled environmental inputs, responsibility matrix, and acceptance plan. A front-view rendering or nominal screen size does not control the complete stack.

Who validates the finished HMI system?

The contract should assign the work, but the equipment OEM and final integrator normally retain responsibility for runtime behavior, PLC or machine logic, safety functions, communications, enclosure performance, human factors, and finished-equipment compliance unless those duties are explicitly transferred. A front-panel supplier can validate only the component and assembly requirements included in its controlled scope.
