Polycarbonate Label Material Guide for OEM Equipment

JASPER certifications: ISO 9001, ISO 13485, IATF 16949, and ISO 14001.

This guide covers static identification and control labels. A face layer that repeatedly flexes over keys, seals an interface, or operates a switch belongs in graphic-overlay or membrane-switch scope. Use the custom label-nameplate route for production review after the material stack, housing, exposure, artwork, and acceptance method are defined.

---

1. Why a polycarbonate label fails as a system

A durable control label fails at interfaces, not at the material name. “Polycarbonate” leaves the film grade, surface pair, coating, gauge, ink, adhesive, enclosure, exposure, and inspection state undefined. Two drawings can both call out PC and produce visibly different parts.

The common failure chain is straightforward:

Missing use condition → generic film callout → incompatible print or adhesive → sample approved only by appearance → edge lift, ink loss, haze, cracking, or unreadable marking in service

Supplier documents show why a generic callout is weak. Covestro's polycarbonate film selector separates graphic, optical, weatherable, scratch-resistant, chemical-resistant, and flame-retardant families across multiple gauges. Likewise, 3M adhesive data are representative or typical rather than finished-part specifications.

The engineering decision is therefore not “Is polycarbonate durable?” It is “Does this named construction remain legible, attached, dimensionally acceptable, and optically usable after the declared exposures?” The drawing, approved sample, and validation record must answer that question together.

2. How to specify polycarbonate label material as a complete stack

Polycarbonate label material is a PC film—often clear or translucent—used as the face of a printed, converted, and usually pressure-sensitive assembly. With second-surface printing, the user touches the film while the graphics sit behind it. That geometry protects the ink from direct contact, but it does not make the label immune to chemicals, UV, abrasion, edge attack, or adhesive failure.

A practical label-stack diagram

Operator, cleaner, sunlight, abrasion
                    ↓
Visible PC surface — gloss, matte, velvet, or hardcoat
PC film — named grade, gauge, color, and tolerance
Printed layer — second surface unless the drawing says otherwise
Optional white, blocker, translucent, or selective optical layers
Pressure-sensitive adhesive — named family and thickness
Release liner — removed during controlled installation
OEM housing — actual resin/metal, coating, texture, curve, and cleanliness

A hardcoat may protect the visible face but restrict printing on that face. A thicker adhesive may follow a textured housing better but can change edge height or die-cut behavior. A clear window may look acceptable in bare film and fail after printing, lamination, or assembly.

Separate a label from an active overlay before material selection

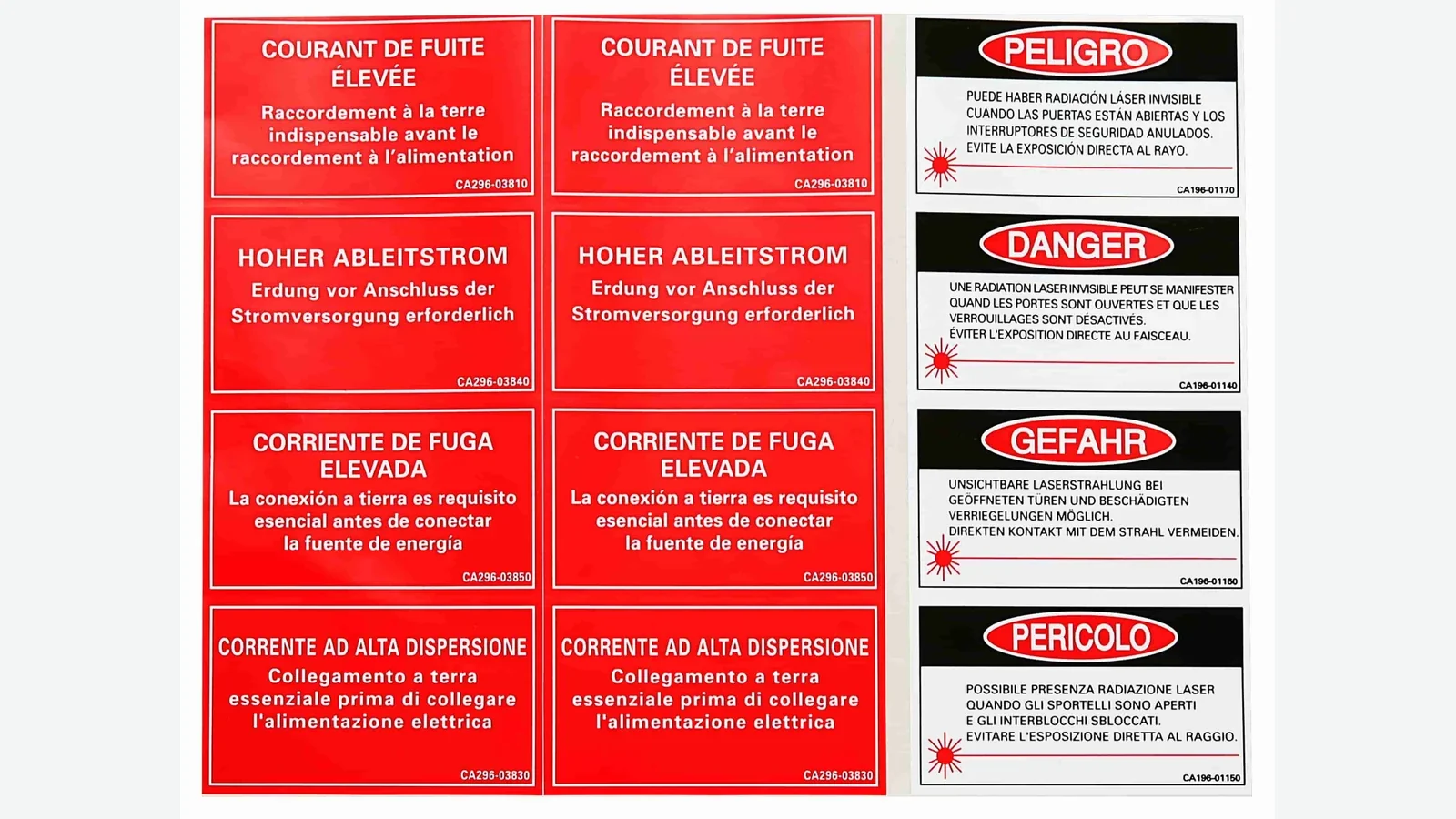

A label identifies, warns, rates, brands, or marks a static control location. A working graphic overlay assembly may also flex over keys, register to a switch circuit, form a seal, carry embossed features, or control light. Once repeated flexing or switch actuation enters the requirement, a static printed polycarbonate nameplate is no longer the full design problem.

Decide whether PC is the right starting family

Polycarbonate is not the best choice when repeated key flexing controls the failure mode, the housing curve stores peel stress at the edge, the declared fluids attack the selected grade or coating, or the marking must survive conditions better addressed by a rigid mechanically attached plate. In those cases, change the material family or product architecture before refining a PC drawing.

The planned PET versus polycarbonate harsh-environment guide owns the broader PC/PET comparison. This article keeps the narrower job: defining a purchasable PC label construction.

3. Use this 10-point evaluation framework

The ten decisions are scope, film grade, gauge, visible surface, print construction, optical zones, housing surface, adhesive, converted geometry, and validation. They are ordered from architecture to verification because a late adhesive or test choice cannot rescue an incorrect product boundary.

3.1 Lock label scope before choosing film

Write what the part does. Record whether it is identification only, carries a regulatory or safety marking, frames a display, labels separate mechanical controls, or forms the active face of an HMI. Also state whether users will press or flex the film and whether the label contributes to enclosure sealing.

Good signal: The drawing says “non-actuated equipment label” and identifies every cutout, display zone, and nearby control.

Red flag: The RFQ calls the same part a decal, label, nameplate, overlay, and membrane switch without defining function.

3.2 Name the film grade and approved-equivalent process

Specify supplier, grade, nominal color, surface on each side, coating, and approved-equivalent rules. Current supplier portfolios illustrate the differences: Tekra lists LEXAN 8B35V as velvet on one side and matte on the other, while Covestro lists separate Makrofol families for optical, weatherable, scratch-resistant, and label/nameplate applications. A trade name alone is not enough.

If second sourcing is allowed, define equivalence by measurable construction and performance. “Equivalent polycarbonate” is too broad.

Good signal: A controlled bill of materials names the grade and requires written approval before substitution.

Red flag: The supplier may replace film, coating, or texture as long as the polymer remains PC.

3.3 Select gauge from geometry and assembly behavior

initial reference construction—replace with JASPER's released bill of materials before publication: for a flat, smooth metal panel, start the RFQ with 10 mil (250 micrometres) LEXAN 8B35V, velvet on the viewing side and matte on the print side, reverse printed and laminated with 0.06 mm 3M 467MP. SABIC publishes a nominal-gauge limit of ±5% for 10–15 mil 8B35V. This is a supplier benchmark, not a JASPER stock or finished-label specification.

Good signal: Gauge follows a drawing input and is approved on the production-equivalent housing.

Red flag: A familiar gauge is reused because it worked on an unrelated enclosure.

3.4 Define the visible finish and any hardcoat

Finish controls glare, tactile feel, visible scuffing, window clarity, and cleanability. It must be a two-face callout: “velvet/matte” is more useful than “textured PC,” but the drawing must still identify which face the user sees and which face receives ink.

Tekra's LEXAN HP40S is one named hardcoated example; its published grade-specific properties cannot be generalized to uncoated PC.

Good signal: The approved sample includes production finish, print, adhesive, and cleaner exposure.

Red flag: “Scratch resistant” appears without a grade, method, load, cycles, or acceptance state.

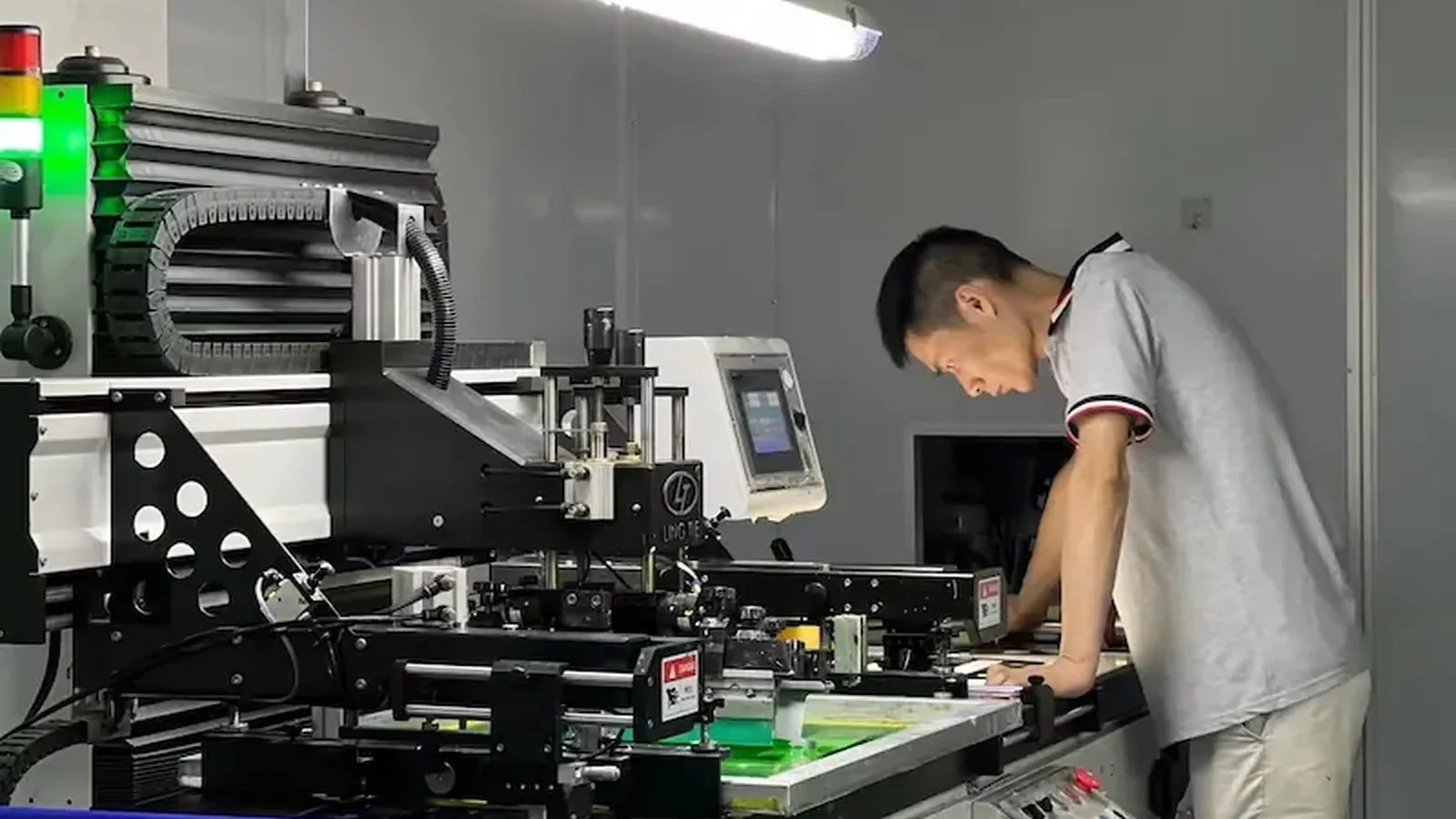

3.5 Control print side, ink system, cure, and opacity

Second-surface printing places the graphic behind clear film, but the print surface still needs compatible ink and cure. Tekra's JetView UV Velvet/Matte polycarbonate uses a coating on the matte side to improve UV-inkjet adhesion and lists 5, 7, 10, and 15 mil products. Its stated ASTM D3359 result applies to that supplier context, not every printer, ink, or cure.

Define color reference, viewing light, opaque white or blocker layers, translucent colors, print sequence, cure window, registration, and whether variable data are added later. Approve color on the final stack; a screen display or loose printed film is not the installed appearance.

Good signal: The process record ties film side, printer or screen process, ink series, cure, and approved color target together.

Red flag: “Reverse print, Pantone match” is the entire print specification.

3.6 Treat windows as optical zones

A clear window is a controlled optical stack, not simply an area with no ink. Specify its function—read a display, transmit indicator light, hide an inactive display, or provide a cosmetic lens—and define inspection in powered and unpowered states. Include adhesive presence or keep-out, air gaps, backing color, viewing angle, and surface finish.

ASTM D1003 can support haze and luminous-transmittance measurement; ASTM D2244 can support instrumented color-difference calculations. The test specimen must be the final printed and laminated stack, because bare-film values do not describe the assembly. JASPER's graphic-overlay display-window case study is related design context, not universal performance evidence.

Good signal: The drawing defines clear, translucent, dead-front, and opaque zones separately.

Red flag: A window is approved by shape and desktop appearance only.

3.7 Describe the enclosure surface, not just its resin

Adhesive selection starts at the housing. Record base material, paint or powder-coat chemistry, mold texture, roughness, flatness, curvature, release-agent risk, machining fluid, cleaning method, and assembly temperature. “ABS” or “aluminum” does not capture a painted, textured, or contaminated surface.

Use production housing coupons where possible. A polished laboratory panel can compare adhesive lots, but it cannot represent every enclosure finish.

Good signal: The RFQ includes a representative coupon or controlled surface specification and a cleaning process.

Red flag: Adhesive is selected from the label face material while the mounting surface is not yet defined.

3.8 Match adhesive family and thickness to that surface

Adhesive names are candidate boundaries, not automatic approvals. 3M's current 467MP technical sheet positions 200MP adhesive for metal and high-surface-energy plastics and lists a 0.06 mm construction. The 9472LE technical sheet positions 300LSE for many low-surface-energy plastics such as polypropylene and for powder-coated paints, with a 0.132 mm adhesive layer.

Published peel values must travel with backing, substrate, angle, rate, pressure, dwell, and temperature. They are not drawing limits by themselves.

For scale, 3M reports typical 90-degree peel after 72 hours at 23°C of 10 N/cm on stainless steel, 7 N/cm on aluminum, and 7.8 N/cm on polycarbonate for 467MP under its stated ASTM D3330 construction. For 9472LE, the corresponding published values are 14.0 N/cm on ABS, 14.9 N/cm on polypropylene, and 15.3 N/cm on stainless steel. These values compare supplier test conditions; they are not JASPER results or automatic acceptance limits.

The planned materials and adhesives capability page is the future internal handoff for substrate and adhesive review. The project drawing still has to name the actual surface and qualification method.

Good signal: Adhesive choice is tied to a named housing surface and qualification report.

Red flag: “3M adhesive” is treated as a complete specification.

3.9 Design converted geometry and installation together

Corners, narrow webs, windows, holes, vents, adhesive keep-outs, and liner splits change the stress field. Sharp external corners concentrate peel; a cutout close to an edge leaves little bonded area; trapped air or an enclosure vent can create bubbles. The drawing should define outline tolerances, registration datums, minimum webs, corner geometry, adhesive openings, and liner orientation.

Installation is also a process: surface cleaning, dry time, part alignment, application pressure, temperature, dwell before handling, and rework rules. A strong adhesive installed over residue or stretched around a curve can still lift.

Good signal: Production trials use the final die cut, liner, fixture, operator method, and housing.

Red flag: A flat hand-cut sample approves a production part with windows, narrow webs, and compound handling.

3.10 Define validation and compliance before requesting samples

Validation must name the failure mode, exposure, specimen, method, acceptance limit, and record. Standards can structure the method; they do not choose a passing result for the OEM.

If required markings fall under a certified product program, treat the label as a system. UL's Marking and Labeling Systems Program distinguishes finished labels, printing materials, label materials, and in-mold labels under separate category codes. A film grade, adhesive listing, or UL 94 flammability value does not by itself make a printed label Recognized to UL 969.

Good signal: The drawing identifies applicable end-product requirements and the exact recognized construction or project test plan.

Red flag: “UL material” is used as a substitute for the finished-label Conditions of Acceptability.

4. Build a validation matrix around actual failure modes

A validation matrix is useful only when it reproduces the intended stack and declares what counts as failure. Run tests on labels made with the proposed film, coating, ink, cure, adhesive, die-cut geometry, and representative housing—not on isolated raw materials alone.

Initial project qualification targets

The following values define a demanding first-screen qualification matrix. Release values must match the selected construction, use environment, equipment, specimen state, and measurement capability.

Do not translate chamber hours directly into field years. ASTM G154 controls apparatus conditions and does not by itself produce a specific result; ISO 4892-3 likewise defines laboratory exposure rather than a universal service-life conversion. The project must set its own correlation and acceptance boundary.

5. Run a six-step buyer process

This process turns the ten criteria into a release trail that engineering, quality, purchasing, and the converter can audit.

Step 1 — Freeze use conditions and product boundary

List indoor/outdoor location, temperature and humidity states, sunlight, cleaners, oils, fuels or coolants, abrasion contact, expected handling, housing material, curvature, and marking obligations. State whether the part is a static label or an active overlay. Resolve that boundary before comparing film grades.

Step 2 — Define the candidate stack

Select named film candidates, surface pair, initial gauge, visible coating, print side, ink process, opacity layers, adhesive family, and housing surface. Do not turn a supplier's typical value into an OEM limit.

Step 3 — Release controlled artwork and drawing inputs

Provide vector artwork, color references, viewing states, window definitions, cut geometry, datums, tolerances, adhesive keep-outs, liner requirements, serialization rules, and substitution control. JASPER's graphic overlay printing capability page can frame a process discussion; the project drawing still controls the actual construction.

Step 4 — Build construction-identical samples

Samples must use the intended grade, finish, print process, ink/cure, adhesive, die cut, liner, and representative housing. Record deviations. A visually similar prototype printed by a different process can answer layout questions, but it cannot close production durability.

Step 5 — Test against declared failure modes

Execute the approved matrix and retain raw results, specimen identity, photos, and deviations. The testing and validation planning discussion is a useful internal route, but the OEM must define project-specific conditions and acceptance limits.

Step 6 — Approve, release, and control change

Tie the approved sample and report to the drawing revision and bill of materials. Define incoming or in-process checks, lot traceability, retention samples, and notification requirements for film, coating, ink, cure, adhesive, liner, tooling, or process changes.

6. Use drawing and sample-approval checklists

A usable RFQ packet lets the converter identify conflicts before tooling or production. The following fields belong in the controlled record, even when the first issue marks some of them “supplier to propose.”

Drawing checklist

Sample-approval checklist

• Confirm the sample's film, coating, ink, cure, adhesive, and liner against the proposed bill of materials.
• Apply it to production-equivalent housings with the intended cleaning, fixture, pressure, and dwell.
• Inspect color, finish, registration, cut quality, edge wet-out, bubbles, wrinkles, and window appearance in declared viewing states.
• Run the approved chemical, bond, print-adhesion, optical, and environmental checks.
• Record failure mode, not merely “pass” or “fail.”
• Sign the sample and report against the same drawing revision that purchasing will release.

Eight red flags that stop purchase release

• The film is only “polycarbonate.” Grade, surfaces, gauge, and coating can change without detection.
• Outdoor or chemical life is quoted without a protocol. A duration without lamp, fluid, temperature, specimen, and acceptance state is not transferable evidence.
• Adhesive is selected before the housing is known. Surface energy, coating, texture, curve, and contamination drive the bond.
• A datasheet peel value becomes a drawing limit. The published backing, surface, dwell, angle, rate, and temperature do not match automatically.
• A window is specified only as “clear.” Haze, color, glare, stack state, and powered appearance remain uncontrolled.
• Substitution is unrestricted. Film, hardcoat, ink, adhesive, or cure changes can invalidate the approved sample.
• UL 969 is treated as a raw-material property. Recognition depends on the evaluated system and applicable conditions.
• A flexing key zone is purchased as a static label. The dominant mechanical requirement has been assigned to the wrong product scope.

8. Frequently asked questions

What is polycarbonate label material?

Polycarbonate label material is a PC film used as the face of a printed and usually adhesive-backed label or nameplate. A complete specification identifies the grade, both surfaces, gauge, print construction, adhesive, housing, exposures, and acceptance criteria; the polymer name alone is incomplete.

Is LEXAN the same as every polycarbonate label film?

No. LEXAN is a trade name used for specific polycarbonate film families. Those families include different textures, coatings, colors, gauges, print surfaces, and functional grades. A drawing should name the exact grade or define a controlled equivalence process instead of using “LEXAN” as a universal specification.

What thickness should polycarbonate equipment labels use?

There is no universal best thickness. This guide uses 10 mil (250 micrometres) LEXAN 8B35V as one mid-to-upper supplier reference for a flat equipment label, with ±5% published nominal-gauge limits for 10–15 mil 8B35V. Curvature, stiffness, cut geometry, windows, installation, and the released grade must still determine the production gauge.

Should a printed polycarbonate nameplate be reverse printed?

Reverse or second-surface printing is common when clear film should shield graphics from direct contact. It is not mandatory for every construction: some hardcoated films permit defined first-surface printing, and digital processes may require a particular coated side. The drawing must identify film side, ink, cure, and visible face.

Which adhesive works for a polycarbonate nameplate?

Choose adhesive from the mounting surface and environment, not from the PC face alone. A 200MP-type acrylic is a candidate for metal and high-surface-energy plastics; a 300LSE-type system is a candidate for many low-surface-energy plastics and powder coats. Test the exact housing, preparation, pressure, and dwell.

Can polycarbonate equipment labels be used outdoors?

Yes, when the named film, coating, ink, adhesive, and housing interface are intended and validated for the declared outdoor exposure. Generic polycarbonate is not an outdoor-life claim. Define the laboratory exposure, post-test checks, control sample, and correlation instead of converting chamber hours directly into field years.

When is polycarbonate not the best durable control label material?

Polycarbonate is a poor starting choice when repeated flexing dominates, a tight curve stores peel stress, required fluids attack the chosen grade, or a rigid mechanically fixed plate better fits the environment. Reopen the material family or product architecture instead of adding an adhesive to an unsuitable face construction.

Does polycarbonate film make a finished label UL 969 compliant?

No. UL 969 evaluates a marking-and-labeling system under defined Conditions of Acceptability. Film, ink, overlaminate, adhesive, printing, surface, temperature, exposure, color, and construction can all matter. Verify the applicable finished system or adoption path; do not infer Recognition from a film logo or UL 94 value.

9. Specify the material and adhesive before requesting review

Release the inquiry with the use conditions, named film requirement or performance boundary, visible finish, print side, window states, actual housing surface, adhesive need, geometry, installation method, validation matrix, and change-control expectation through JASPER's request-a-quote page.
