Hydrogel vs Dry Electrode Adhesive: Choosing the Skin Interface for Electrode Patches

1. Quick Verdict: Which Interface Fits Which Job?

A medical electrode hydrogel and a dry conductive adhesive solve the same boundary problem differently. Hydrogel supplies a water-rich electrolyte path. A dry interface must create enough real contact area and mechanical tracking without that hydrated reservoir.

For TENS, EMS, and NMES electrode pads, current distribution and edge behavior can matter as much as bulk conductivity. For ECG/EKG electrode patches, source impedance, DC offset, lead-off detection, motion artifact, and recording duration may dominate. A construction selected for one modality should not be carried into the other without a new test plan.

A hydrogel is not the best choice when water loss, gel migration, package cost, or open-package stability defeats the use model. A dry adhesive is not the best choice when its actual contact area or motion behavior cannot meet the instrument’s electrical budget. A hybrid often wins when coupling and fixation need different materials.

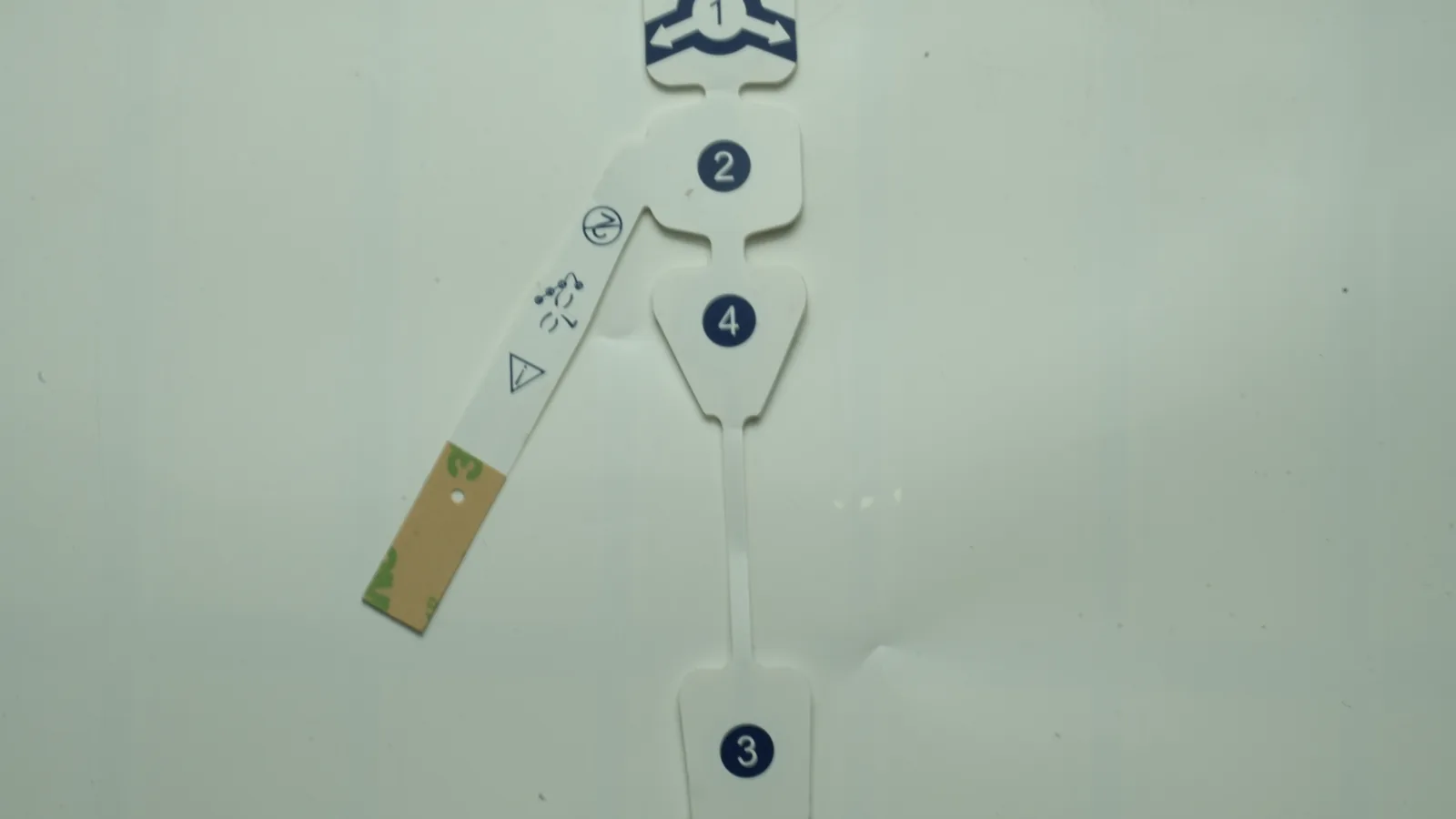

2. Start With the Skin Contact Electrode Interface, Not a Material Name

“Hydrogel electrode” and “dry electrode” describe families, not drawings. Before comparing them, separate the electrical path from the fixation path.

Conductive hydrogel stack

release liner
    ↓
conductive hydrogel: water + polymer network + electrolyte
    ↓
Ag/AgCl, carbon, or another electrode conductor
    ↓
printed trace / snap / wire / flex tail
    ↓
backing and optional perimeter fixation adhesive

The hydrogel may carry ionic current and tack to skin. A separate pressure-sensitive adhesive (PSA) can still be present around it. Axelgaard, for example, publishes different AmGel series for sensing, stimulation, iontophoresis, grounding, dermal fixation, and multi-use applications; that catalog alone shows why “hydrogel” is too broad for a drawing note (Axelgaard).

Dry conductive adhesive stack

release liner
    ↓
hydrogel-free conductive adhesive or self-adhesive conductive film
    ↓
printed or laminated conductor
    ↓
trace / connector
    ↓
backing, strain relief, and edge seal as needed

This dry electrode patch adhesive must do two jobs at once: pass the required signal or current and stay coupled while skin stretches, sweats, and sheds sebum. Some constructions instead use a nonconductive skin PSA around a dry central contact. Those variants have different current paths and should not share one generic specification.

Hybrid stack

perimeter medical PSA  → fixation and edge control
conductive gel island  → electrical coupling
conductor              → ionic-to-electronic interface
backing / connector    → mechanical support and circuit connection

The hybrid separates functions. It adds die-cut registration, lamination, and liner complexity, but lets an engineer tune coupling without asking the hydrogel to carry the entire mechanical load.

3. Hydrogel vs Dry Electrode Adhesive: Side-by-Side Engineering Comparison

The table below compares mechanisms and design burdens, not brand-level performance. Exact outcomes depend on formulation, thickness, contact area, conductor, electronics, body site, application pressure, wear time, and test method.

Electrical coupling is construction-specific

A 2023 double-layer hydrogel study used KCl and PEDOT:PSS in a conductive layer. On model animal skin, that construction and a wet control measured below 0.4 kΩ under test voltages below 20 V, while the solid-pin dry control reached about 15 kΩ. Those figures are not universal material properties; they belong to that geometry, formulation, skin model, and method (Zhang et al., 2023).

Dry does not automatically mean high impedance. A 2020 research film blending PEDOT:PSS, waterborne polyurethane (WPU), and D-sorbitol produced lower RMS ECG noise than its commercial Ag/AgCl gel comparator in that study: about 25 µV versus 28 µV.

That result deserves a narrow reading.

It was a self-adhesive prototype tested under a specific protocol, not evidence that any dry PSA will outperform a commercial hydrogel (Zhang et al., 2020).

The useful lesson is narrow: interface conformity can matter more than the bulk conductivity number on a raw-material datasheet. Test the complete electrode with the intended front end or stimulation circuit.

Tack is not the same as secure wear

A high peel value may reduce edge lift and make removal harsher. A low value may improve removal and allow micro-motion that corrupts a signal. Tack also changes with dwell, skin oil, sweat, hair, backing stiffness, adhesive thickness, and removal angle.

The 2020 PWS research film measured 0.43 N/cm peel adhesion on dry skin and 0.56 N/cm on experimentally wetted skin; its unstretched film was 20 µm thick. These are useful method-linked planning anchors, not a JASPER specification or a universal target (Nature Communications study, 2020). An OEM still needs a peel method built around the intended body site and exposure.

Storage is a system property

Hydrogel contains mobile water. In the 2023 Zhang et al. Study, a glycerol-containing formulation retained more than half its water after 3 days of air exposure, while its no-glycerol counterpart shrank to about 25% of original mass (Microsystems & Nanoengineering study, 2023). The result demonstrates formulation sensitivity; it does not define a commercial product’s shelf life.

Its hydrogel-free Omni-Wave material has a two-year electrical shelf life and does not require barrier packaging. The same product information specifies it is supplied in roll form for conversion and places fitness, testing, compliance, and finished-device clearance on the customer (FLEXcon). Treat the two-year figure as one named supplier’s claim—not a category average.

4. Where a Medical Electrode Hydrogel Wins

4.1 A built-in ionic bridge

A conductive hydrogel gives Ag/AgCl and related electrodes a hydrated electrolyte path at the skin. That is a direct engineering advantage when the measurement chain expects low and stable electrode-skin impedance. It can also reduce sensitivity to small air gaps by flowing or conforming into skin texture under application pressure.

The construction still needs limits. Electrolyte concentration influences conductivity and electrochemistry; polymer crosslink density changes modulus and water retention; thickness changes volume, handling, and current path. A sourcing document that says only “medical electrode hydrogel” has not specified a functional interface.

4.2 Contour filling without rigid contact pressure

Soft hydrogel can fit wrinkles and shallow topography without pins, springs, or a tight strap. This matters on flat or gently curved intact skin where a patch must remain thin. It may also help distribute stimulation current when the electrode geometry and conductor pattern are designed together.

Hydrogel loses this advantage when it cold-flows outside the window, bridges isolated areas, or transfers to skin or liner. Qualify gel dimensions after die cutting and storage—not only at incoming inspection.

4.3 A mature supply format for several electrode modalities

Hydrogel suppliers publish roll-stock families for sensing, stimulation, grounding, fixation, and related uses. Axelgaard identifies AG500, AG600, AG700, AG800, AG900, and AG2500 series for different functions and lists a minimum slit capability of 0.75 inch (2 cm) for its operation (Axelgaard Product Lines). That number is supplier-specific, but it exposes a practical point: roll width, slit tolerance, splice rules, and liner format belong in material selection from the first drawing review.

Hydrogel is not the best choice merely because an existing electrode uses it. If the business model requires repeated opening, long storage outside a barrier pouch, or residue-free removal under a particular protocol, a hydrogel-free option deserves a controlled comparison.

5. Where a Dry Electrode Patch Adhesive Wins

5.1 No hydrated reservoir to protect

A dry interface removes water loss and gel squeeze-out from the failure tree. That can simplify package design and reduce dependence on moisture-barrier performance.

It does not remove aging.

Conductive fillers, polymer modulus, tack, liner release, oxidation, contamination, and connector resistance can still drift. A dry adhesive is therefore a candidate for simpler storage, not a license to skip package validation. FLEXcon’s published 2-year electrical shelf-life statement applies to Omni-Wave under its own conditions (FLEXcon Omni-Wave). Every converted patch needs its own aging protocol and package configuration.

5.2 Cleaner conversion can be possible

Hydrogel-free roll stock can avoid wet or soft gel transfer during slitting, kiss cutting, matrix stripping, and lamination. A stable dry web may support tighter registration and less tool cleaning. “Can” matters: soft conductive adhesives may stretch under tension, build on dies, block in a roll, or show unstable liner release.

The converter should request the exact liner, adhesive thickness, carrier or unsupported-web form, roll width, unwind orientation, splice specification, and storage conditions. Changing a liner can change release force and assembly yield without changing the adhesive trade name.

5.3 Dry interfaces can be engineered for conformity

Rigid dry metal contacts often struggle with motion because true contact area is small. That limitation should not be assigned to every dry patch. The 2020 PWS study showed that a soft, self-adhesive dry film could follow dry, wet, wrinkled, and stretched surfaces in its experimental setup. It also linked motion artifact to adhesion and conformity.

That prototype does not settle a commercial material choice. It sets a better RFQ question: what evidence shows the proposed dry interface maintains electrical and mechanical contact under the project’s strain, sweat, and motion profile?

A dry adhesive is not the best choice if the electronics cannot tolerate its source impedance, if contact stabilization takes too long, or if sweat/sebum changes the interface beyond the signal-processing budget.

6. Failure Chains: Trace the Field Symptom Back to the Stack

A useful comparison connects material behavior to the symptom an engineer will actually see.

Hydrogel failure chain

package leak / long open time / unsuitable formulation
    → water content changes
    → modulus, tack, electrolyte concentration, or geometry shifts
    → contact impedance / half-cell behavior / edge condition changes
    → baseline drift, lead-off alarms, hot spots, residue, or early lift

The chain can start elsewhere. A stiff backing can pull a sound hydrogel away from a joint. A small conductive area can concentrate stimulation current. A low-release liner can distort the gel during application. Root-cause work should inspect the entire patch and application sequence.

Dry adhesive failure chain

insufficient wet-out / contamination / modulus mismatch
    → reduced real contact area or local slip
    → impedance imbalance and triboelectric or motion artifact
    → noisy recording, unstable lead-off detection, or uneven stimulation

Increasing tack may suppress slip and create a new problem at removal. Adding conductive filler may lower bulk resistance and stiffen the adhesive, which can reduce conformity. Optimizing one coupon metric without a system test moves the failure rather than removing it.

Hybrid escape route

conductive hydrogel island sized for electrical coupling
    + separate perimeter PSA sized for fixation
    + backing selected for strain distribution
    = independent control of conduction, edge lift, and removal

The hybrid is not free. It adds two interfaces, alignment tolerances, possible adhesive overlap, and a harder die-cut/lamination process. Choose it when independent tuning justifies that burden.

7. Decision Matrix: Which Construction Should the Project Prototype?

The matrix selects a prototype path, not a final material. Carry at least two constructions into feasibility when a field failure would force electronics, package, or regulatory rework.

8. Build the Validation Plan Around the Finished Electrode Patch

The U.S. Food and Drug Administration (FDA) guidance on ISO 10993-1 describes a risk-based biological evaluation for devices that contact the body and includes considerations for materials contacting intact skin. A supplier’s cytotoxicity, sensitization, or irritation report can support that evaluation. It cannot, by itself, establish the biological safety of a converted patch containing ink, conductor, backing, adhesive, liner-contact residues, processing aids, and package interactions (U.S. FDA ISO 10993-1 guidance, content current September 8, 2023).

Use testing and validation capabilities to turn the intended use into a method matrix. The product owner retains responsibility for the finished-device plan and regulatory submission.

For disposable ECG electrodes, AAMI/ANSI EC12 may make AC impedance, DC offset, bias-current tolerance, and defibrillation-overload recovery relevant. Other modalities invoke different requirements. Confirm the current edition and FDA-recognition status, then select standards from the finished device’s intended use—not from a material supplier’s brochure.

ISO 10993-5 addresses in-vitro cytotoxicity. Sensitization and irritation are separate endpoints in the ISO 10993 series. Passing one endpoint does not prove the others, and passing raw-material tests does not waive assessment of the finished patch.

9. Drawing and Sample-Approval Checklist

A useful RFQ defines conditions before asking for a material recommendation. Start with the electrode pad materials guide when the conductor, backing, or connector is still open.

Project inputs

• [ ] Modality: ECG, EKG, EMG, EEG, TENS, EMS, NMES, EDA, grounding, or another defined use
• [ ] Sensing or stimulation waveform, amplitude/current, duty cycle, and frequency band
• [ ] Electrode count, conductive area, overall geometry, spacing, and edge radius
• [ ] Body site, intact-skin status, hair, curvature, strain, and expected motion
• [ ] Wear duration, application pressure/dwell, replacement/reuse policy, and removal method
• [ ] Temperature, humidity, sweat, water, sebum, cleaning agent, and clothing/device pressure
• [ ] Intended population and any clinically relevant vulnerability addressed by the product risk process

Stack and converting drawing

• [ ] Exact conductor/ink, skin-contact material code, thickness, and lot traceability
• [ ] Hydrogel island or dry adhesive geometry, tolerances, and keep-out zones
• [ ] Separate fixation PSA, backing, reinforcement, connector, and strain relief
• [ ] Liner material, release side, split/tab geometry, unwind orientation, and application sequence
• [ ] Roll or sheet format, web direction, core, maximum roll diameter, splice rules, and packaging count
• [ ] Die-cut method, matrix stripping, gel/adhesive squeeze-out allowance, registration, cleanliness, and inspection plan

Sample approval

• [ ] Production-intent materials and liners—not hand-built substitutes
• [ ] At least one worst-case tolerance construction
• [ ] Electrical baseline and end-of-exposure results using the intended instrument
• [ ] Edge lift, residue, removal, and visual skin observations under the approved protocol
• [ ] Package/liner performance before and after aging
• [ ] Documented deviations, lot numbers, methods, conditions, and acceptance criteria

Do not approve a sample because it “sticks well” on a desk. Adhesion, coupling, removal, and aging need separate criteria.

10. Define Wear Time and Skin-Interface Scope Before Requesting a Construction

JASPER can be considered alongside specialized suppliers such as Axelgaard for hydrogel-based electrode components and FLEXcon for hydrogel-free conductive adhesive technology. The choice should follow evidence, not brand order.

Frequently Asked Questions

Is hydrogel always more conductive than a dry electrode adhesive?

No. Conductive hydrogel often creates a low-impedance ionic bridge, but measured performance belongs to a complete construction and method. A conformal self-adhesive dry research film has outperformed a gel comparator in one published ECG setup. Compare impedance, noise, motion, and aging with the intended electrode and electronics.

What is the main difference between a medical electrode hydrogel and a dry adhesive interface?

A medical electrode hydrogel contains a hydrated polymer/electrolyte phase that conducts ions between skin and the electrode. A dry interface works without that water-rich gel, using a conductive adhesive, conductive film, or a dry contact plus separate fixation. The stack determines the real electrical path.

Does a dry electrode patch adhesive eliminate skin residue?

Not automatically. It removes the gel-transfer mechanism, but a dry PSA can still leave adhesive residue, collect skin oil, or remove corneocytes. Residue must be graded after the specified wear and removal protocol, with the exact backing, liner, body site, and environmental exposure.

Which interface is better for long wear?

Neither wins from duration alone. Hydrogel can maintain ionic coupling but may lose water or migrate; a dry adhesive avoids gel dehydration but may lift, contaminate, or develop motion artifact. Multi-day projects should compare complete hydrogel, dry, and sometimes hybrid patches under representative movement, sweat, aging, and removal conditions.

Can a supplier’s ISO 10993 report prove that the finished patch is biocompatible?

No. Supplier data can support a risk-based biological evaluation, but the finished patch includes other materials, processing residues, geometry, packaging, and an intended exposure. The device owner must evaluate the final construction under ISO 10993-1 and the regulatory requirements of each target market.

Does a dry interface remove the need for protective packaging?

No. A hydrogel-free interface may reduce moisture-barrier demands, but the finished patch still needs packaging validation for contamination, oxidation, liner release, mechanical damage, transport, and aging. A supplier’s shelf-life or "no barrier pouch" statement applies only to the named material and stated conditions.

When is a hybrid hydrogel-plus-PSA construction better?

A hybrid can be better when the hydrogel provides the required electrical coupling but should not carry the full fixation load. A separate perimeter PSA can control edge lift and removal. The tradeoff is more lamination, registration, overlap, liner, and tolerance work during converting.

What should an OEM send before requesting samples?

Send the modality, waveform or frequency band, conductive area, body site, intact-skin exposure, wear time, motion/sweat/water conditions, removal/reuse protocol, conductor and connector, package concept, and target markets. Include measurable electrical, adhesion, residue, aging, and biological-evaluation acceptance criteria where available.
