Backlit Graphic Overlay Design: Masking Bright Icons and a Dark Off-State

JASPER certifications: ISO 9001, ISO 13485, IATF 16949, and ISO 14001.

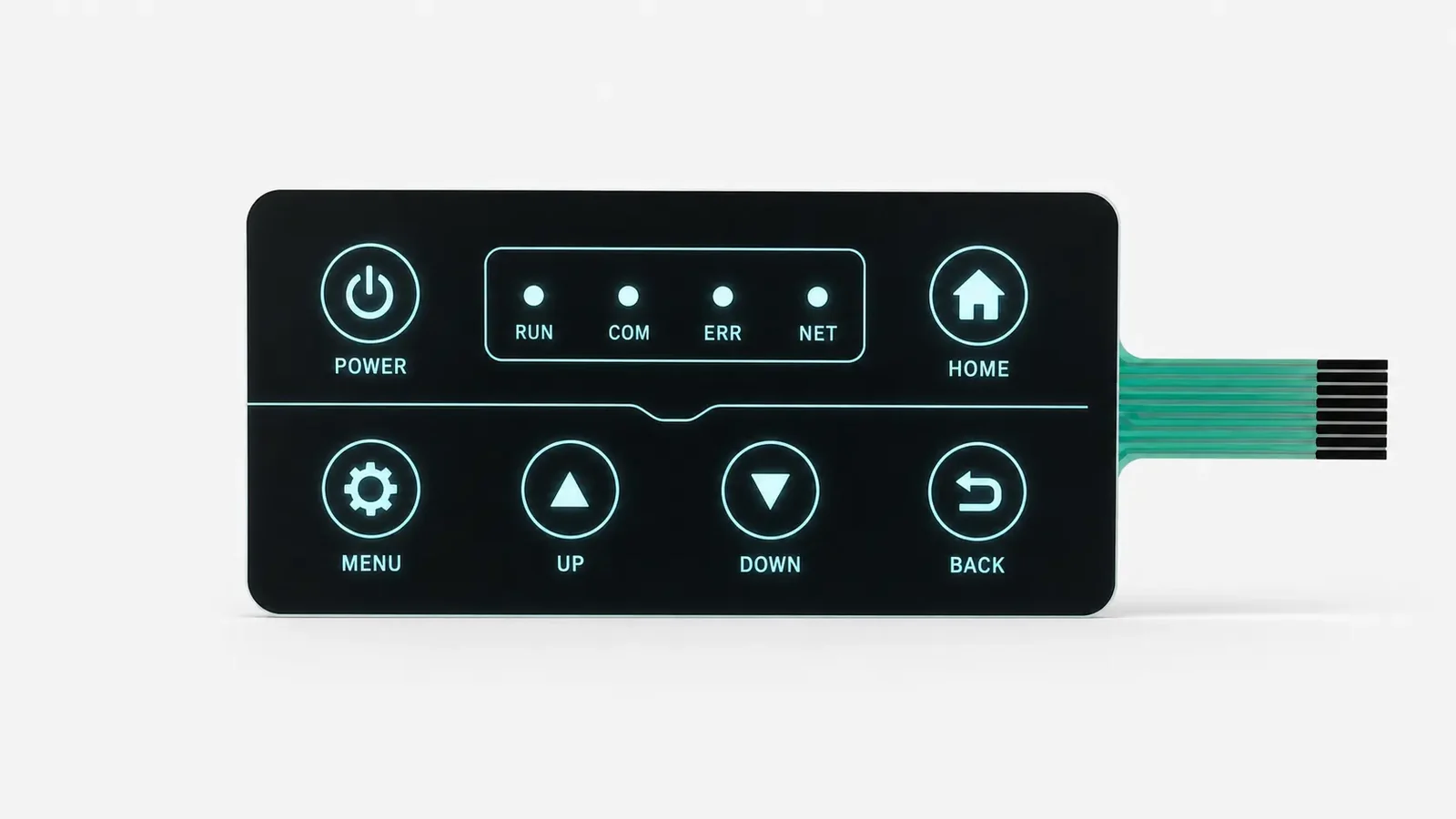

1. Bright When Lit, Quiet When Off: One Panel, Two Visual States

An illuminated control panel overlay can fail in opposite ways. Increase transmission and the icon gains luminance, yet the unlit artwork may turn gray or remain visible in daylight. Add more masking and the panel looks darker when off, yet the lit icon may become dim, mottled, or color-shifted. The useful design question is not “Which black ink is best?” It is “What source, optical stack, geometry, and viewing condition produce both approved states?”

Four terms need separate definitions:

• Light blocking suppresses illumination outside intended apertures. A barrier black or another opaque layer usually performs this job.
• Dead-front masking hides an icon or window under front illumination while allowing controlled light through when the source is energized.
• Diffusion redistributes incident light to reduce LED images, bright centers, and dark gaps. It normally sacrifices some transmitted intensity.
• Translucent color filters the source spectrum to create the lit hue. The same ink can look different when viewed as reflected object color and as transmitted light.

The conflict is physical. A white LED has a spectral power distribution, not a generic “white” value. Colored ink and substrate absorb different wavelengths from that spectrum. A diffuser changes angular distribution. A black mask can expose a fine halo if its aperture and the translucent color layer do not overlap after printing, cutting, adhesive lamination, and final assembly. CIE 127:2007 treats LED spectral power and measurement conditions as controlled variables; that is the right mindset even when a project uses a simpler production check.

A custom graphic overlay construction is therefore only one part of the optical system. The PCB, LEDs, light guide or cavity, reflector, adhesive, air gaps, bezel, and user viewing angle remain part of the result. A supplier can print exactly to artwork and still deliver a poor assembly if those upstream inputs were missing.

A typical 2026 program may involve polyethylene terephthalate (PET), polycarbonate (PC), a printed circuit board (PCB), light-emitting diodes (LEDs), pulse-width modulation (PWM), and computer-aided design (CAD). The interface also reaches industrial design, electrical engineering, quality engineering, and the finished human-machine interface (HMI). Naming each owner prevents separate teams from approving incompatible revisions.

When dead-front masking is not the best choice

Dead front icon masking is a poor fit when the symbol must remain continuously visible for safety, regulation, or basic operation; when direct sun creates more front-surface contrast than the available backlight can overcome; when the LED-to-overlay distance is too small to blend point sources; or when power budget cannot tolerate the transmission loss caused by diffusion and masking. A permanently printed legend, an open translucent window, a molded light pipe, a display, or a hybrid construction may then give a wider operating margin.

2. Build the Optical Stack by Function

The stack should be read from the user toward the source. Exact print order depends on substrate, ink chemistry, and whether decoration is second-surface printed, but the optical jobs remain recognizable.

USER / AMBIENT LIGHT
        ↓
[Texture or hard-coat surface]
[Clear polyester or polycarbonate substrate]
[Unlit face color / dead-front tint]
[Translucent icon color]
[Diffusion layer or separate diffuser film]
[Opaque light-blocking mask with registered apertures]
[Clear or selective adhesive]
[Air gap, spacer, light guide, reflector, or cavity]
[LEDs on production-intent PCB at defined drive and temperature]
        ↑
LIGHT SOURCE

Not every program needs every layer. Combining functions can reduce print stations and interfaces, but it also couples variables. If one gray layer must set off-state darkness, lit transmission, and color, changing it to fix one state will disturb the other two.

Ink-supplier nomenclature shows why each function should be specified rather than assumed. Nazdar Ink Technologies’ 4000 UV/LED series names 4099 Barrier Black as the series’ highest-opacity black, while the 3400 UV series lists 3477 Super Opaque Black and 34PB24 Deadfront Black for membrane-overlay printing. The Nazdar 8800 Color Vue range separately describes transparent backlit colors and high-opacity colors. These are distinct functions, not a transferable recipe for polycarbonate or polyester film, pressure-sensitive adhesive, screen mesh, cured deposit, or LED geometry.

Diffusion has the same dependency. The 3M 3635/3735 product bulletin offers different light-transmission classes to redistribute brightness and conceal individual sources. A lower-transmission diffuser can improve uniformity while reducing output. ASTM D1003-21 provides methods for haze and luminous transmittance of essentially transparent plastics, but haze alone does not predict icon uniformity in a specific LED cavity. ASTM International also distinguishes materials above 30% haze as diffusing and points to ASTM E2387, reinforcing the need to match the method to the specimen.

3. Ten Decisions That Control Backlit Graphic Overlay Design

The following ten decisions move from user-visible requirements toward production release. Each criterion has a good signal and a red flag because attractive prototype photographs are not enough. The goal is a reproducible boundary: source definition, stack construction, registered artwork, and agreed test conditions.

3.1 Define the lit and unlit targets before artwork

Write two appearance requirements, not one adjective. The unlit target should identify which graphics remain visible, which are hidden, the panel-plane illuminance, the viewing cone, the observer distance, and any allowable ghost image. The lit target should identify active icon combinations, minimum readability, uniformity, hue, leakage zones, and low/nominal/high drive states. Include a rendering to communicate intent, but do not make it the acceptance master.

Good signal: The specification includes a lit-state image and an unlit-state image, identifies safety-critical legends, and assigns measurable or sample-based acceptance conditions to each state.
Red flag: The only requirement is “piano black when off and bright white when on,” with no ambient, source, angle, or boundary sample.

3.2 Freeze the real light source and electrical states

The overlay cannot be tuned independently of the source. Supply the LED Manufacturer and Part Number, Chromaticity Bin or Color Target, Printed Circuit Board coordinates, Optical Axis, nominal current, Pulse-Width Modulation strategy, High/Low Drive States, Cavity Depth, Reflector Color, and expected Thermal Condition. If a Light Guide is present, release its Material, Surface Features, and Interface Geometry at the same revision. Substitution after Color Approval can invalidate the sample even when the replacement Light-Emitting Diode has the same nominal Correlated Color Temperature.

CIE 127:2007 covers LED Intensity, Luminous Flux, Spectral Power Distribution, and Measurement Conditions. The practical lesson is simple. Lock the Light Source. Lock its operating state whenever the Graphic Overlay is compared.

Good signal: Production-intent PCB assemblies accompany the overlay trial, and electrical test points or firmware states reproduce the nominated current/PWM settings.
Red flag: A phone flashlight, bench lamp, or unbinned “white LED” is used to approve transmitted color.

3.3 Give each printed or laminated layer one primary optical job

A stable design separates Face Color, Translucent Icon Color, Diffusion, Light Blocking, and Dead-Front Tint on the Drawing, even if Process Development later combines 2 functions. This makes Change Control intelligible. If the Icon is too blue, the Engineering Team knows whether to adjust LED Spectrum, Transmitted Color, or another Optical Filter. If the Off-State Icon is too visible, the Dead-Front Layer can be studied without quietly narrowing the Light-Block Aperture.

Nazdar 3400, Nazdar 4000, and Nazdar 8800 Technical Data Sheets show separate categories for Super Opaque Black, Barrier Black, Dead Front Black, and Transparent Backlit Color. The correct Screen Printing Ink family still depends on Substrate Pretreatment, Intercoat Adhesion, Ultraviolet Cure, Forming, Pressure-Sensitive Adhesive, and the supplier’s qualified Production Process.

Good signal: The artwork legend names every optical layer and gives it one primary function plus a controlled overlap rule.
Red flag: “Print black behind panel” is the complete masking instruction.

3.4 Design diffusion around LED pitch, standoff, and cavity reflectance

A diffuser cannot erase arbitrary geometry. As LED pitch grows or source-to-overlay standoff shrinks, each point source becomes harder to blend. Reflective cavity walls can recover light but may create edge brightening. Dark PCB solder mask can absorb stray light; a glossy white cavity can return it at unexpected angles. Icon width and stroke also matter because a narrow legend samples less of the blended field than a broad window.

Start with ray geometry or optical simulation when the assembly justifies it, then verify with hardware. The 3M 3735 diffuser documentation describes brightness-distribution control and concealment of individual LEDs, but its signage-specific films are design references rather than automatic HMI material selections.

Good signal: The optical trial varies diffuser class or printed diffusion deposit while holding LED board, cavity, standoff, and camera exposure constant.
Red flag: A high-haze film is selected from one datasheet number and the source geometry is omitted from the drawing package.

3.5 Separate reflected object color from emitted-light color

The Off-State Face is an Object Color seen by reflected Ambient Light. The Energized Icon behaves closer to a Self-Luminous Area. Those states need different Measurement Language. ISO/CIE 11664-4:2019 defines the CIE 1976 Lab* Object-Color Space . The complete method is generally unsuitable for areas perceived as Primary Light Emitters. CIE TN 001:2014 instead recommends distance in the CIE 1976 u′,v′ Chromaticity Diagram for differences between Light Sources.

For a Lit Icon, record the LED Drive, Ambient Illuminance, Measurement Aperture, Viewing Angle, Distance, Warm-Up Time, and Instrument Model. For the Off State, record Illumination Spectrum, Illuminance, Geometry, Backing, and Surface Texture. A single Delta E value cannot approve both states.

Good signal: The control plan has one reflected-color method for the unlit face and one luminance/chromaticity method for energized icons.
Red flag: Lit color is matched to an on-screen RGB value or a Pantone chip held beside an operating panel.

3.6 Specify a light blocking ink graphic overlay by leakage result

The proper blocker deposit is a process outcome, not a universal number of print passes. Opacity changes with pigment, mesh, emulsion, squeegee, cured film thickness, pinholes, intercoat cure, and LED irradiance. Nazdar identifies 4099 Barrier Black as the highest-opacity black in its 4000 series, but that statement does not establish how many deposits another process needs or what leakage an assembled HMI will show.

Define keep-dark zones, maximum source drive for inspection, ambient level, observer geometry, and whether instrumental luminance or an approved visual boundary governs. Inspect broad fields, icon perimeters, cut edges, registration fiducials, and locations over individual LEDs.

Good signal: The supplier submits a leakage map from production-intent material and drive conditions, with the print construction recorded.
Red flag: The drawing says “two passes black” because a previous unrelated product used two passes.

3.7 Allocate registration across print, cut, lamination, and assembly

A Halo is often a Tolerance Stack-Up failure rather than an Opacity failure. The Translucent Color Aperture, Diffuser Opening, Barrier Mask, Die Cut, Adhesive Window, Light-Guide Feature, and Light-Emitting Diode can all shift in different directions. Artwork should use deliberate Choke and Spread so permitted movement does not expose a Bright Seam or clip the Icon Stroke.

A initial engineering starting point is ±0.20 mm for Print-to-Cut Registration and ±0.30 mm for Overlay-to-Light-Guide or Assembly Datum. These are not claimed JASPER capabilities and are not universal. Replace them with documented Process Capability, Feature Size, Datum Transfer, and Risk before release. For 1 mm icons or narrow strokes, even those starting values may be unusable.

Good signal: A tolerance analysis shows worst-case overlap at each icon edge and identifies the physical datum used at printing, cutting, and assembly.
Red flag: Nominal aperture and icon boundaries are coincident in CAD, leaving zero masking reserve.

3.8 Qualify the complete material–ink–adhesive process

Second-Surface Printing protects Decoration behind the Face Film, but it does not remove Process Interactions. Polyethylene Terephthalate and Polycarbonate differ in Forming Behavior, Stress Response, and available Surface Treatments. Screen Printing Ink layers must survive Ultraviolet Cure, subsequent Colors, Adhesive Lamination, Die Cutting, Embossing or Thermoforming where used, and Conditioning appropriate to the Product Environment. Clear Pressure-Sensitive Adhesive can alter Optical Coupling. A Selective Adhesive opening can create a visible Boundary.

ASTM D1003-21 may help characterize Haze and Luminous Transmittance of a Film or Stack within its scope. It does not validate Adhesion, Chemical Resistance, Forming Durability, Ingress Protection, or the finished Human-Machine Interface. Those checks require separate Test Methods tied to the actual OEM program.

Good signal: Samples use the nominated substrate lot family, ink system, print order, cure, adhesive, forming sequence, and production-equivalent equipment.
Red flag: A hand-printed clear film is approved before the adhesive, embossing, bezel, or final source enters the build.

3.9 Control the viewing room, observer geometry, and electrical drive

“Looks uniform” is meaningful only when the conditions repeat. Human adaptation changes after moving between a bright office and a dark room. Camera auto exposure can hide leakage or exaggerate hotspots. PWM can interact with camera shutters. A warm LED board may shift output from its cold-start state. Gloss and texture change with viewing angle.

Use at least two controlled conditions. A initial starting matrix is 1,000 lx at the panel plane for unlit bright-room review, and 100 lx for energized review at nominal plus low/high drive. Review within a defined 45° cone. These values are initial evaluation conditions, not JASPER test claims; the OEM must replace them with actual use conditions.

Good signal: Every image and measurement carries sample ID, ambient, drive state, temperature state, angle, distance, and exposure policy.
Red flag: Reviewers compare one sample in a conference room with another sample photographed in a dark booth.

3.10 Release golden and boundary samples, not a single beauty sample

A signed golden sample communicates the center of the acceptable appearance, but production also needs boundaries. Retain a high/low set that represents acceptable luminance, uniformity, hue, leakage, and off-state visibility. Tie each piece to artwork revision, material construction, ink batch or controlled formulation, process route, source board, and measurement record. Store and recheck the master under conditions that prevent fading, contamination, and undocumented source substitution.

For first optical builds, a initial uniformity target may use minimum/maximum luminance ≥0.75 within one icon and ≥0.70 across an approved icon group. These are starting values only. Icon function, viewing distance, metrology repeatability, source count, and cost may justify stricter or looser limits.

Good signal: Approval includes a signed master, acceptable high/low boundaries, raw measurements, and a revalidation trigger list.
Red flag: The only release artifact is a retouched JPEG with automatic white balance.

4. Diagnose the Failure Chain Before Changing Ink

A visible defect can originate several layers away from where it appears. Change one variable at a time and keep source drive, sample position, instrument geometry, and exposure fixed. Otherwise a darker mask may appear to solve a halo while merely hiding an alignment error and sacrificing icon output.

When color is the concern, CIE TN 001:2014 defines chromaticity difference as distance in the CIE 1976 u′,v′ diagram:

[ \Delta u'v' = \sqrt{(u'_2-u'_1)^2 + (v'_2-v'_1)^2} ]

That equation supplies a comparison method, not a universal pass limit. The program owner should set the allowed difference after evaluating an approved source/overlay master and the repeatability of the chosen instrument.

For integrated lighting, the source and overlay should be reviewed together with the backlit membrane switch integration, even when separate companies supply the PCB, light guide, switch circuit, and graphic layer.

5. Six Steps from Appearance Target to Production Approval

Step 1 — Issue a two-state appearance brief

Provide vector artwork, lit/unlit renderings, status logic, safety-critical information, target ambient ranges, viewing distance, viewing cone, source details, panel geometry, and surface finish. Mark which properties are numerical requirements and which require a signed boundary sample. Identify source and overlay design owners so color, geometry, and firmware changes cannot occur independently.

Step 2 — Release an optical-interface drawing

The drawing should identify substrate, nominal thickness, surface texture, print side, layer names, translucent apertures, blocking mask, dead-front areas, diffuser, adhesive windows, datums, cutouts, embossing, source-to-overlay distance, light-guide interfaces, and inspection zones. Add choke/spread values and tolerance ownership rather than letting each vendor infer an overlap.

Step 3 — Make a screening coupon before a full decorated panel

A useful coupon contains several tint densities, translucent-color deposits, barrier constructions, diffuser options, icon stroke widths, and registration targets. Print it with the nominated substrate and process. Evaluate it on a production-intent LED fixture. This isolates optical variables faster than revising a complete graphic every round, but the selected construction still needs full-panel confirmation.

Step 4 — Build an integrated engineering sample

Assemble the chosen overlay with production-intent adhesive, bezel, cavity, light guide, PCB, LED bin, firmware states, and power conditions. Inspect one-channel activation, all-icons-on worst case, low/nominal/high drive, cold and stabilized conditions where relevant, and mechanical alignment. Record every sample and component revision.

Step 5 — Run the lit/unlit approval matrix

The matrix should reproduce the intended use, not just the easiest inspection booth.

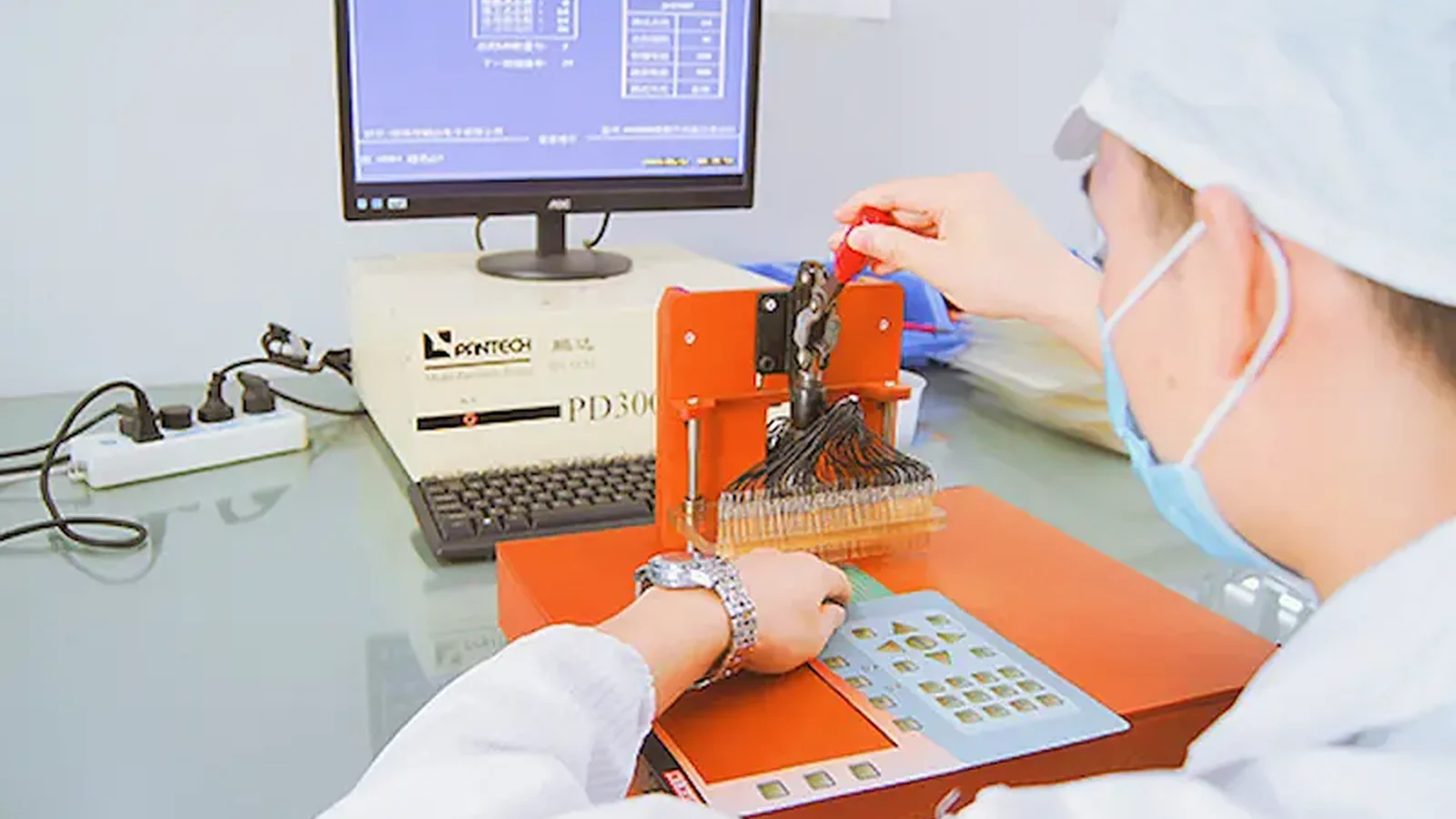

Every value in the “initial condition” column must be confirmed for the actual equipment. A quality and optical testing plan should state instrument ID, calibration status, fixture, source board, software state, ambient, angle, and sample conditioning.

Step 6 — Release production boundaries and change triggers

Approve artwork and process construction together. Define which changes require optical revalidation: substrate grade or texture, ink series or formulation, mesh/deposit, cure, diffuser, adhesive, cavity finish, LED manufacturer/part/bin, current/PWM, PCB coordinates, light guide, bezel, or source-to-overlay distance. A supplier process change can be optically significant even when the mechanical drawing remains unchanged.

6. Initial Specification Register

This register keeps planning numbers visible without presenting them as achieved performance. Each value is a mid-to-upper-range starting point for a first optical build; the responsible engineer must replace or formally approve it against the production-intent stack.

7. Red Flags That Should Stop Release

• The LED source is “TBD.” Transmitted color and uniformity cannot be finalized against an undefined spectrum and geometry.
• Only a PDF rendering is offered for approval. A display cannot reproduce the optical stack, ambient reflection, or source spectrum.
• The mask instruction is a pass count with no leakage condition. Deposit depends on the qualified print process.
• Nominal apertures have no tolerance overlap. Halos and clipped strokes will emerge as print, cut, and assembly move.
• A diffuser is selected by haze alone. The LED pitch, standoff, cavity, and transmission loss remain untested.
• Photos use automatic exposure or white balance. Samples cannot be compared reliably.
• The sample omits adhesive, bezel, or light guide. Those interfaces can change reflection, coupling, and edge glow.
• A certification or customer approval is treated as project evidence. Neither predicts this stack’s optical result.

8. Drawing and Sample Approval Checklist

Use this list before requesting production pricing or first articles. It also prevents the overlay drawing from becoming the accidental owner of electrical and optical assumptions.

A related membrane switch design guide can cover circuit, spacer, dome, tail, and connector inputs that sit outside this article’s optical focus. Teams designing operator equipment may also map the viewing and ambient assumptions to the intended industrial control-panel application.

9. Frequently Asked Questions

What is the difference between light blocking and dead front icon masking?

Light blocking keeps unwanted illumination out of nominally dark regions; dead front icon masking hides a graphic under specified front-lighting conditions but lets it appear when energized. One opaque barrier layer may serve the first job, while a controlled-transmission tint serves the second. Their apertures and overlaps must be designed together.

How many passes of black ink does a backlit graphic overlay need?

There is no universal pass count. Opacity depends on ink formulation, mesh, emulsion, cured deposit, print sequence, pinholes, substrate, and source intensity. Specify maximum acceptable leakage on the complete stack, then let the qualified process establish and control the necessary deposit.

Why do LED hot spots remain after adding a diffuser?

Hot spots remain when source pitch, source-to-overlay distance, cavity reflectance, icon size, and diffuser angular performance do not provide enough mixing. A higher-haze or lower-transmission layer may improve blending but reduce luminance. Test diffuser and geometry together on the production-intent source board.

How should lit icon color be specified?

Specify the LED part or spectral target, drive and thermal state, ambient, aperture, angle, distance, and instrument. Compare energized icons using luminance and CIE 1976 u′,v′ chromaticity under a documented method. Approve the unlit face separately as reflected object color; one Pantone or RGB value does not define both states.

What registration tolerance should be used around a backlit icon?

Use a stack-specific tolerance analysis. ±0.20 mm print-to-cut and ±0.30 mm overlay-to-assembly datum can serve only as initial starting points for an early discussion. Replace them with actual process capability, icon stroke size, datum transfer, and worst-case overlap before drawing release.

Can an illuminated control panel overlay be approved from photographs?

Photographs can document setup and appearance, but they should not be the sole approval record. Auto exposure, white balance, tone mapping, viewing geometry, and PWM aliasing can change the image. Use manual camera settings plus signed physical boundaries and defined optical measurements where the requirement is quantitative.

When should dead-front construction be avoided?

Avoid it when a legend must remain continuously visible, direct sun exceeds the available contrast margin, source geometry cannot blend point LEDs, or the power budget cannot absorb diffusion and tint losses. Permanent graphics, open translucent windows, molded light pipes, displays, or hybrid interfaces may be more tolerant.

What should be sent to an overlay supplier for the first optical build?

Send lit and unlit targets, layer-separated vector artwork, source part and layout, drive states, cavity/light-guide geometry, substrate and adhesive stack, datums, viewing conditions, initial acceptance limits, and production-intent hardware. Mark every open input and name the owner who will replace or approve it.

10. Next Step: Send Both Appearance Targets

Before requesting a finished panel, send the lit and unlit appearance targets with the actual LED board, drive states, cavity or light-guide geometry, viewing conditions, and layer-separated artwork. Ask for an optical coupon first when the tint, diffuser, or blocker is still open. Then approve an integrated sample and boundary set rather than a single attractive prototype.
