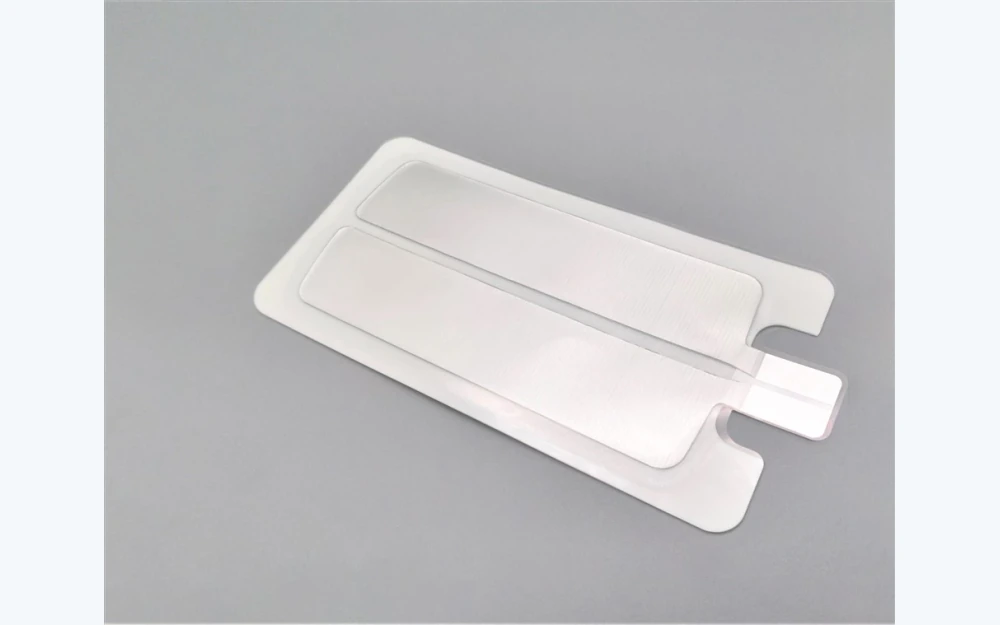

JASPER can manufacture OEM-defined printed conductive patterns and converted assembly elements for electrosurgical grounding pad programs when the functional circuit is printable. Scope may include the split or solid pattern, traces, lead or connector interface, project-specified backing, adhesive or hydrogel zones, reinforcement, liner, labels, die cutting, packaging, and agreed manufacturing inspection. JASPER does not determine patient safety, current density, power handling, monitoring compatibility, alarm behavior, placement, or finished-device compliance.
JASPER's role is limited to producing a released printed pattern and project-defined converted assembly. The OEM must supply the geometry, electrical limits, materials, interface, inspection method, monitoring architecture, use conditions, labeling, package requirements, and validation plan.
A manufacturing continuity or resistance result is not evidence of acceptable current distribution, thermal behavior, contact quality, alarm compatibility, patient safety, or finished-device compliance. Those outcomes depend on the complete electrosurgical system and must remain under OEM control.
No safety-critical value may be inferred by JASPER from a generic product name or sample appearance.
Release solid or split geometry, dimensions, gaps, traces, current-entry region, orientation, datum, tolerance, and revision.
If it is missingManufacturing changes a safety-relevant pattern that JASPER is not authorized to redesign.
Name substrate, conductor, backing, adhesive or hydrogel, foam or nonwoven, dielectric, liner, and every contact or non-contact zone.
If it is missingA substituted or shifted layer changes the OEM-validated construction.
Define lead, tab, tail, connector, attachment, reinforcement, strain direction, mating interface, and inspection.
If it is missingThe supplied interface differs mechanically or electrically from the validated system.
Provide manufacturing test method, fixture, conditioning, units, limits, sampling, records, and disposition without asking JASPER to derive safety criteria.
If it is missingA generic continuity check is mistaken for current, thermal, monitoring, or safety evidence.
Control outside profile, layer overlap, gap geometry, lead exit, die-cut tolerance, orientation, labels, and fixture datums.
If it is missingThe printed pattern and converted layers shift relative to the OEM-approved design.

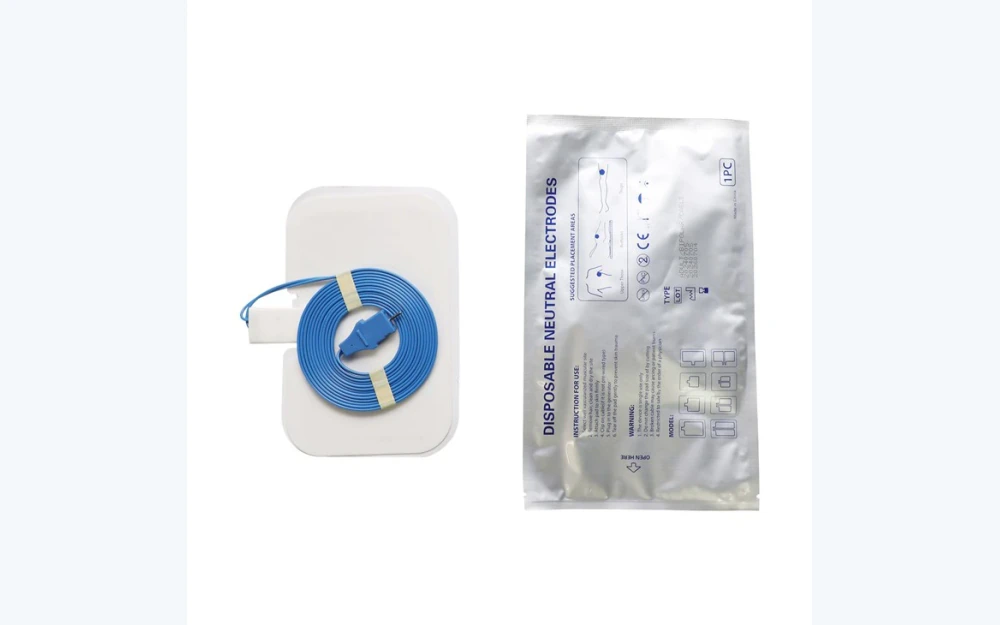

Release liner, pouch or tray, count, label, lot traceability, storage and shipment conditions, substitutions, notification, and requalification.
If it is missingAn unreviewed material, process, or package change reaches production.
The quotation must identify JASPER's manufacturing boundary and the OEM's retained safety validation.
| Boundary | OEM Inputs Required | JASPER Manufacturing Evidence |
|---|---|---|
| Printed pattern | Approved solid or split geometry, dimensions, gaps, traces, entry region, orientation, tolerance, and revision | Print appearance, geometry, registration, continuity, and agreed resistance method only |
| Material stack | Substrate, conductor, backing, adhesive or hydrogel, dielectric, foam or nonwoven, liner, supplier, and zones | Material identity, layer presence, overlap, die cut, and project-defined inspection |
| Lead interface | Lead, tail, tab, connector, attachment design, reinforcement, strain direction, mating system, and acceptance | Attachment process, orientation, dimensions, agreed pull or electrical check, and traceability |
| Electrical boundary | OEM-derived limits for manufacturing inspection plus separate system current, thermal, monitoring, and alarm validation | Only the released manufacturing test and recorded result |
| Packaging | Liner, package, label, orientation, count, storage and shipment, cleanliness, and lot requirements | Package state, identity, count, and released handling checks |
| Retained OEM validation | Placement, contact assessment, current density, power, thermal behavior, monitoring compatibility, alarms, patient safety, labeling, and compliance | No claim or inference from JASPER manufacturing evidence |
The OEM drawing must own every solid or split region, gap, trace, entry zone, edge margin, material opening, lead transition, and tolerance. JASPER can review printability and converting risk but cannot choose safety-critical geometry or acceptance limits.
Manufacturing evidence should trace the released pattern, material lots, lead or connector, converting datums, electrical method, labels, and package. Traceability supports OEM investigation and requalification but does not establish finished-device safety.
Confirm the OEM owns geometry, limits, materials, use, monitoring, alarms, patient safety, labeling, compliance, and system validation.
Check artwork resolution, traces, gaps, datums, material compatibility, converting access, and inspection feasibility without redesigning function.
Lock pattern, materials, lead interface, converted zones, die cut, test method, package, traceability, and change control.
Provide manufactured samples and records for the OEM's complete electrical, thermal, monitoring, use, safety, and regulatory evaluation.
Build only to released revisions and notify the OEM before approved materials, process, interface, inspection, or package changes.
Stop release and obtain controlled OEM artwork, dimensions, datums, tolerance, revision, and written disposition.
Request the OEM manufacturing test method and limits; do not derive them from a sample, product label, or generic standard.
Require OEM evaluation and written release before changing substrate, conductor, adhesive or hydrogel, backing, liner, lead, or package.
Return current, thermal, monitoring, alarm, placement, patient safety, and finished-system compatibility decisions to the OEM.
Printed-pattern and converting support after the OEM has released the complete architecture and validation plan.
Sample builds used by the OEM to compare a controlled manufacturing source without changing design ownership.
Reproduction of released artwork, materials, interface, inspection, package, and traceability under OEM approval.
Manufacturability samples for OEM evaluation before any finished-device conclusion.
Controlled samples produced only to an OEM test plan and change authorization.
Printed geometries supplied for customer-controlled laboratory and system validation.
JASPER will quote only the released manufacturing and converting boundary.
No. JASPER can review manufacturability of an OEM-approved printed pattern and converted stack. Safety architecture, geometry, electrical and thermal limits, monitoring, alarms, placement, patient use, and compliance must remain with the OEM.
They can be manufactured when the OEM releases controlled artwork, dimensions, gaps, traces, materials, interface, tolerances, manufacturing tests, and validation ownership.
No. It only records the released manufacturing measurement. It does not prove current density, power handling, thermal behavior, monitoring compatibility, contact quality, alarm response, patient safety, or finished-device compliance.
Not without the OEM's written evaluation and release. Material identity, approved alternatives, notification, samples, and requalification triggers must be part of change control.
The OEM must validate the complete return-electrode and electrosurgical system, including pattern function, current and thermal behavior, monitoring and alarms, placement, use instructions, patient safety, packaging, shelf life, biocompatibility, and regulatory compliance.
