Membrane Keypads

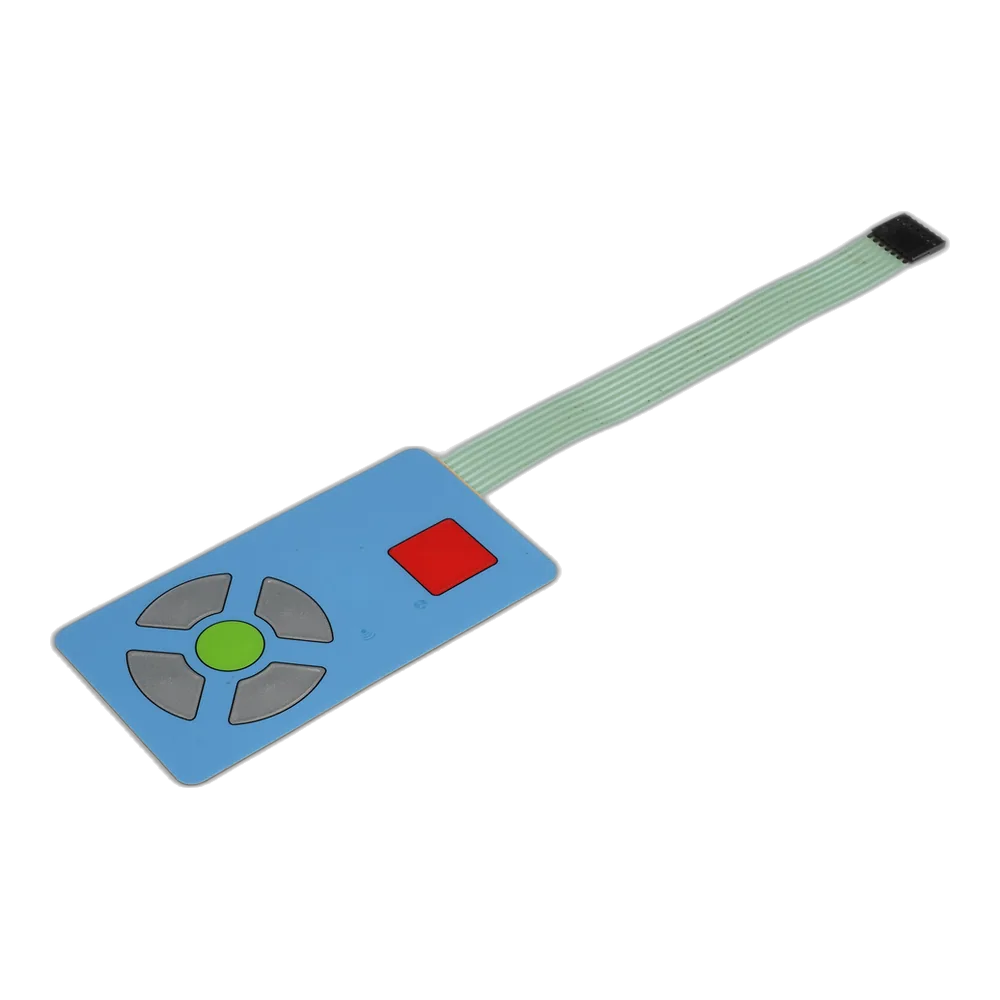

A membrane keypad is a membrane switch layout where the user experience depends heavily on key spacing, embossing, tactile feedback, and legend durability. It is not just a flat label with contacts underneath.
- operator panels with repeated key presses
- test equipment and instruments with labeled function keys
- appliances that need sealed controls without mechanical buttons
- compact controllers where each millimeter of stack height matters
Engineering reference
When this product fits
A membrane keypad is a membrane switch layout where the user experience depends heavily on key spacing, embossing, tactile feedback, and legend durability. It is not just a flat label with contacts underneath.
- operator panels with repeated key presses
- test equipment and instruments with labeled function keys
- appliances that need sealed controls without mechanical buttons
- compact controllers where each millimeter of stack height matters
Engineering reference
Engineering notes before tooling
Embossing improves key location, but aggressive embossing can shorten overlay life if the radius is too sharp.
Key pitch should consider glove use, not only artwork balance.
For high-use keys, confirm actuation force and dome life cycle in the sample stage.
If the keypad mounts to a curved surface, share the housing model early. Flat artwork approval is not enough.
Engineering reference
Common failure points
small legends placed over dome flex zones
keys too close to display windows
insufficient spacer relief around large keys
unverified adhesive on textured plastic
Engineering reference
What to send for RFQ
Engineering reference
Related design guidance
FAQ
Questions buyers usually ask
What affects the cost of membrane keypads?
Main drivers include material, printed colors, tooling, dome or LED count, connector, adhesive stack, test requirement, and order quantity.
What should be tested at sample stage?
Check continuity, appearance, actuation feel, tail bend, adhesive fit, window clarity, LED visibility, and any IP or cleaning requirement in the real enclosure.
When is this design not recommended?
It is not recommended when the required travel, current load, serviceability, temperature, or mechanical abuse exceeds what a thin interface stack can handle.
RFQ support
Send a drawing before the design is locked.
For membrane keypads, the useful review happens before tail exit, connector, adhesive, and artwork decisions become expensive to change.
